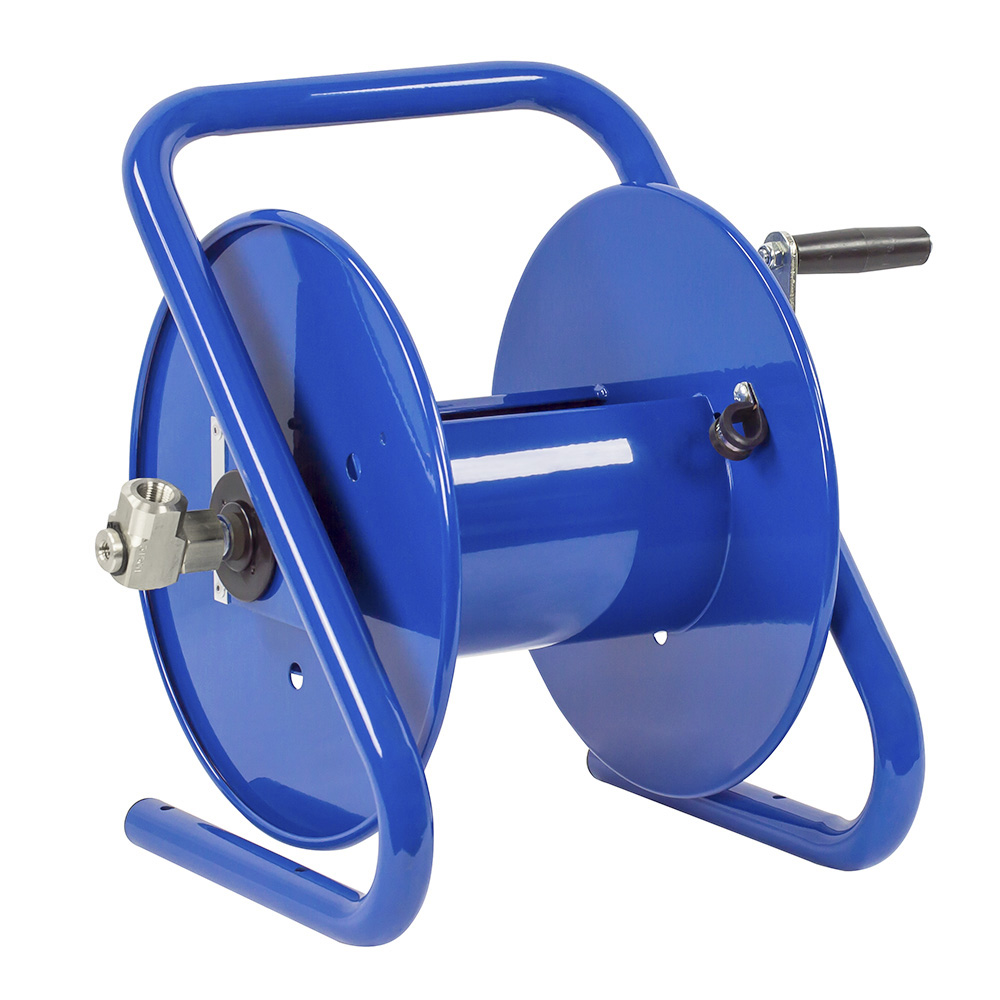

COXREELS 112-3-100-CM Hand Crank Hose Reel, 3/8 Inch Inner Dia., 100 Feet Length
Get it by Friday, Aug 28
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€433.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Application | Air, Water, Oil, Washdown, Pressure Washing, Agricultural Spraying, Chemical Fluid Transfer |
| Base Motion Type | Stationary |
| Base Size | 11.5" x 10.63" |
| Bearing Construction | EPDM |
| Bearing Type | EPDM Bearings |
| Color | Blue |
| Drive Type | Hand Crank |
| Duty Rating | Medium Duty |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | U Shaped Frame Design, Adjustable Tension Brake, Cnc Spun Discs, Heavy Duty Steel Construction, Lightweight |
| Finish | Powder Coated |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 14 3/4" |
| Hose Capacity | 100 ft. |
| Hose Included | No |
| Hose Inside Dia. | 3/8" |
| Hose Length | 100 ft. |
| Hose Outlet (in.) | 3/8" (M)NPT |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water |
| Hose Reel Type | Caddy Mount Hose Reel |
| Housing Material | Steel |
| Included Gooseneck | No |
| Included Leader Hose | No |
| Length | 13 1/8" |
| Material | Steel |
| Max. Operating Temp. | 225°F |
| Max. Pressure | 4000 psi |
| Max. Pressure Rating | 4000 psi |
| Min. Operating Temp. | -40°F |
| Mount Base Height | 10 5/8" |
| Mount Base Width | 11 1/2" |
| Mounting Hole Center To Center Height | 3" |
| Mounting Size | 10.5" x 5.25" |
| No. Of Mount Holes | 4 |
| No. Of Mounting Holes | 4 |
| Not Included | Hose |
| Overall Height | 14 3/4" |
| Overall Length | 13 1/8" |
| Overall Width | 18 1/2" |
| Reel Dia. | 5 1/2" |
| Reel Material | Steel |
| Reel Width | 8" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Material | Solid Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8" |
| Swivel Outlet Type | NPT |
| Width | 18 1/2" |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 33.35 |
| Ship width (cm) | 46.99 |
| HS code | 0674255800069 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Mounting Size | Overall Width | Base Size | Hose Inside Dia. | Height | Hose Capacity | Mount Base Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
117-4-225-CM | 18 1/2" | 10.5" x 5.25" | 23" | 16" x 12.63" | 1/2" | 18 1/2" | 225 ft. | 12 5/8" | €478.22 | |
 |
112P-3-8-CM | 13" | 5.5" x 3" | 18 1/2" | 9.5" x 6" | 3/8" | - | - | - | €466.62 |
