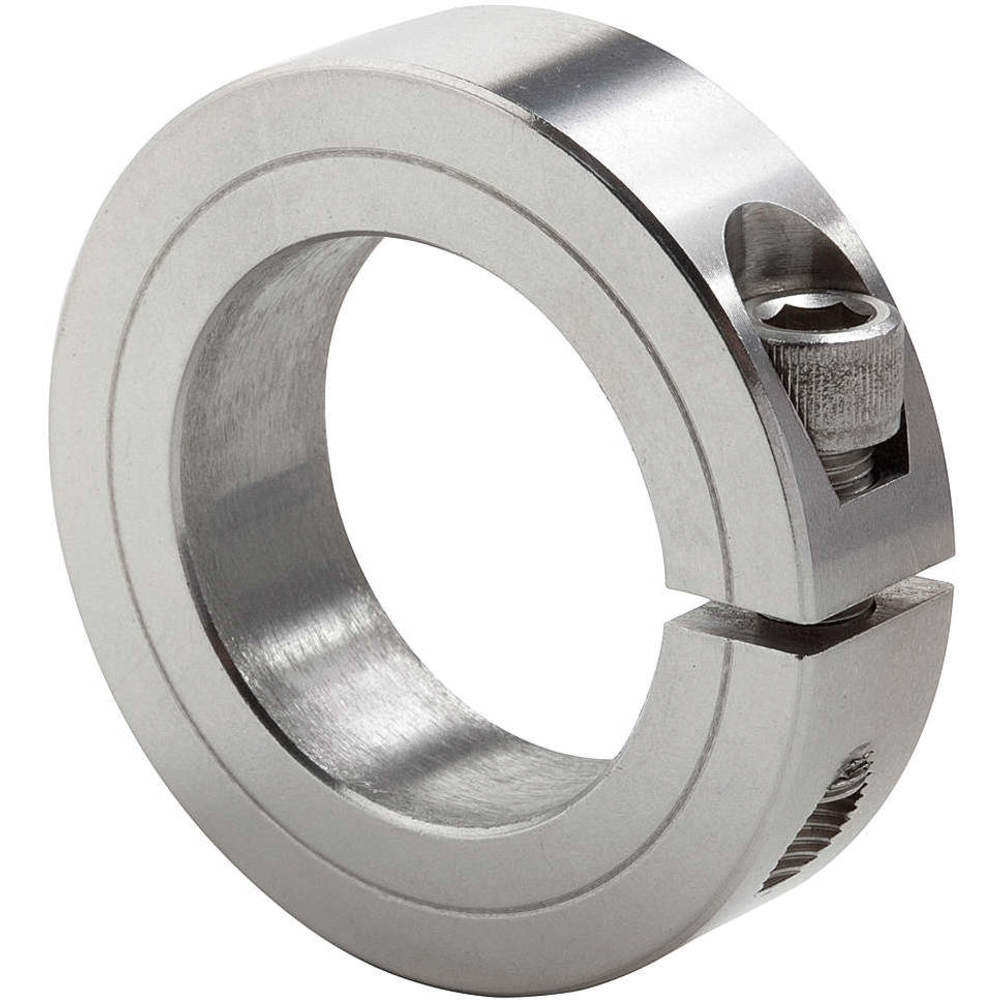

CLIMAX METAL PRODUCTS 1C-237-S Shaft Collar Clamp 1 Piece 2-3/8 Inch Stainless Steel
Item: AF8ZCGModel: 1C-237-SCross Ref: 29NV96
7 In Stock
Ships within 2 days via
10.00% off
€297.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 2 3/8" |
| Bore Tolerance | 0" to 0.003" |
| Clearance Dia. | 3 3/4" |
| Clearance Diameter | 3.75" |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 3 1/2" |
| Collar Style | Clamp |
| Collar Width | 3/4" |
| Dimension Type | Standard |
| For Shaft Diameter | 2 3/8" |
| For Shaft Type | Round |
| Included Screws | (1) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +800°F |
| Outside Dia. | 3 1/2" |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 1" |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 304 |
| Screw Seating Torque | 200 lbs.-in. |
| Screw Thread Size | 5/16"-24 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Width | 3/4" |
| Width Tolerance | -0.005" to +0.005" |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.89 |
| HS code | 8487900080 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Collar Material | Bore Dia. | Material | Screw Material | Operating Temp. Range | Clearance Dia. | Screw Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1C-093 | 1 3/4" | Carbon Steel | 0.938" | Steel | Carbon Steel | 0°F to +300°F | 2.062" | 5/8" | €19.51 | |
| 1C-100 | 1 3/4" | Carbon Steel | 1" | Steel | Carbon Steel | 0°F to +300°F | 2.062" | 5/8" | €18.35 | |
| 1C-012-S | 0.688" | Stainless Steel | - | Stainless Steel | Stainless Steel | -40°F to +800°F | 7/8" | 3/8" | €20.66 | |
| 1C-018-S | 0.688" | Stainless Steel | 0.188" | Stainless Steel | Stainless Steel | -40°F to +800°F | 7/8" | 3/8" | €20.48 | |
| 1C-025-S | 0.688" | Stainless Steel | 1/4" | Stainless Steel | Stainless Steel | -40°F to +800°F | 7/8" | 3/8" | €19.99 | |
| 1C-031-S | 0.688" | Stainless Steel | 0.312" | Stainless Steel | Stainless Steel | -40°F to +800°F | 7/8" | 3/8" | €19.64 | |
| 1C-037-S | 7/8" | Stainless Steel | - | Stainless Steel | Stainless Steel | -40°F to +800°F | 1.062" | 3/8" | €24.32 |
