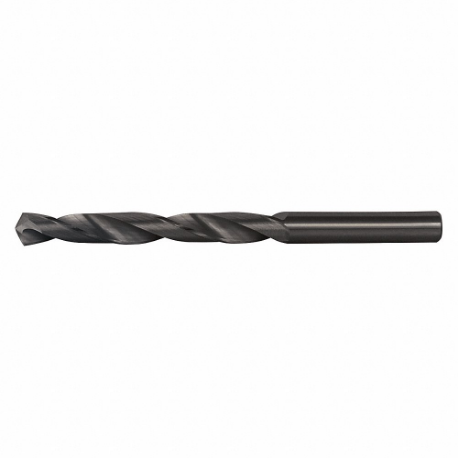

CLEVELAND C89580 1727 Jobber Length Drill Bit, F Size, 3-1/4 Inch Overall Length
Item: CQ9LZDModel: C89580Cross Ref: 60GZ97 / 1727
7 In Stock
Ships within 2 days via
10.00% off
€93.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.257 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | 4 Facet |
| Drill Bit Size | F |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2" |
| Flute Type | Slow Spiral |
| Helix Angle | +10° to +20° |
| List Number | 1727 |
| Material | Carbide |
| Material - Machining | Carbide |
| Max. Drilling Depth | 1 1/2" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 1/4" |
| Point Angle | 118° |
| Point Type | Facet |
| Primary Material Application | Aluminum And Non Ferrous Material, Cast Iron |
| Primary Material Application Iso Code | K, N |
| Secondary Material Application Iso Code | M, P |
| Shank Dia. | 1/4" |
| Shank Length | 1 1/4" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | F |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Max. Drilling Depth | Flute Length | Shank Dia. | Overall Length | Flute Type | Drill Bit Size | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C89573 | 0.228 | 1.312" | 1 3/4" | 0.219" | 3" | Slow Spiral | #1 | 4 Facet | €59.76 | |

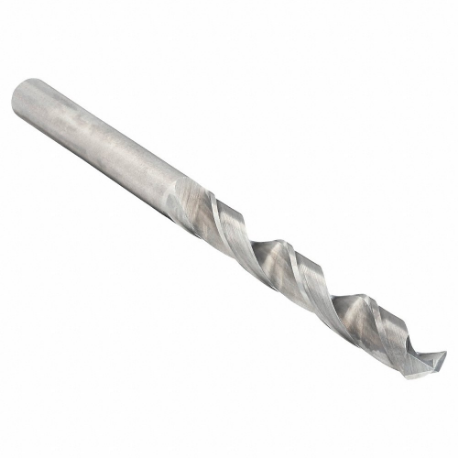

| C47618 | 0.1935 | 1 7/32" | 1 5/8" | 0.188" | 2 3/4" | Slow Spiral | - | - | €75.65 | |
| C89561 | 0.191 | 1 7/32" | - | 0.188" | 2 3/4" | Slow Spiral | #11 | 4 Facet | €55.20 | |
| C89560 | 0.189 | 1.219" | 1 5/8" | 0.188" | 2 3/4" | Slow Spiral | #12 | 4 Facet | €52.28 | |
| C89558 | 0.185 | 1 7/32" | 1 5/8" | 0.172" | 2 3/4" | Slow Spiral | #13 | 4 Facet | €54.68 | |
| C89557 | 0.182 | 1 7/32" | 1 5/8" | 0.172" | 2 3/4" | Slow Spiral | #14 | 4 Facet | €53.52 | |
| C89556 | 0.18 | 1 7/32" | 1 5/8" | 0.172" | 2 3/4" | Slow Spiral | #15 | 4 Facet | €51.21 |
