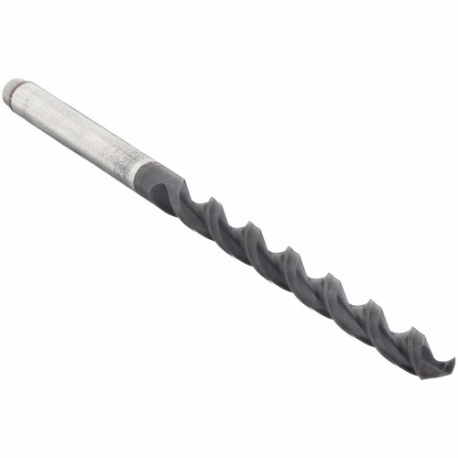

CLEVELAND C16973 2075 Jobber Length Drill Bit, 5/64 Inch Size Size, 2 Inch Overall Length
Item: CQ9LLGModel: C16973Cross Ref: 2VTR7 / 2075
7 In Stock
Ships within 2 days via
5.00% off
€19.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | For Chilled Cast Iron, High Speed Steel, High-Strength Alloy Steel, Stainless Steel And Tool Steels |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0781 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5/64" |
| Drill Dia. Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0162" |
| Finish | Titanium Aluminum Nitride Coating |
| Finish-machining | TiAlN |
| Flute Length | 1" |
| Flute Type | Parabolic |
| Grade | High Performance |
| Helix Angle | +35° to +45° |
| Left/right Hand | Right |
| Material | Cobalt |
| Material Grade-machining | Grade M42 |
| Material-machining | Cobalt |
| Max. Drilling Depth | 3/4" |
| Mfr. Series | 2075-TA Series |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 2" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Stainless Steel |
| Primary Material Application Iso Code | K, M |
| Shank Dia. | 0.062" , 1/16" |
| Shank Length | 1" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | 0.078" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Drilling Depth | Shank Dia. | Decimal Equivalent | Flute Length | Flute Type | Cutting Direction | Overall Length | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C15577 | 2.969" | 0.469" | 0.4823 | 101 mm | - | Right Hand | 151 mm | 12.25 mm | €117.67 | |
 |
C16612 | 1.969" | 0.219" | 0.228 | 2 5/8" | Parabolic | Right Hand | 3 7/8" | #1 | €44.05 | |
 |
C11401 | 1 31/32" | 0.219" | 0.228 | 2 5/8" | Parabolic | Right Hand | 3 7/8" | #1 | €53.40 | |
 |
C70134 | 1.969" | 0.219" | 0.228 | 2 5/8" | Spiral | Right Hand | 3 7/8" | #1 | €15.18 | |
|
C70143 | 1 13/16" | 3/16" | 0.1935 | 2 7/16" | Spiral | - | 3 5/8" | #10 | €11.78 | |
 |
C15940 | 7/8" | 3/16" | 0.1935 | 1 3/16" | Spiral | Right Hand | 3 5/8" | #10 | €12.68 | |
|
C16621 | 1.812" | 3/16" | 0.1935 | 2 7/16" | Parabolic | Right Hand | 3 5/8" | #10 | €36.37 |
