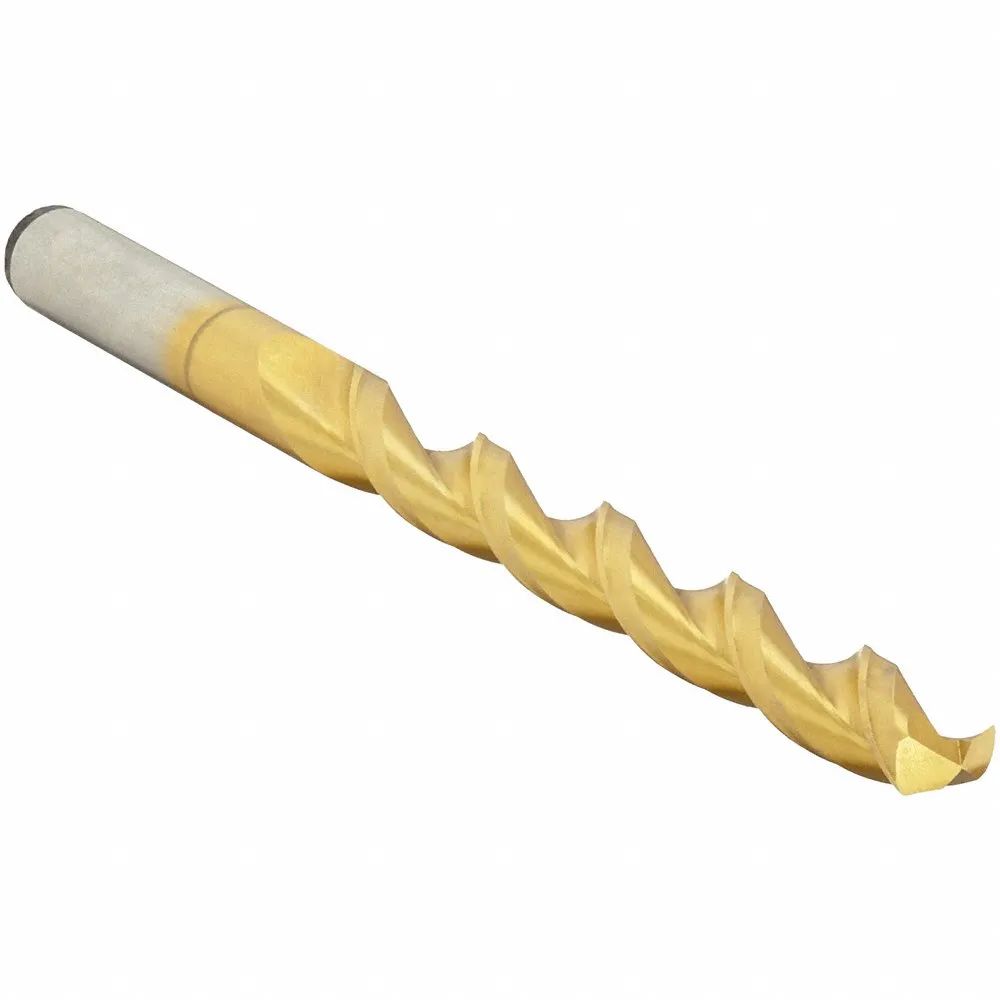

CLEVELAND C16704 Jobber Length Drill Bit, 5.20mm Drill Bit Size, 52.00mm Flute Length
Get it by Tuesday, Dec 23
€20.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.2047 |
| Depthdia. Ratio | 10xd |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5.2 mm |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0424 mm |
| Finish - Machining | Tin |
| Flute Length | 52 mm |
| Flute Type | Parabolic |
| Helix Angle | 35° to 45° |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Maximum Drilling Depth | 1 17/32" |
| Measurement System | Metric |
| Number Of Flutes | 2 |
| Overall Length | 86 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Series | 2075-TN Series |
| Shank Diameter | 5.2 mm |
| Shank Length | 34 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship length (cm) | 8.6 |
| Country of Origin | US |
