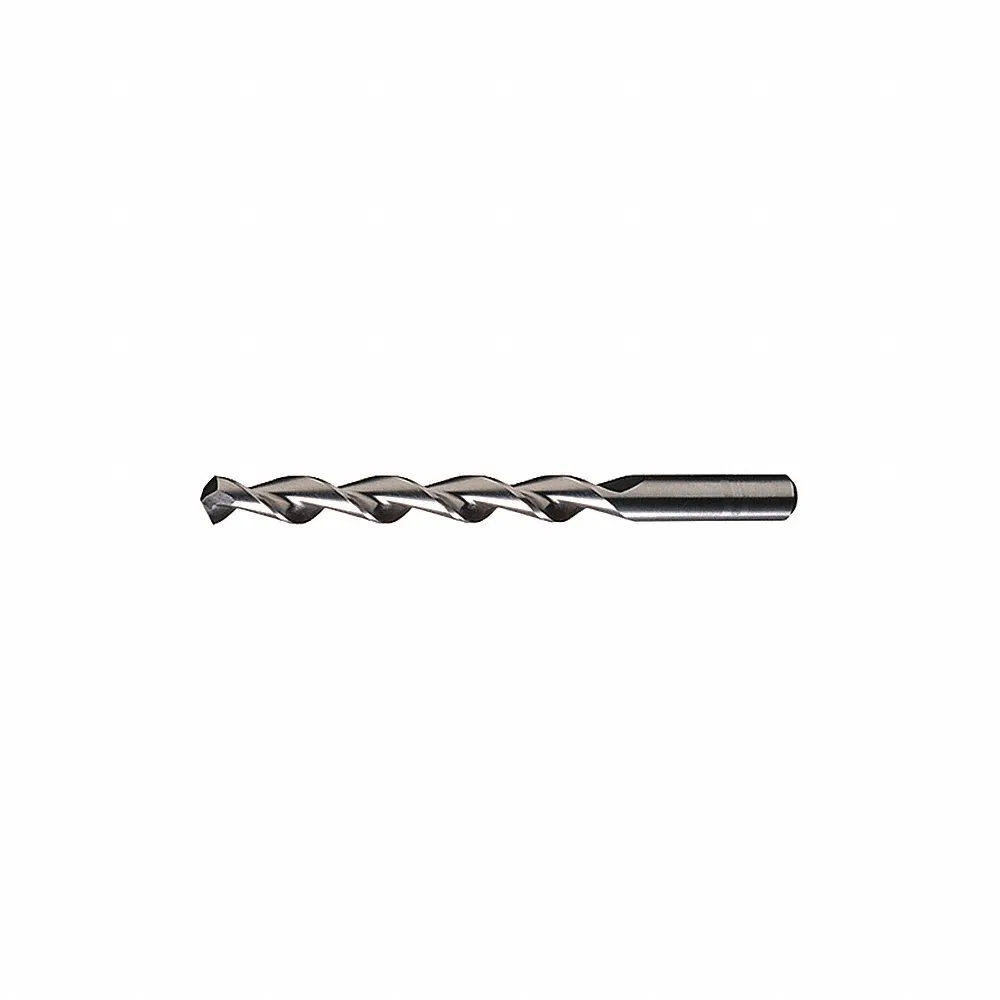

CLEVELAND C16176 Jobber Length Drill Bit, #9 Drill Bit Size, 2-7/16 Inch Flute Length
Item: CX7JKNModel: C16176Cross Ref: 435C83
7 In Stock
Ships within 2 days via
10.00% off
€11.64 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Copper Alloys, Free-Mach Stainless |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.196 |
| Depthdia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #9 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0589" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 7/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | +35° to +45° |
| List Number | 2065 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 13/16" |
| Measurement System | Wire |
| No. Of Pieces | 0 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 5/8" |
| Primary Material Application | Aluminum And Non Ferrous Material |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Stainless Steel, Steel |
| Secondary Material Application Iso Code | M, P |
| Series | 2065 Series |
| Shank Length | 1 3/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
