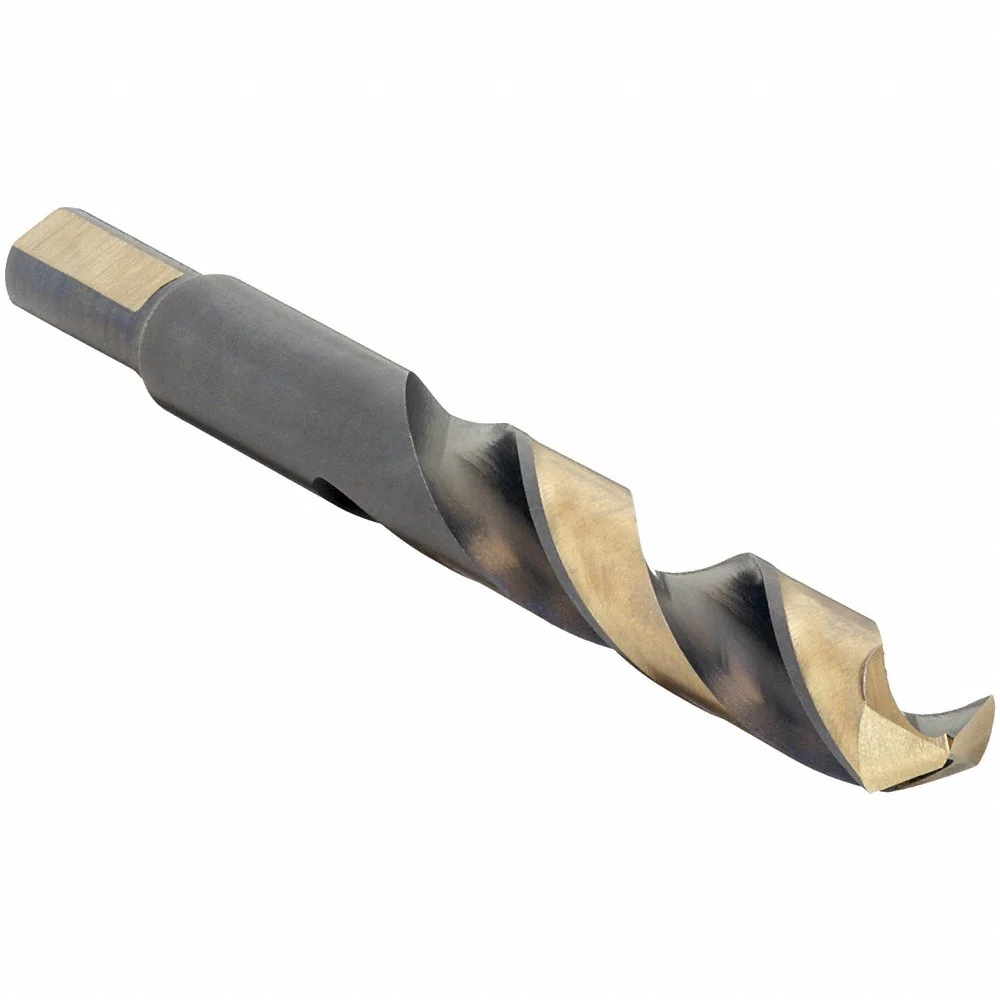

CLE-LINE C23861 Reduced Shank Drill Bit, 7/16 Inch Size, 4 1/2 Inch Overall Length
Item: CQ9CCYModel: C23861Cross Ref: 4GB97
7 In Stock
Ships within 2 days via
10.00% off
€19.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Application | For Alloy, Stainless And Tool Steels And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4375 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 7/16" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2 15/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| List Number | 1876 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Max. Drilling Depth | 1 3/4" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 4 1/2" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1/2" |
| Shank Length | 1" |
| Shank Type | Straight With Three Flats |
| Shank Type - Machining | Straight With Three Flats |
| Silver & Deming Drill | Yes |
| Size | 0.438" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Length | Overall Length | Shank Dia. | Decimal Equivalent | Finish | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C20696 | 3 1/8" | 6" | 1/2" | 1.0625 | Black Oxide | 1 1/16" | 118° | Conventional Point | €98.42 | |
 |
C17094 | 3 1/8" | 6" | 1/2" | 1.5 | Black Oxide | 1 1/2" | 118° | Split Point | €269.55 | |
 |
C20730 | 79.38 mm | 6" | 1/2" | 1.0039 | - | 1 1/32" | 118° | Conventional Point | €107.35 | |
|
C17078 | 3 1/8" | 6" | 1/2" | 1.25 | Black Oxide | 1 1/4" | 118° | Split Point | €161.99 | |
|
C20699 | 3 1/8" | 6" | 1/2" | - | Black Oxide | 1 1/4" | 118° | Conventional Point | €126.06 | |
|
C20697 | 3 1/8" | 6" | 1/2" | 1.125 | Black Oxide | 1 1/8" | 118° | Conventional Point | €103.92 | |
|
C17070 | 3 1/8" | 6" | 1/2" | 1.125 | Black Oxide | 1 1/8" | 118° | Split Point | €127.74 |
