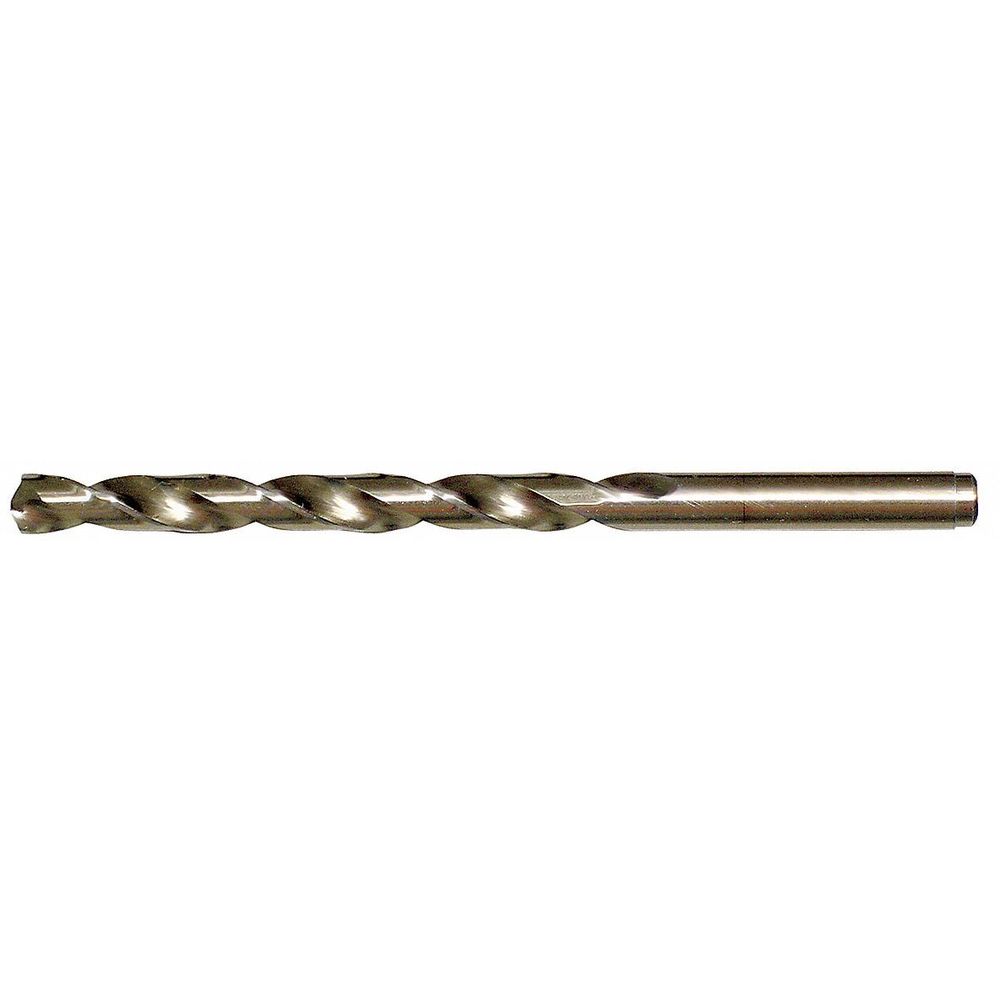

CLE-LINE C23361 Jobber Drill Bit, 5/16 Inch, Straw/Bronze
Item: CD2HEVModel: C23361Cross Ref: 4AC80
7 In Stock
Ships within 2 days via
10.00% off
€13.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate, Inconel |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3125 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5/16" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0647" |
| Finish - Machining | Straw, Bronze |
| Flute Length | 3 3/16" |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| List Number | 1802 |
| Material - Machining | Cobalt |
| Maximum Drilling Depth | 2 3/8" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Primary Material Application | Steel, Cast Iron, Aluminum And Non Ferrous Material, Hi Temp Alloy, Hardened Steel |
| Primary Material Application Iso Code | H, K, N, P, S |
| Product Datasheet | cle-line-c23361.pdf |
| Series | 1802 Series |
| Shank Diameter | 5/16" |
| Shank Length | 1 5/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 0.312" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Decimal Equivalent | Material | Overall Length | Flute Length | Drill Bit Size | Shank Dia. | Max. Drilling Depth | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C18113 | 0.04 | High Speed Steel | 1 5/8" | 11/16" | #60 | 1/25" | 1/2" | 15/16" | €2.54 | |
| C18112 | 0.041 | High Speed Steel | - | 11/16" | #59 | 0.041" | 1/2" | 15/16" | €2.71 | |
| C18111 | 0.042 | High Speed Steel | 1 5/8" | 11/16" | #58 | - | 1/2" | 15/16" | €2.71 | |
| C18110 | - | High Speed Steel | 1 3/4" | 3/4" | #57 | 0.043" | 9/16" | 1" | €2.78 | |
| C18109 | 0.0465 | High Speed Steel | 1 3/4" | 3/4" | #56 | 0.046" | 9/16" | 1" | €2.78 | |
| C18108 | 0.052" | High Speed Steel | 1 7/8" | 7/8" | - | 0.052" | 21/32" | - | €2.78 | |
| C18107 | 0.055 | High Speed Steel | 1 7/8" | 7/8" | #54 | 0.055" | 21/32" | 1" | €2.78 |
