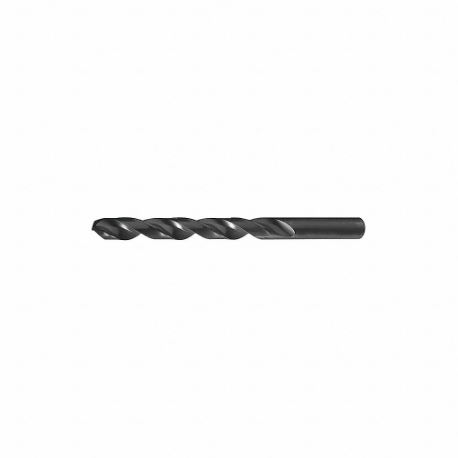

CLE-LINE C23116 Jobber Length Drill Bit, R Drill Bit Size, 4-3/4 Inch Overall Length | CQ9BLG 50CM50

CLE-LINE C23116 Jobber Length Drill Bit, R Size, 4-3/4 Inch Overall Length

Item: CQ9BLGModel: C23116Cross Ref: 50CM50
7 In Stock

Ships within 2 days via

€10.59
10.00% off
€9.53 /unit
This product can only be shipped in multiples of 6
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non-Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.339
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Letter
Drill Bit Finish Black Oxide
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size R
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0"
Finish Black Oxide
Finish - Machining Black Oxide
Flute Length 3 7/16"
Flute Type Spiral
Helix Angle +21° to +34°
List Number 1801
Material High Speed Steel
Material - Machining High Speed Steel
Max. Drilling Depth 2 9/16"
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 4 3/4"
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 1801 Series
Shank Length 1 5/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size R
Spiral Direction Right Hand
System Of Measurement Letter
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelFlute TypeCoolant FedCutting DirectionOverall LengthDecimal EquivalentFlute LengthMax. Drilling DepthDrill Bit SizePrice
CLE-LINE C74056 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8ZLA 407H14 C74056SpiralNon-Coolant ThroughRight Hand142 mm0.464694 mm-11.8 mm€20.88
CLE-LINE C24371 Jobber Drill, 10.20 mm Drill Bit Size, 87 mm Flute Length | CQ8ZLB 50CP70 C24371SpiralNon-Coolant ThroughRight Hand133 mm0.401687 mm2 9/16"10.2 mm€26.64
CLE-LINE C24373 Jobber Drill, 10.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLC 50CP72 C24373SpiralNon-Coolant ThroughRight Hand142 mm0.4252-2.766"10.8 mm€28.27
CLE-LINE C24376 Jobber Drill, 11.80 mm Drill Bit Size, 94 mm Flute Length | CQ8ZLD 50CP75 C24376SpiralNon-Coolant ThroughRight Hand-0.464694 mm2 49/64"11.8 mm€36.01
CLE-LINE C62911 Jobber Drill, 13.20 mm Drill Bit Size, 101 mm Flute Length | CQ8ZLE 50AT26 C62911SpiralNon-Coolant ThroughRight Hand151 mm0.5197101 mm2.969"13.2 mm€41.29
CLE-LINE C24329 Jobber Drill, 2.30 mm Drill Bit Size, 27 mm Flute Length | CQ8ZLF 50CK80 C24329SpiralNon-Coolant ThroughRight Hand53 mm0.090627 mm51/64"2.3 mm€5.51
CLE-LINE C24330 Jobber Drill, 2.40 mm Drill Bit Size, 30 mm Flute Length | CQ8ZLG 50CK81 C24330SpiralNon-Coolant Through-57 mm0.094530 mm7/8"2.4 mm€5.67
