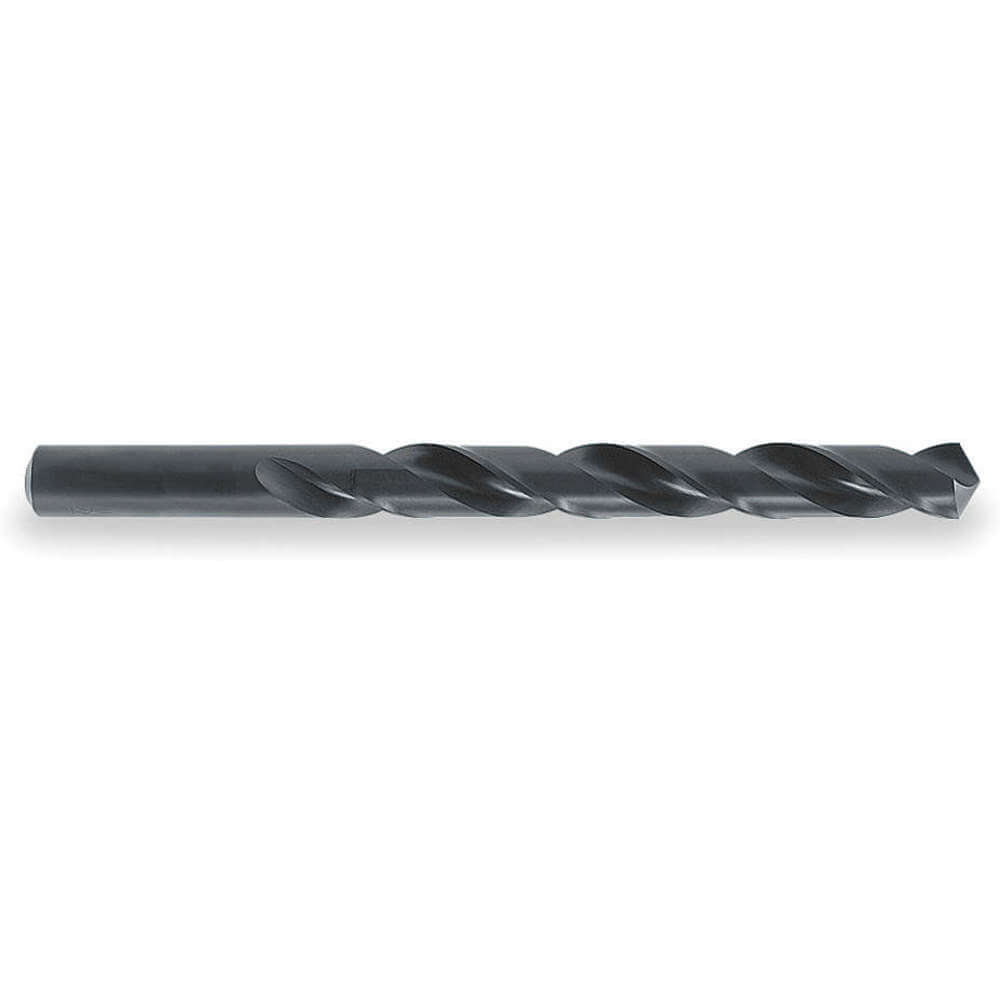

CLE-LINE C22723 Jobber Bit G High Speed Steel
Item: AD6TVJModel: C22723Cross Ref: 4AH29
7 In Stock
Ships within 2 days via
10.00% off
€5.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.261 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Letter |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | G |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2 7/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| List Number | 1899 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 2 5/32" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 4 1/8" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Product Datasheet | cle-line-c22723.pdf |
| Series | 1899 Series |
| Shank Dia. | 0.261" |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | G |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 0.76 |
| HS code | 8207504030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Decimal Equivalent | Shank Dia. | Overall Length | Flute Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C22643 | 0.031" | 0.031" | 1 3/8" | 1/2" | - | - | - | 3/8" | €2.48 | |
| C22644 | 0.0469 | 0.047" | 1 3/4" | 3/4" | 3/64" | 118° | Conventional Point | 9/16" | €2.31 | |
| C22715 | 0.228 | 0.228" | 3 7/8" | 2 5/8" | #1 | 118° | Conventional Point | 1 31/32" | €4.32 | |
| C22714 | 0.221 | 0.221" | 3 7/8" | 2 5/8" | #2 | 118° | Conventional Point | - | €4.32 | |
| C22712 | 0.213 | 0.213" | 3 3/4" | 2 1/2" | #3 | 118° | Conventional Point | 1 7/8" | €4.32 | |
| C22711 | 0.209 | 0.209" | 3 3/4" | 2 1/2" | #4 | 118° | Conventional Point | - | €4.32 | |
| C22710 | 0.2055 | 0.205" | 3 3/4" | 2 1/2" | #5 | 118° | Conventional Point | - | €4.32 |
