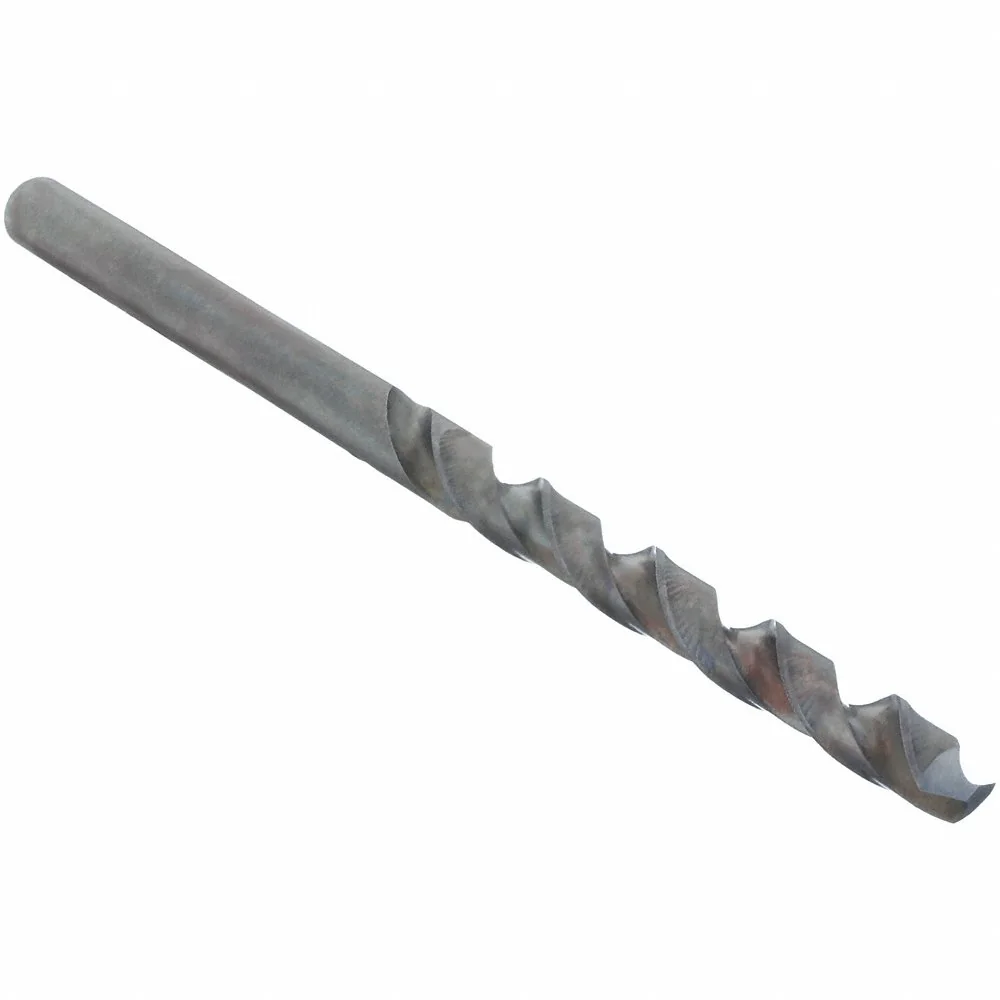

CLE-LINE C22644 Jobber Length Drill Bit, 3/64 Inch Drill Size, 1-3/4 Inch Overall Length, 118 deg Radial Point, HSS, Black Oxide
Item: AA9AMXModel: C22644Cross Ref: 1BR77
7 In Stock
3/64"
Ships within 2 days via
5.00% off
€2.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0469 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 3/64" |
| Drill Dia. Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0141" |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 3/4" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 1899 |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 9/16" |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 1 3/4" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 1899 Series |
| Shank Dia. | 0.047" |
| Shank Length | 1" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.25 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 5.84 |
| HS code | 8207504060 |
| Country of Origin | US |
Product Variants
| Model | Max. Drilling Depth | Shank Length | Flute Length | Drill Bit Size | Drill Dia. Tolerance | Size | Grade | Drill Bit Dimension Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C22643 | 3/8" | 7/8" | 1/2" | - | - | - | General Purpose | Fractional Inch | €2.48 | |
| C22715 | 1 31/32" | 1 1/4" | 2 5/8" | #1 | -0" to +0.0007" | #1 | General Purpose | Wire | €4.32 | |
| C22714 | 1 31/32" | 1 1/4" | 2 5/8" | #2 | -0" to +0.0007" | #2 | General Purpose | Wire | €4.32 | |
| C22712 | 1 7/8" | 1 1/4" | 2 1/2" | #3 | -0" to +0.0007" | #3 | General Purpose | Wire | €4.32 | |
| C22711 | 1 7/8" | 1 1/4" | 2 1/2" | #4 | -0" to +0.0007" | #4 | General Purpose | Wire | €4.32 | |
| C22710 | 1 7/8" | 1 1/4" | 2 1/2" | #5 | -0" to +0.0007" | #5 | General Purpose | Wire | €4.32 | |
| C22709 | 1 7/8" | 1 1/4" | 2 1/2" | #6 | -0" to +0.0007" | #6 | General Purpose | Wire | €4.32 |
