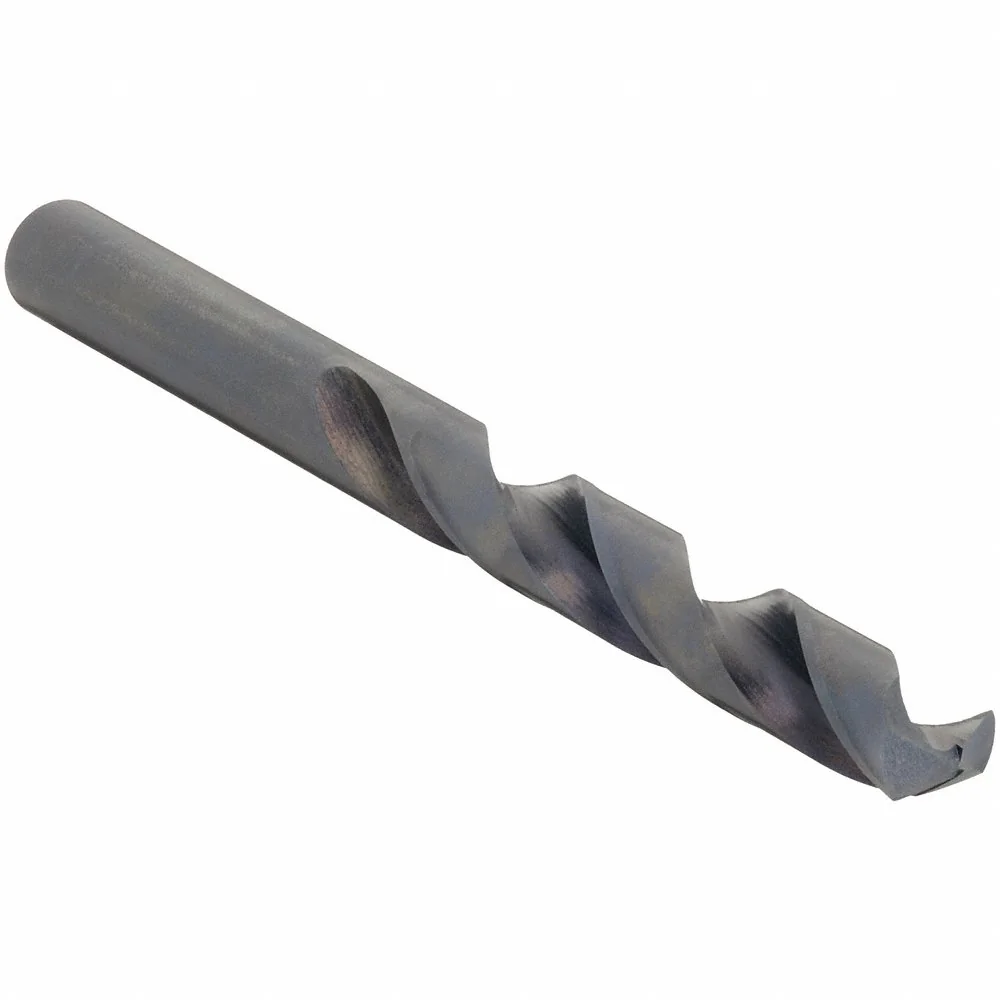

CLE-LINE C18995 Jobber Length Drill Bit, 11.50 mm Size, 142 mm Overall Length
Item: CQ9AGFModel: C18995Cross Ref: 53PR46
7 In Stock
Ships within 2 days via
10.00% off
€25.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4528 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 11.5 mm |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0938 mm |
| Finish | Straw, Bronze |
| Finish - Machining | Straw, Bronze |
| Flute Length | 94 mm |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| List Number | 1802 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 2 49/64" |
| Number Of Flutes | 2 |
| Overall Length | 142 mm |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel, Aluminum And Non Ferrous Material, High Temperature Alloy, Hardened Steel |
| Primary Material Application Iso Code | H, K, N, P, S |
| Series | 1891 Series |
| Shank Dia. | 11.5 mm |
| Shank Length | 48 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 11.5 mm |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Max. Drilling Depth | Decimal Equivalent | Finish | Material | Coolant Fed | Overall Length | Flute Length | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C66055 | 1 31/32" | 0.228 | Tin | Cobalt High Speed Steel | Non-Coolant Through | 3 7/8" | 2 5/8" | 0.219" | €8.08 | |
| C23433 | 1.969" | 0.228 | Straw, Bronze | Cobalt | Non-Coolant Through | 3 7/8" | 2 5/8" | 0.219" | €9.87 | |
| C66064 | 1.812" | 0.1935 | Tin | - | Non-Coolant Through | - | 2 7/16" | - | €5.83 | |
| C23424 | 1 13/16" | 0.1935 | Straw, Bronze | Cobalt | Non-Coolant Through | 3 5/8" | 2 7/16" | 0.188" | €7.56 | |
| C66065 | 1.734" | 0.191 | Tin | Cobalt High Speed Steel | Non-Coolant Through | 3 1/2" | 2 5/16" | 0.188" | €5.83 | |
| C23423 | 1 47/64" | 0.191 | Straw, Bronze | Cobalt | - | 3 1/2" | 2 5/16" | 0.188" | €7.75 | |
| C66066 | 1 47/64" | 0.189 | Tin | Cobalt High Speed Steel | - | 3 1/2" | 2 5/16" | 0.188" | €5.71 |
