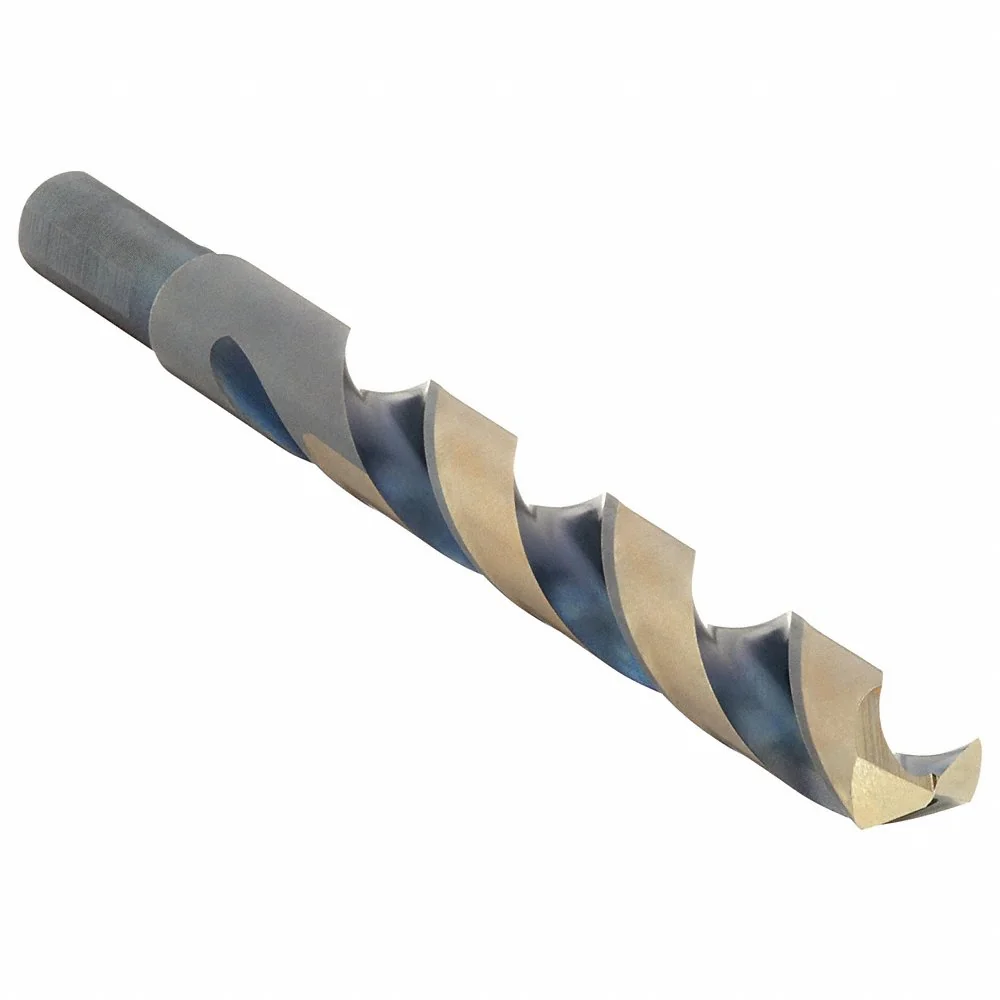

CLE-LINE C18114 Jobber Bit 25/64in High Speed Steel
Item: AB6WJBModel: C18114Cross Ref: 22N454
7 In Stock
Ships within 2 days via
10.00% off
€13.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Application | Stainless Ssteel, Tool Steel, Alloy Steel, Cast Iron |
| Color | Black, Gold |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3906 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 25/64" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Finish - Machining | Black Oxide |
| Flute Length | 3 3/4" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 1878 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 9/16" |
| Number Of Flutes | 2 |
| Overall Length | 5 1/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 3/8" |
| Shank Length | 1" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 0.51 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Flute Length | Overall Length | Drill Bit Size | Shank Dia. | Max. Drilling Depth | Helix Angle | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C18000 | 0.0625 | 7/8" | 1 7/8" | 1/16" | - | 21/32" | +21° to +34° | 1" | €2.70 | |
| C18001 | 0.0781 | - | 2" | 5/64" | 0.078" | 3/4" | +21° to +34° | 1" | €2.93 | |
| C18002 | 0.0938 | 1 1/4" | 2 1/4" | 3/32" | 0.094" | 15/16" | +21° to +34° | 1" | €3.06 | |
| C18003 | - | 1 1/2" | 2 5/8" | 7/64" | - | - | +21° to +34° | 1 1/8" | €3.20 | |
| C18004 | 0.125 | 1 5/8" | 2 3/4" | 1/8" | 1/8" | 1 7/32" | +21° to +34° | 1 1/8" | €3.36 | |
| C18005 | 0.1406 | 1 3/4" | 2 7/8" | 9/64" | 0.141" | - | +21° to +34° | 1 1/8" | €3.67 | |
| C18006 | 0.1563 | 2" | 3 1/8" | 5/32" | 0.156" | - | +21° to +34° | 1 1/8" | €3.87 |
