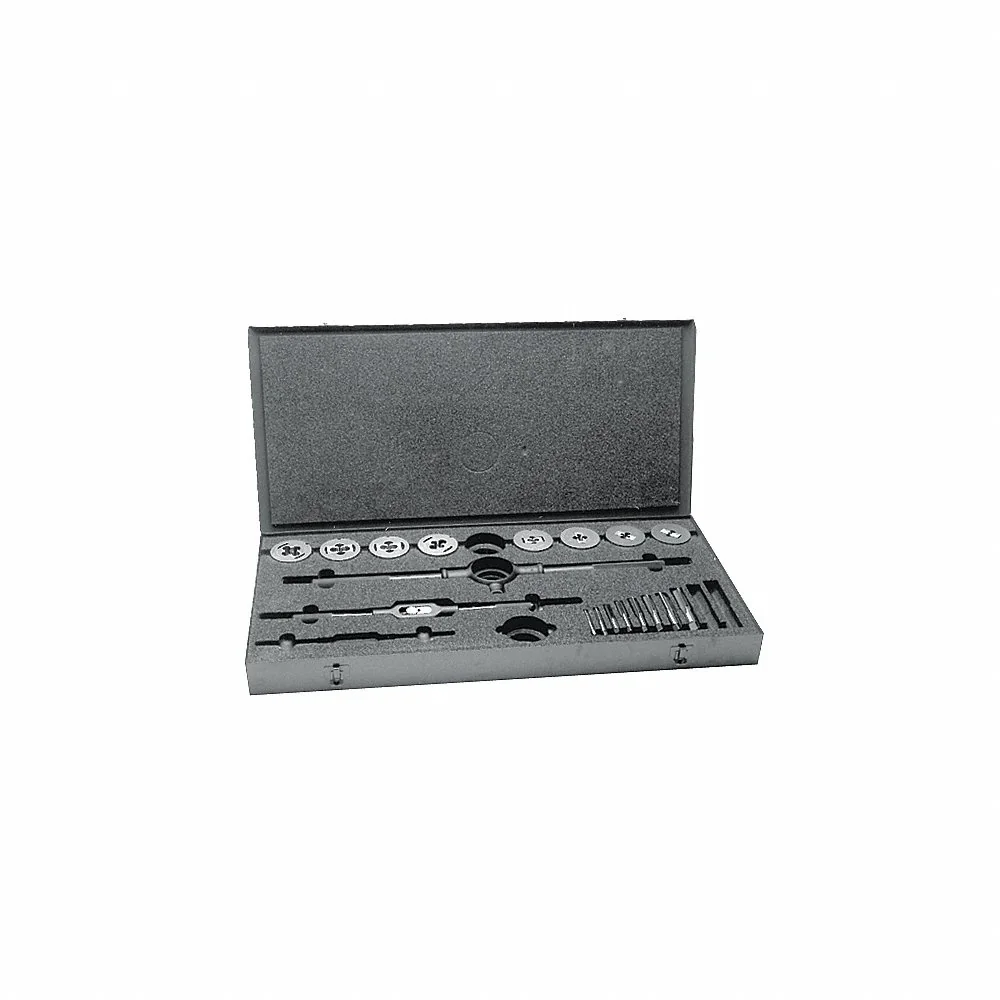

CLE-LINE C00525 Tap and Die Set, 19 Pieces, #0-80 Min. Tap Thread Size, #10-24 Max. Tap Thread Size | CQ9CZQ 50CA08

CLE-LINE C00525 Hand Tap Set, #0-80 to #10-24 Tap Thread, #0-80 to #10-24 Die Thread, UNC/UNF Thread, Round Die

Item: CQ9CZQModel: C00525Cross Ref: 50CA08
7 In Stock

Ships within 2 days via

€892.67 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Tap and Die Set
55% Thread Drill Size #21, #32, #49, 1.3 mm, 1.6 mm, 2.12 mm, 3.6 mm, 3/32"
65% Thread Drill Size #23, #34, #46, 1.25 mm, 1.55 mm, 1.8 mm, 2.3 mm, 3.5 mm
75% Thread Drill Size #25, #36, #53, 1.2 mm, 1.73 mm, 2 mm, 2.2 mm, 3.4 mm
Case Type Metal
Class Of Fit Class 2B
Coolant Fed Non Coolant Through
Die Finish Bright
Die Material High Speed Steel
Die Material Grade Carbon Steel
Die Series 0610 Series
Die Shape Round
Die Thread Size Included #0-80, #1-72, #10-24, #2-56, #3-48, #4-40, #6-32, #8-32
Die Type Adjustable
Dimensional Standards FRACTIONAL INCH
Dimensions Standard Fractional Inch
Extended Neck No
Extended Shank No
Extension Tap No
Features General Purpose Applications
Finish Bright Uncoated
Finish-machining Bright (Uncoated)
Helix Angle 0°
Material High Speed Steel
Material-machining High Speed Steel
Max. Die Thread Size #10-24
Max. Tap Thread Size #10-24
Measurement System Fractional Inch
Min. Bore Dia. #0-80 nF
Min. Tap Thread Size #0-80
No. Of Dies In Set 8
No. Of Flutes 2, 3, 4
No. Of Pieces 19
No. Of Taps 8
Powdered Metal Base Material No
Primary Material Application All Materials
Primary Material Application Iso Code H, K, M, N, P, S
Secondary Material Application Stainless Steel
Secondary Material Application Iso Code M
Spiral Direction Neutral
System Of Measurement Imperial
Tap Chamfer Plug
Tap Finish Bright Uncoated
Tap Material High Speed Steel
Tap Material Grade Grade M2
Tap Overall Length Table 302
Tap Series Htgp Series
Tap Shank Dia. Table 302
Tap Shank Standard Table 302
Tap Size Included #0-80 NF, #1-72 NF, #10-24 NC, #2-56 NC, #3-48 NC, #4-40 NC, #6-32 NC, #8-32 NC
Tap Type Hand Tap
Tap Wrench Number T9
Thread Direction Right Hand
Thread Limit H1, H2, H3
Thread Size Included #0-80 NF, #1-72 NF, #10-24 NC, #2-56 NC, #3-48 NC, #4-40 NC, #6-32 NC, #8-32 NC
Thread Standard UNC, UNF
Thread Type UNC, UNF
Threads Per Inch 24, 32, 40, 48, 56, 72, 80

Shipping Info:

Ship weight (kg) 0.28
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelMin. Tap Thread SizeMax. Tap Thread SizeMax. Die Thread SizeFinishDie TypeCase TypeTap Wrench NumberDimensional StandardsPrice
CLE-LINE C67271 Tap and Die Set, 10 Pieces, #2-56 Min. Tap Thread Size, #12-24 Max. Tap Thread Size | CQ9CZN 50CA41 C67271#2-56#12-24#12-24Bright UncoatedAdjustablePlastic#0FRACTIONAL INCH€740.15
CLE-LINE C00449 Tap and Die Set, 13 Pieces, M6x1 Min. Tap Thread Size, M12x1.75 Max. Tap Thread Size | CQ9CZP 445M63 C00449M6 x 1M12 x 1.75M12 x 1.75BrightAdjustableMetalT10Metric€766.43
CLE-LINE C00608 Tap and Die Set, 44 Pieces, 1/4 Inch Size-20 Min. Tap Thread Size | CQ9CZR 50CA76 C006081/4"-201"-141"-14Bright UncoatedTwo PieceMetal#5, #7FRACTIONAL INCH€4,779.23
CLE-LINE C67293 Tap and Die Set, 44 Pieces, 1/4 Inch Size-20 Min. Tap Thread Size | CQ9CZT 50CC34 C672931/4"-201"-121"-12Bright UncoatedAdjustableMetal#5, #7FRACTIONAL INCH€3,428.42
CLE-LINE C00448 Tap and Die Set, 17 Pieces, M2.5x0.45 Min. Tap Thread Size, M6x1.00 Max. Tap Thread Size | CQ9CZU 50AT30 C00448M2.5 x 0.45M6 x 1M6 x 1Bright UncoatedAdjustableMetalT9Metric€761.32
