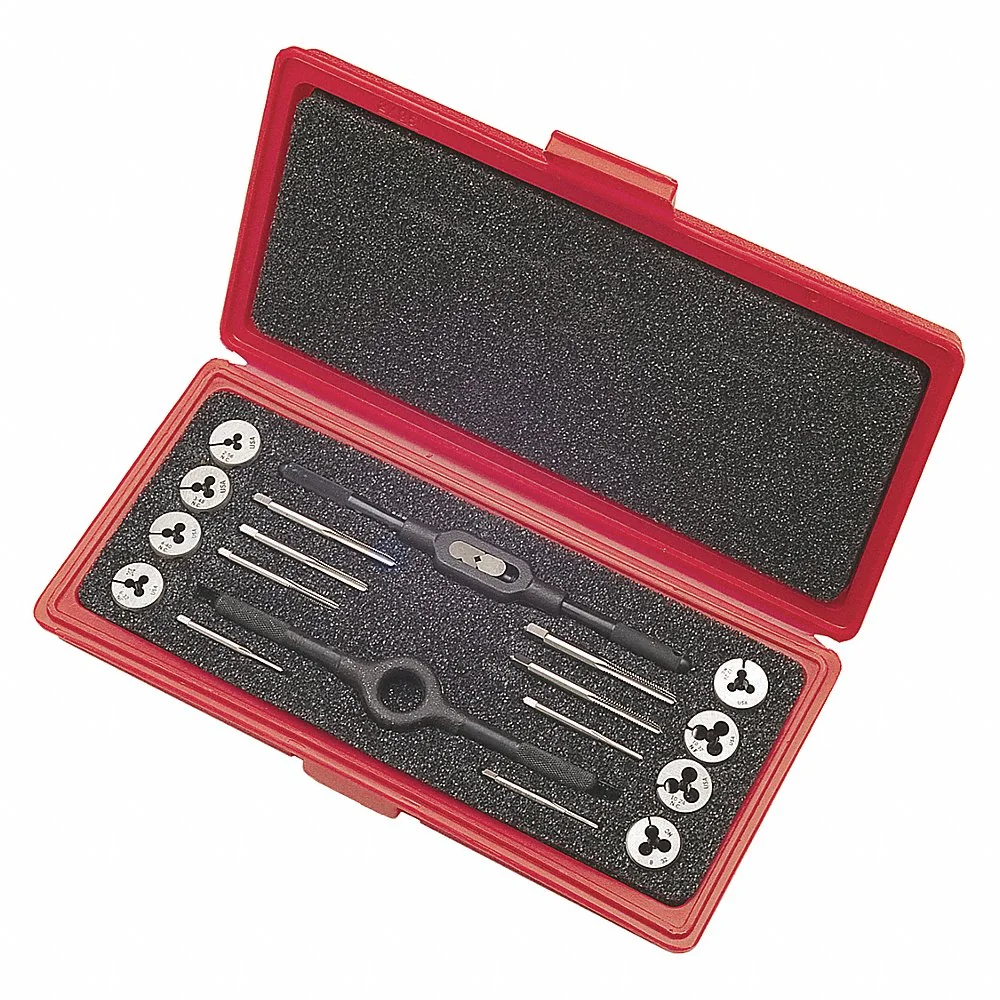

CLE-LINE C67271 Tap and Die Set, 10 Pieces, #2-56 Min. Tap Thread Size, #12-24 Max. Tap Thread Size
Item: CQ9CZNModel: C67271Cross Ref: 50CA41
7 In Stock
Ships within 2 days via
10.00% off
€764.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| 55% Thread Drill Size | #13, #21, #32, #49, 2.12 mm, 3.6 mm, 3/32", 4.25 mm |
| 65% Thread Drill Size | #23, #34, #46, 1.8 mm, 2.3 mm, 3.5 mm, 4.15 mm, 4.6 mm |
| 75% Thread Drill Size | #21, #25, #36, 1.73 mm, 2 mm, 2.2 mm, 3.4 mm, 4.45 mm |
| Case Type | Plastic |
| Class Of Fit | Class 2B |
| Coolant Fed | Non-Coolant Through |
| Die Finish | Bright |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Series | 0610 Series |
| Die Shape | Round |
| Die Thread Sizes Included | #6-32 #8-32, #2-56, #3-48, #4-40, #10-24, #10-32, #12-24 |
| Die Type | Adjustable |
| Dimensional Standards | FRACTIONAL INCH |
| Dimensions Standard | Fractional Inch |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | General Purpose Applications |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Helix Angle | 0° |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | #12-24 |
| Max. Tap Thread Size | #12-24 |
| Measurement System | Fractional Inch |
| Min. Tap Thread Size | #2-56 |
| Minimum Bore Diameter | #2-56 NC |
| No. Of Flutes | 3, 4 |
| Number Of Dies In Set | 8 |
| Number Of Pieces | 10 |
| Number Of Taps | 8 |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Spiral Direction | Neutral |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Finish | Bright Uncoated |
| Tap Material | High Speed Steel |
| Tap Material Grade | Grade M2 |
| Tap Overall Length | Table 302 |
| Tap Series | Htgp Series |
| Tap Shank Dia. | Table 302 |
| Tap Shank Standard | Table 302 |
| Tap Sizes Included | #10-24, #10-32, #12-24, #2-56, #3-48, #4-40, #6-32, #8-32 |
| Tap Type | Hand Tap |
| Tap Wrench Number | #0 |
| Thread Direction | Right Hand |
| Thread Limit | H2, H3 |
| Thread Sizes Included | #2-56, #3-48, #4-40, #10-24, #10-32, #12-24, #6-32 #8-32 |
| Thread Standard | UNC, UNF |
| Thread Type | UNC, UNF |
| Threads Per Inch | 24, 32, 40, 48, 56 |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Pieces | Min. Tap Thread Size | Max. Tap Thread Size | Max. Die Thread Size | Finish | Die Type | Case Type | Number Of Dies In Set | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C00449 | 13 | M6 x 1 | M12 x 1.75 | M12 x 1.75 | Bright | Adjustable | Metal | 10 | €889.22 | |
 |
C00525 | 19 | #0-80 | #10-24 | #10-24 | Bright, Uncoated | Adjustable | Metal | 8 | €1,028.49 | |
 |
C00608 | 44 | 1/4"-20 | 1"-14 | 1"-14 | Bright, Uncoated | Two Piece | Metal | 20 | €5,678.69 | |
 |
C67293 | 44 | 1/4"-20 | 1"-12 | 1"-12 | Bright, Uncoated | Adjustable | Metal | 20 | €3,795.18 | |
 |
C00448 | 17 | M2.5 x 0.45 | M6 x 1 | M6 x 1 | Bright, Uncoated | Adjustable | Metal | 7 | €901.29 |
