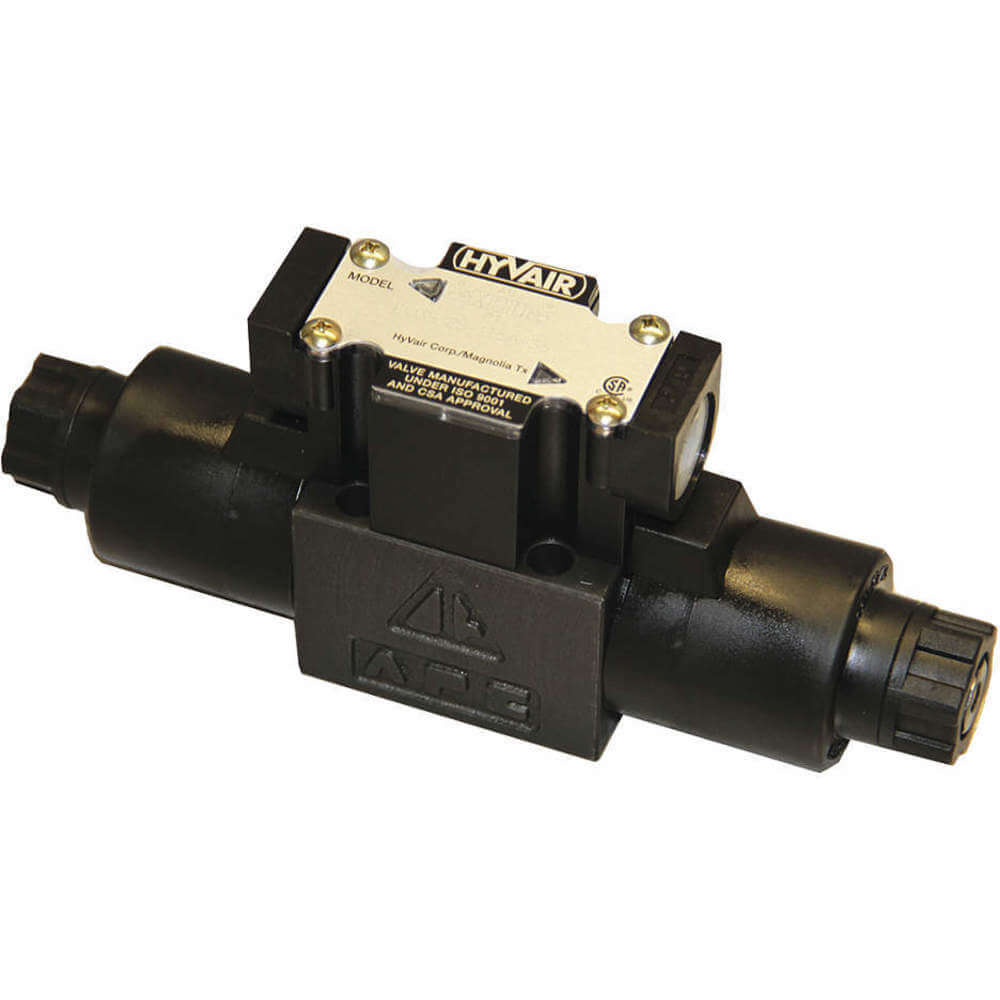

CHIEF D03S-2B-115A-35 Directional Valve DO3 115VAC Closed 4Ways
Item: AH4UVMModel: D03S-2B-115A-35Cross Ref: 35LP30
7 In Stock
Ships within 2 days via
13.00% off
€181.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Directional Valve |
| Center Position | Closed Center |
| Center Position-hydraulic Valves | Closed |
| Coil Voltage | 115V AC |
| Flow Rate | 20 GPM |
| For Use With | Press Pump |
| Frequency | 50/60 Hz |
| Gpm @ 3000 Psi | 20 GPM |
| Height | 3 12/25" |
| Holding Amps | 0.54/0.41 |
| Holding Amps | 0.41A |
| Included Seals | Seals Included |
| Inrush Amps | 2.2/2.0 |
| Inrush Amps | 2.2A |
| Length | 8.07" |
| Max. Flow Rate3 | 20 GPM |
| Max. Pressure | 5000 psi |
| Max. Tank Pressure | 3000 psi |
| Max. Tank Pressure (psi) | 3000 |
| Nfpa Size | D03 |
| No. Of Positions | 3 |
| No. Of Spools-hydraulic Valves | 1 |
| No. Of Ways | 4 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Overall Height | 3 12/25" |
| Overall Length | 8.07" |
| Overall Width | 1.81" |
| Override | No Overrides |
| Override | No Override |
| Port Connections | Tank |
| Promotion Restriction | Not Eligible For Promotion |
| Return Mechanism | Spring |
| Return Type-hydraulic Valves | Spring Centered |
| Seal Material | Buna N |
| Seal Type | Buna N |
| Spool Type | Closed |
| Valve Control | Directional Control |
| Valve Type | Solenoid Operated |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 2.01 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 15.24 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Pressure | Overall Height | Overall Width | Port Connections | Valve Type | Center Position | For Use With | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2P80 | 3625 psi | 3 1/2" | 6 1/2" | Inlet, Outlet, Work | Control | Tandem Center | Hydraulic Applications | 3 1/2" | €394.85 | |
 |
C273446 | 2750 psi | 3" | 4 1/2" | Inlet, Outlet, Work | Control | Tandem Center | Log Splitters | 3" | €379.64 | |
 |
2P40A1A1 | 3625 psi | 2.359" | 6 1/2" | Inlet, Outlet, Work | Control | Tandem Center | Hydraulic Cylinders | - | €442.20 | |
 |
3P40 | 3625 psi | 2.359" | 6 1/2" | Inlet, Outlet, Work | Control | Tandem Center | Hydraulic Cylinders | - | €428.89 | |
 |
4P40 | 3625 psi | 2.359" | 8" | Inlet, Outlet, Work | Control | Tandem Center | Hydraulic Cylinders | - | €577.57 | |
 |
DO3S-2C-12D-35 | 5000 psi | 3 12/25" | 1.81" | Tank | Solenoid Operated | Tandem Center | Gear Pump | 3 12/25" | €218.30 | |
 |
D03S-2C-115A-35 | 5000 psi | 3 12/25" | 1.81" | Tank | Solenoid Operated | Tandem Center | Gear Pump | 3 12/25" | €218.30 |
