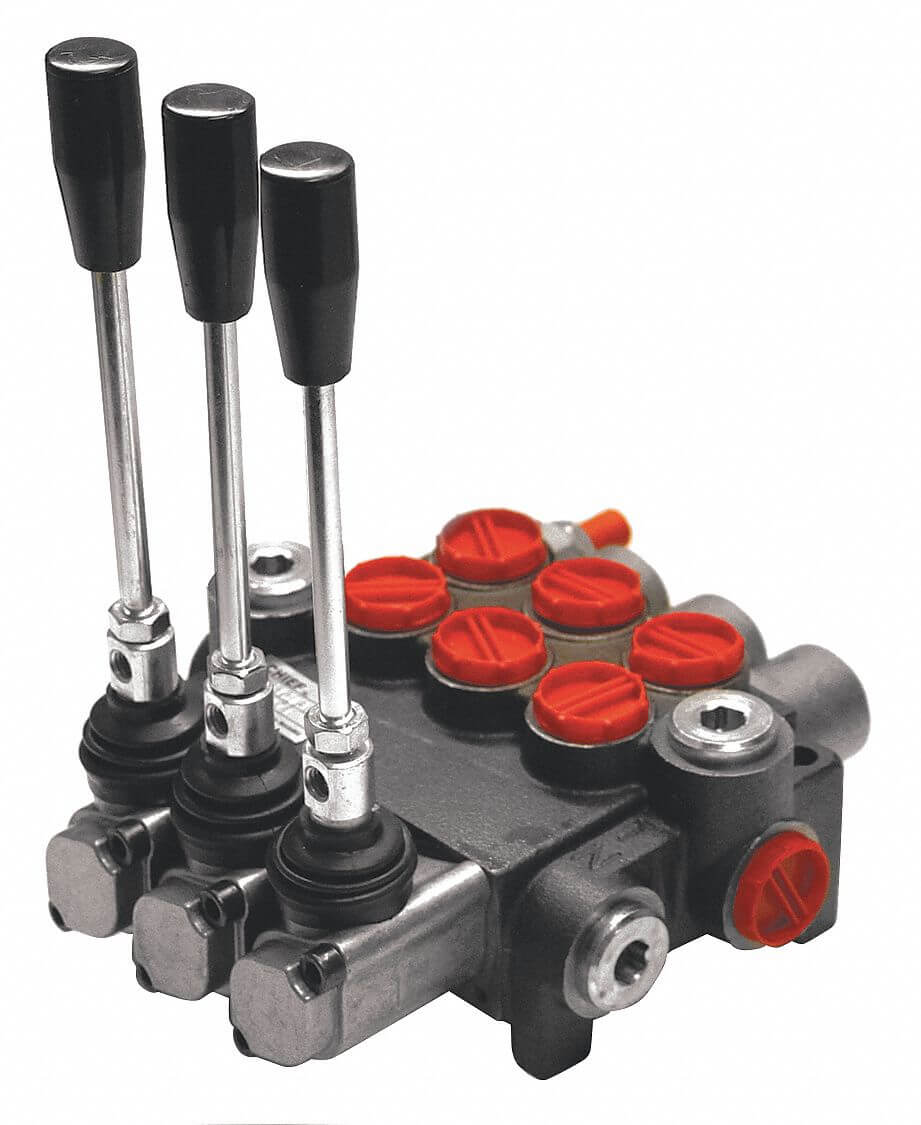

CHIEF 3P40 Hydraulic Directional Valve 4 Ways 3 Spools
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€465.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Directional Valve |
| Actuation Mechanism | Manual |
| Center | Tandem |
| Center Position | Tandem Center |
| Flow Capacity | 10 |
| For Use With | Hydraulic Cylinders |
| Inlet/outlet Npt | #10 |
| Inlet/outlet Npt | SAE #10 |
| Length | 7 1/2" |
| Max. Pressure | 3625 psi |
| Maximum Flow Rate | 10 GPM |
| Maximum Pressure Setting | 3625 psi |
| Maximum Relief Valve Pressure Setting | 3625 psi |
| Maximum Supply Pressure | 3625 psi |
| Minimum Pressure Setting | 1500 psi |
| Minimum Relief Valve Pressure Setting | 1500 psi |
| Npt Port | SAE #8 |
| Npt Port | #8 |
| Number Of Positions | 3 |
| Number Of Spools | 3 |
| Number Of Spools - Hydraulic Valves | 3 |
| Number Of Ways | 4 |
| Overall Height | 2.359" |
| Overall Length | 7.5" |
| Overall Width | 6 1/2" |
| Port Connections | Inlet, Outlet, Work |
| Pressure Connection Size | #10 |
| Pressure Connection Type | SAE O Ring Boss |
| Promotion Restriction | Not Eligible For Promotion |
| Relief Valve Pressure | 1500 psi to 3625 psi |
| Relief Valve Range | 1500 to 3625 |
| Series | ED Series |
| Spool Action | Spring Center To Neutral |
| Spools | 3 |
| Tank Connection Size | #10 |
| Tank Connection Type | Sae O Ring Boss |
| Valve Control | Directional Control |
| Valve Type | Control |
| Work Connection Size | #8 |
| Work Connection Type | Sae O Ring Boss |
Shipping Info:
| Ship weight (kg) | 6.21 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 28.19 |
| Ship width (cm) | 26.42 |
| Country of Origin | BG |
Product Details:
- Ways : 4
- Center : Tandem
- Spools : 3
- Spool Action : 3 Position to Center
Product Variants
| Product | Model | Center Position | Max. Pressure | Flow Rate | Spool Type | Valve Type | Coil Voltage | Gpm @ 3000 Psi | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

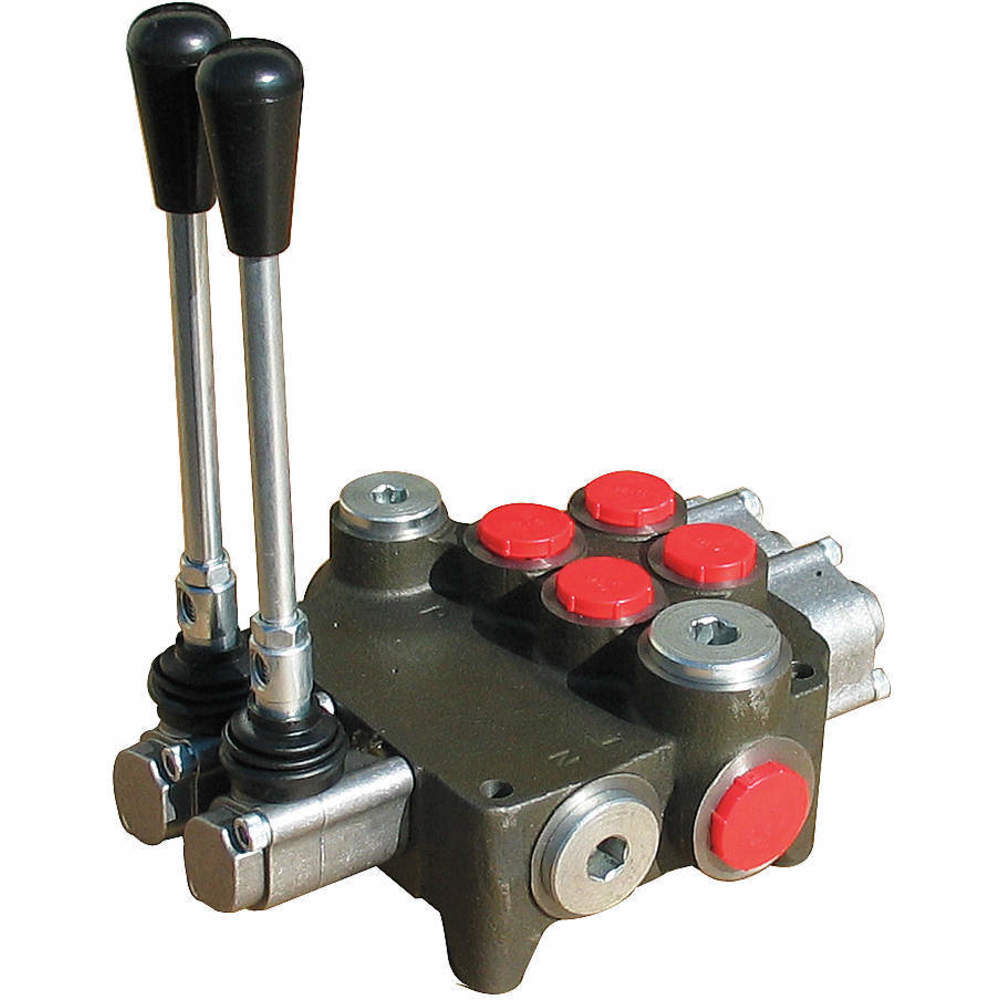

2P80 | Tandem Center | 3625 psi | - | - | Control | - | - | - | €476.06 | |
 |
C273446 | Tandem Center | 2750 psi | - | - | Control | - | - | - | €428.64 | |
 |

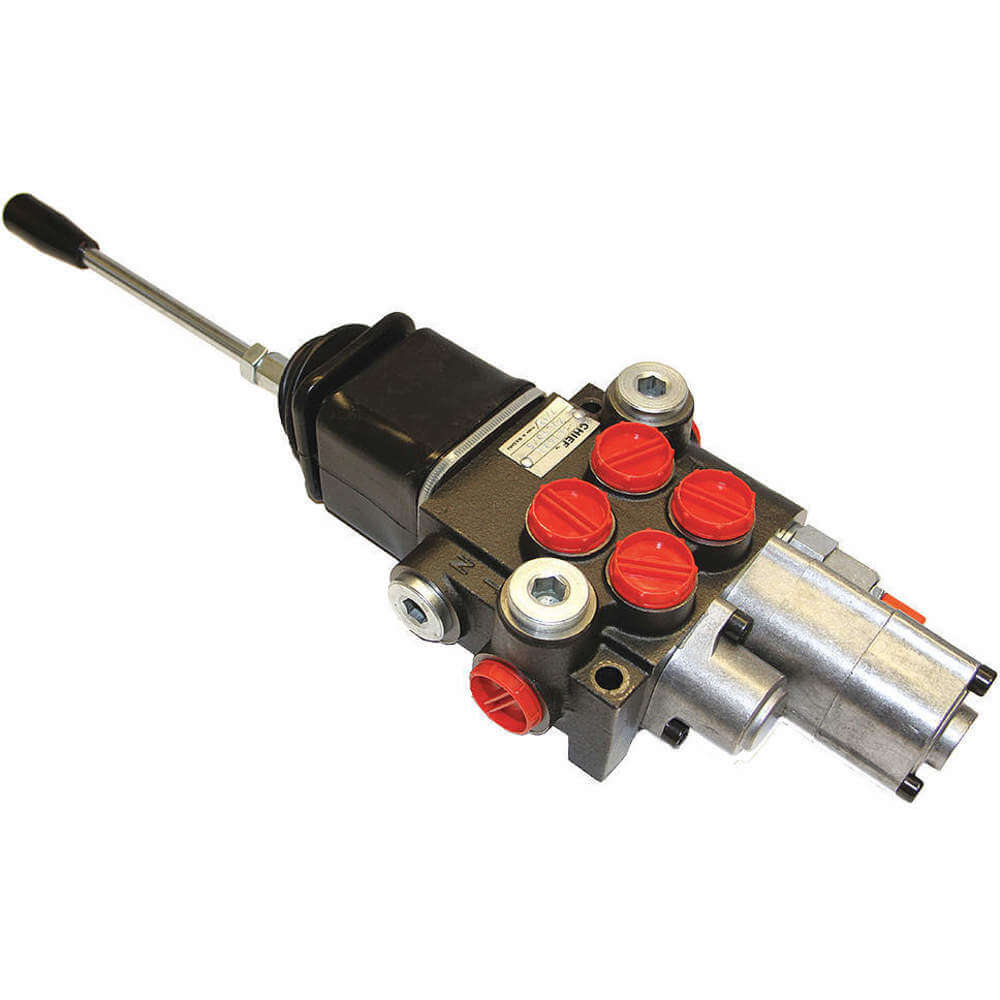

2P40A1A1 | Tandem Center | 3625 psi | - | - | Control | - | - | - | €548.37 | |
 |

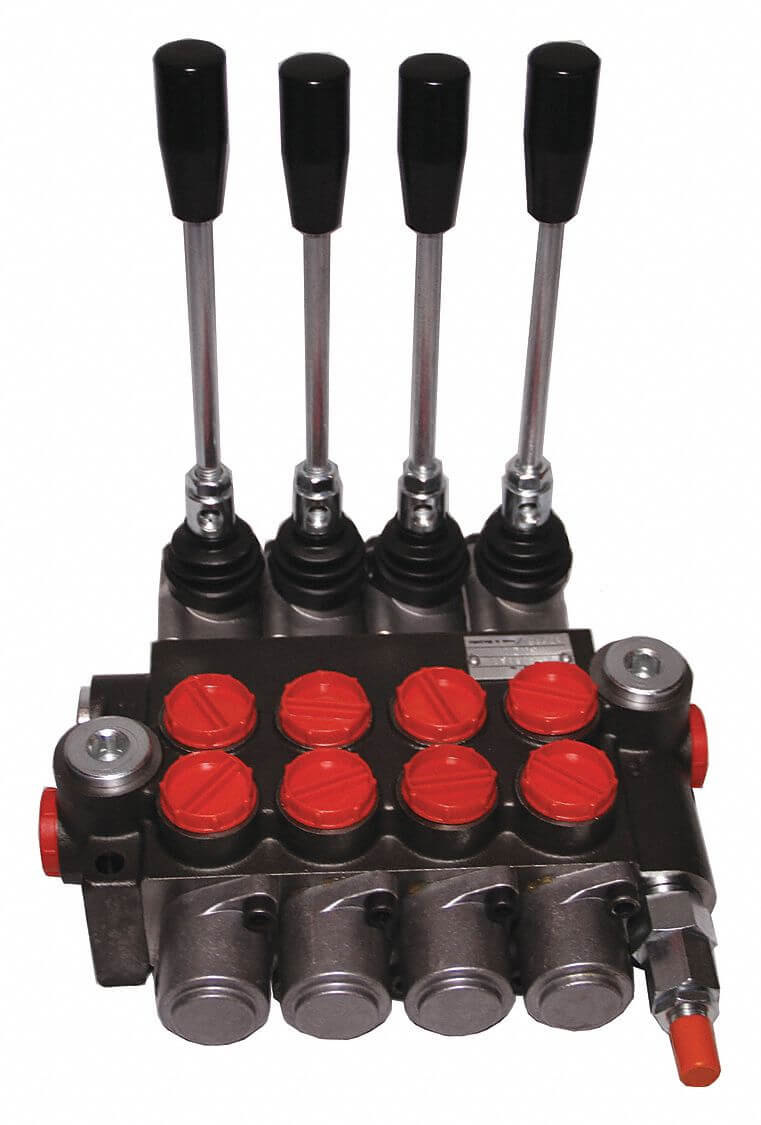

4P40 | Tandem Center | 3625 psi | - | - | Control | - | - | - | €653.87 | |
 |

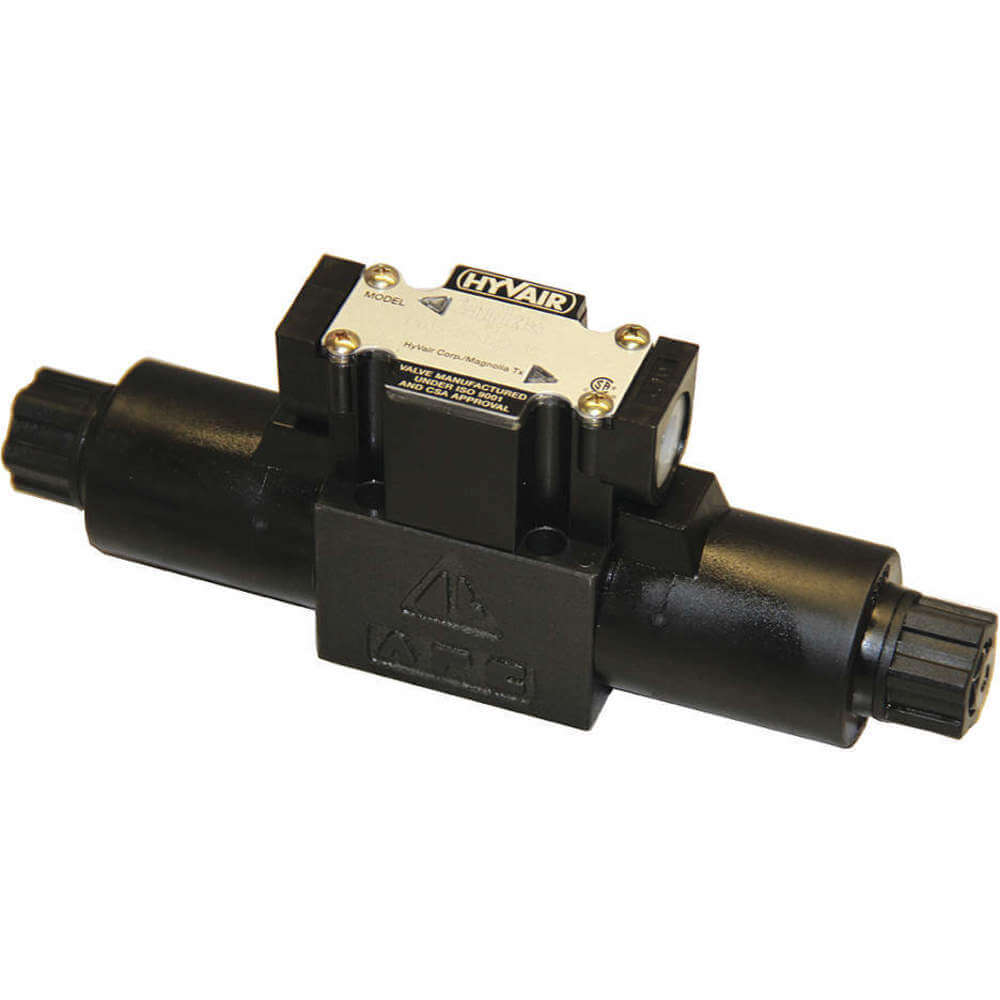

DO3S-2C-12D-35 | Tandem Center | 5000 psi | 12 GPM | Tandem | Solenoid Operated | 12V DC | 12 GPM | 12V DC | €282.19 | |
 |

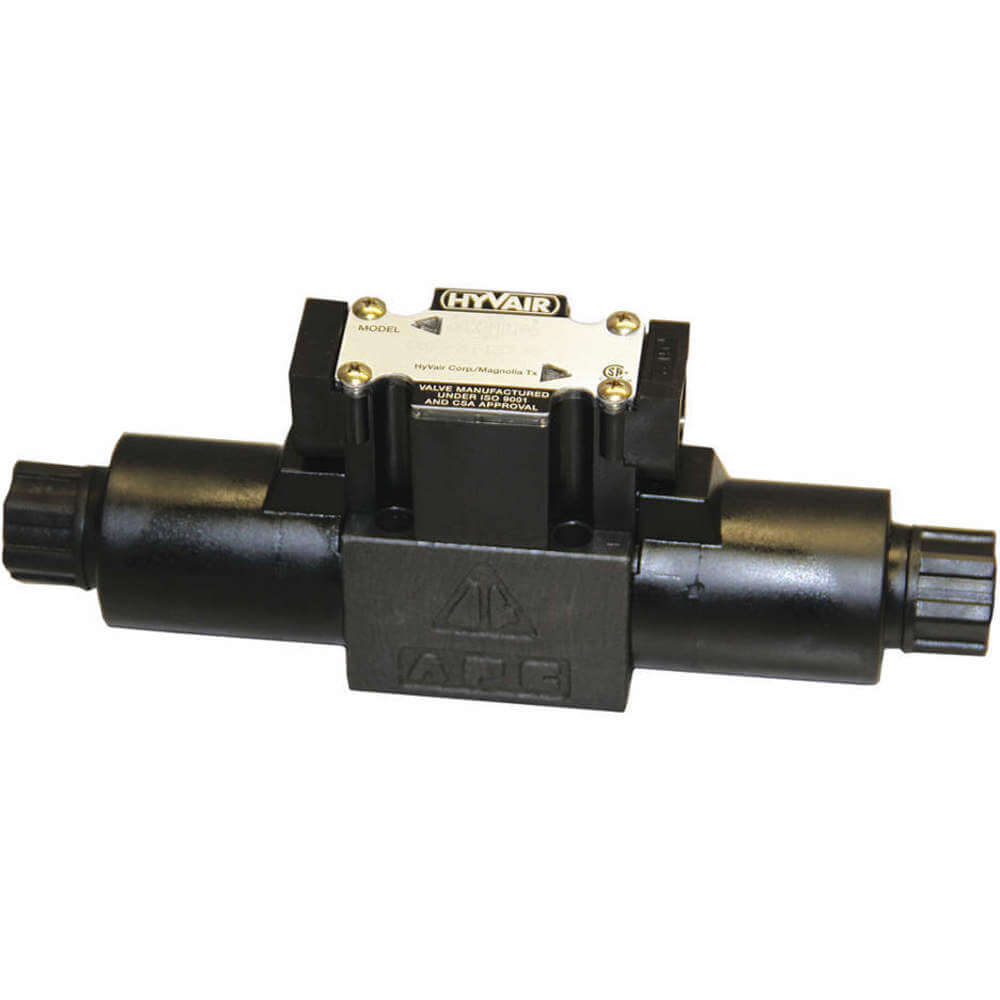

D03S-2C-115A-35 | Tandem Center | 5000 psi | 12 GPM | Tandem | Solenoid Operated | 115V AC | 12 GPM | 115V AC | €294.24 | |
 |

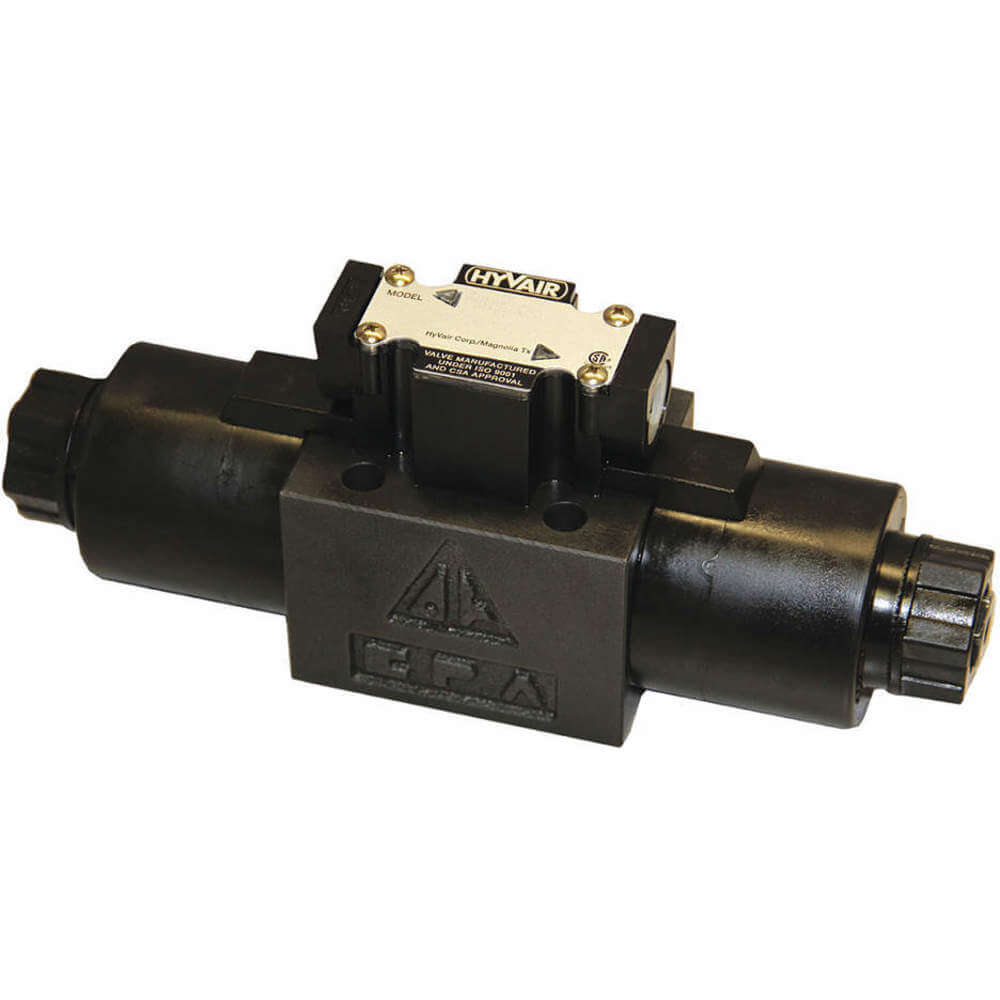

D05S-2C-12D-35 | Tandem Center | 5000 psi | 25 GPM | Tandem | Solenoid Operated | 12V DC | 25 GPM | 12V DC | €368.14 |
