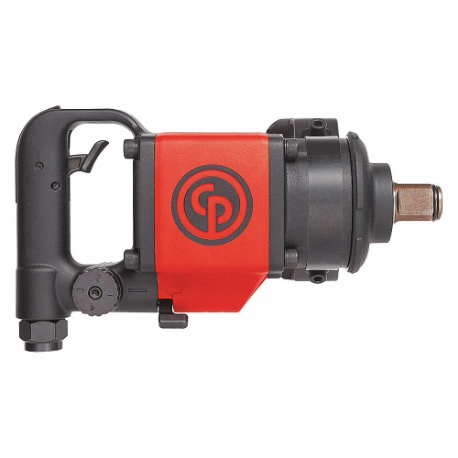

CHICAGO PNEUMATIC CP7773D Impact Wrench, D-Handle, Std, Compact, Industrial Duty, 1 Inch Square Drive Size
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€852.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Impact Wrench |
| Air Consumption | 41 CFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Anvil | Standard |
| Anvil Type-air Impacts | Standard |
| Body Style | Pistol |
| Breakaway Torque | 1300 lbs.-ft. |
| Built In Light | No |
| Clutch Style | Twin Hammer |
| Drive Size | 1" |
| Drive Type | Standard |
| Duty Cycle | Industrial Duty |
| Duty Rating | Industrial Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 1070 lbs.-ft. |
| Features | Composite Cover On The Clutch Housing, Intuitive Forward/Reverse Lever & Power Regulator On Both Sides, Steel Motor |
| Free Speed | 6600 RPM |
| Handle Material | Composite |
| Handle Type | D Handle |
| Housing Material | Aluminum |
| Impact Rated | Yes |
| Impact Sound Level | 109 dB |
| Max. Air Pressure | 90 psi |
| Max. Bolt Capacity | 1" |
| Min. Air Pressure | 90 psi |
| Min. Hose Size | 3/8" |
| No. Of Speed Settings | 4 |
| Overall Length | 11 3/8" |
| Power Source | Air Powered |
| Power To Weight Ratio | 89.7 lbs.-ft. |
| Retainer Type | Friction Ring |
| Tool Style | Compact |
| Tool Weight | 14.5 lbs. |
| Vibration Level | 12 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 7.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Free Speed | Min. Hose Size | Drive Size | Handle Material | Fastening Torque | Max. Bolt Capacity | Breakaway Torque | No. Of Speed Settings | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

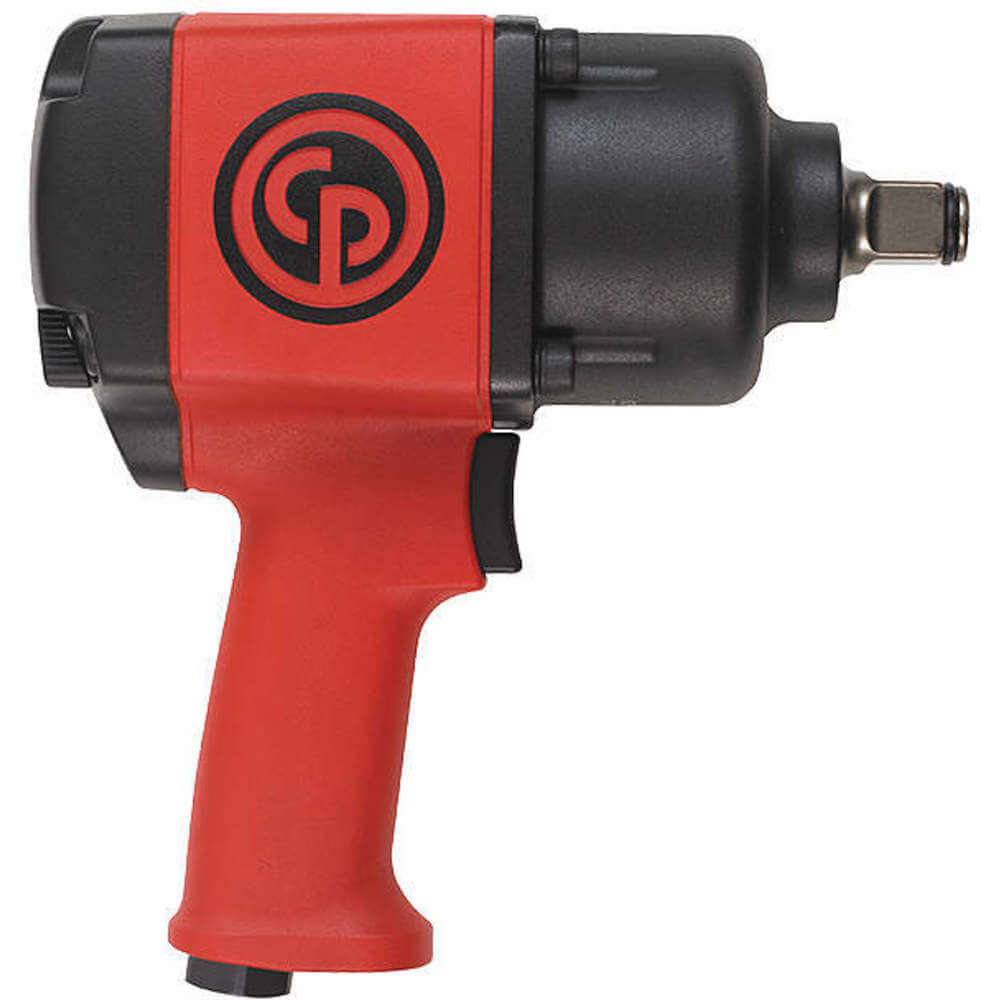

CP7763 | 6300 RPM | 1/2" | 3/4" Square | Aluminum | 950 lbs.-ft. | 1 1/8" | 1200 lbs.-ft. | 3 | €812.98 | |
 |

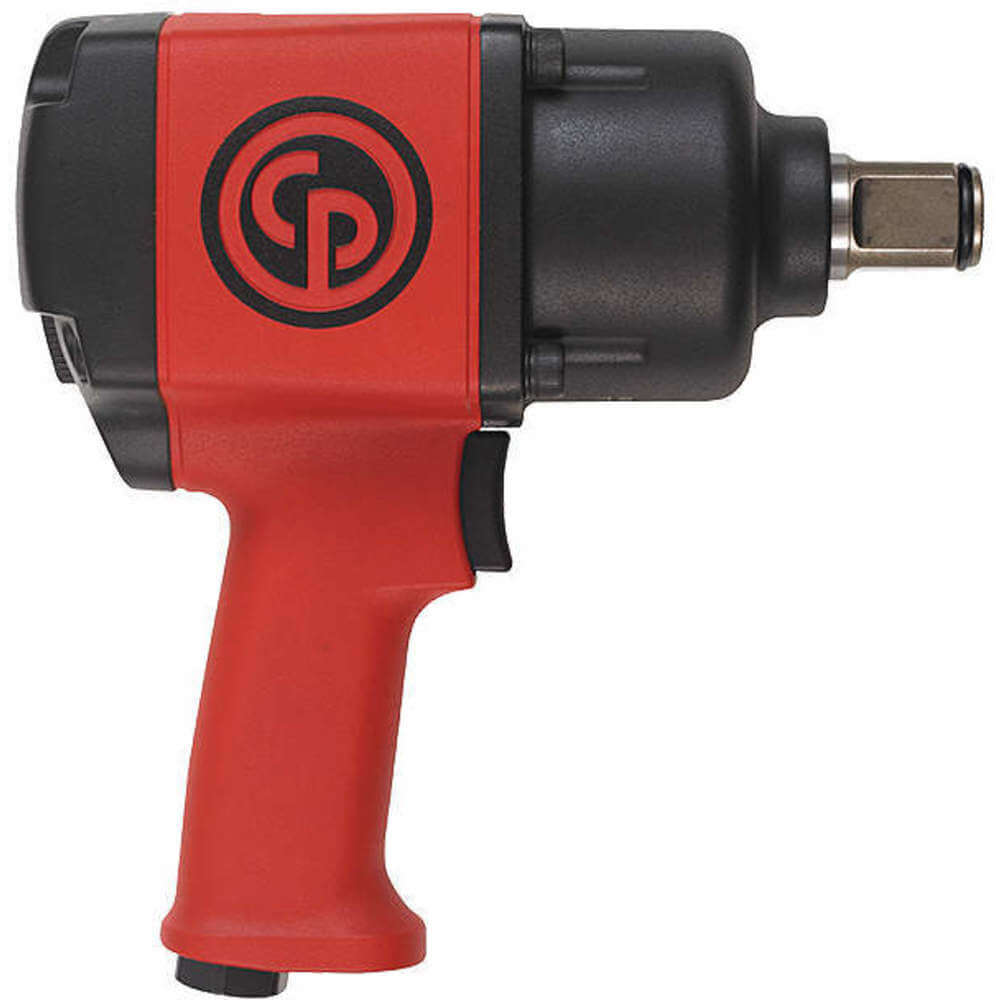

CP7773 | 6300 RPM | 1/2" | 1" Square | Aluminum | 950 lbs.-ft. | 1 1/8" | 1200 lbs.-ft. | 3 | €851.35 | |
 |
CP7763-6 | 6300 RPM | 1/2" | 3/4" Square | Aluminum | 950 lbs.-ft. | 1 1/8" | 1200 lbs.-ft. | 3 | €867.12 | |
 |

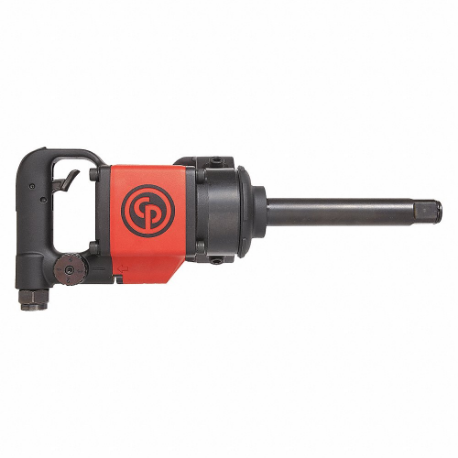

CP7773D-6 | 6600 RPM | 3/8" | 1" | Composite | 1070 lbs.-ft. | 1" | 1300 lbs.-ft. | 4 | €1,024.81 | |
 |

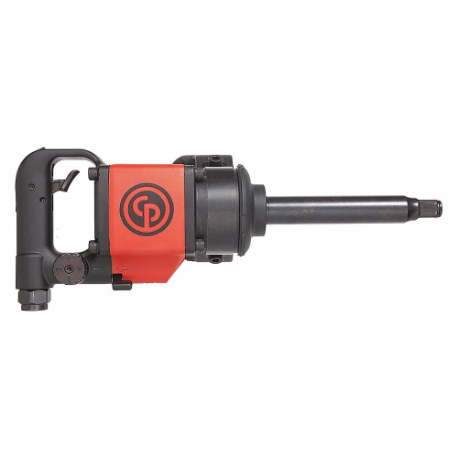

CP7763D-6 | 6600 RPM | 3/8" | 3/4" | Composite | 1070 lbs.-ft. | 1" | 1300 lbs.-ft. | 4 | €994.16 |
