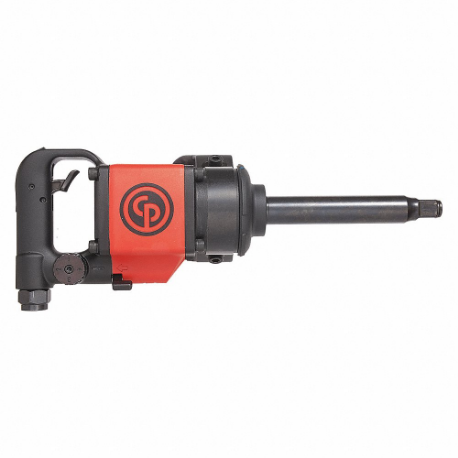

CHICAGO PNEUMATIC CP7763D-6 Impact Wrench, D-Handle, Extended, Compact, Industrial Duty, Friction Ring, Bottom
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€894.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Impact Wrench |
| Air Consumption | 41 CFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Anvil | 6" Extended |
| Breakaway Torque | 1300 lbs.-ft. |
| Built-in Light | No |
| Clutch Style | Twin Hammer |
| Drive Size | 3/4" |
| Drive Type | Extended |
| Duty Cycle | Industrial Duty |
| Duty Rating | Industrial Duty |
| Extended Anvil Length | 6" |
| Fastening Torque | 1070 lbs.-ft. |
| Features | Composite Cover On The Clutch Housing, Intuitive Forward/Reverse Lever & Power Regulator On Both Sides, Steel Motor |
| Free Speed | 6600 RPM |
| Handle Material | Composite |
| Handle Type | D Handle |
| Housing Material | Aluminum |
| Impact Rated | Yes |
| Impact Sound Level | 109 dB |
| Max. Air Pressure | 90 psi |
| Max. Bolt Capacity | 1" |
| Min. Air Pressure | 90 psi |
| Min. Hose Size | 3/8" |
| Number Of Speed Settings | 4 |
| Overall Length | 17 1/2" |
| Power Source | Air Powered |
| Power To Weight Ratio | 80.7 lbs.-ft. |
| Retainer Type | Friction Ring |
| Tool Style | Compact |
| Tool Weight | 16.1 lbs. |
| Vibration Level | 12 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 7.56 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Handle Type | Drive Type | Duty Rating | Drive Size | Retainer Type | Fastening Torque | Breakaway Torque | Free Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CP7763 | Pistol Grip | Standard | General Duty | 3/4" Square | Friction Ring | 950 lbs.-ft. | 1200 lbs.-ft. | 6300 RPM | €812.98 | |
 |
CP7773 | Pistol Grip | Standard | General Duty | 1" Square | Friction Ring | 950 lbs.-ft. | 1200 lbs.-ft. | 6300 RPM | €851.35 | |
 |
CP7763-6 | Pistol Grip | Extended | General Duty | 3/4" Square | Friction Ring, Through Hole | 950 lbs.-ft. | 1200 lbs.-ft. | 6300 RPM | €867.12 | |
 |
CP7773D-6 | D Handle | Extended | Industrial Duty | 1" | Friction Ring | 1070 lbs.-ft. | 1300 lbs.-ft. | 6600 RPM | €1,024.81 | |
 |
CP7773D | D Handle | Standard | Industrial Duty | 1" | Friction Ring | 1070 lbs.-ft. | 1300 lbs.-ft. | 6600 RPM | €897.40 |
