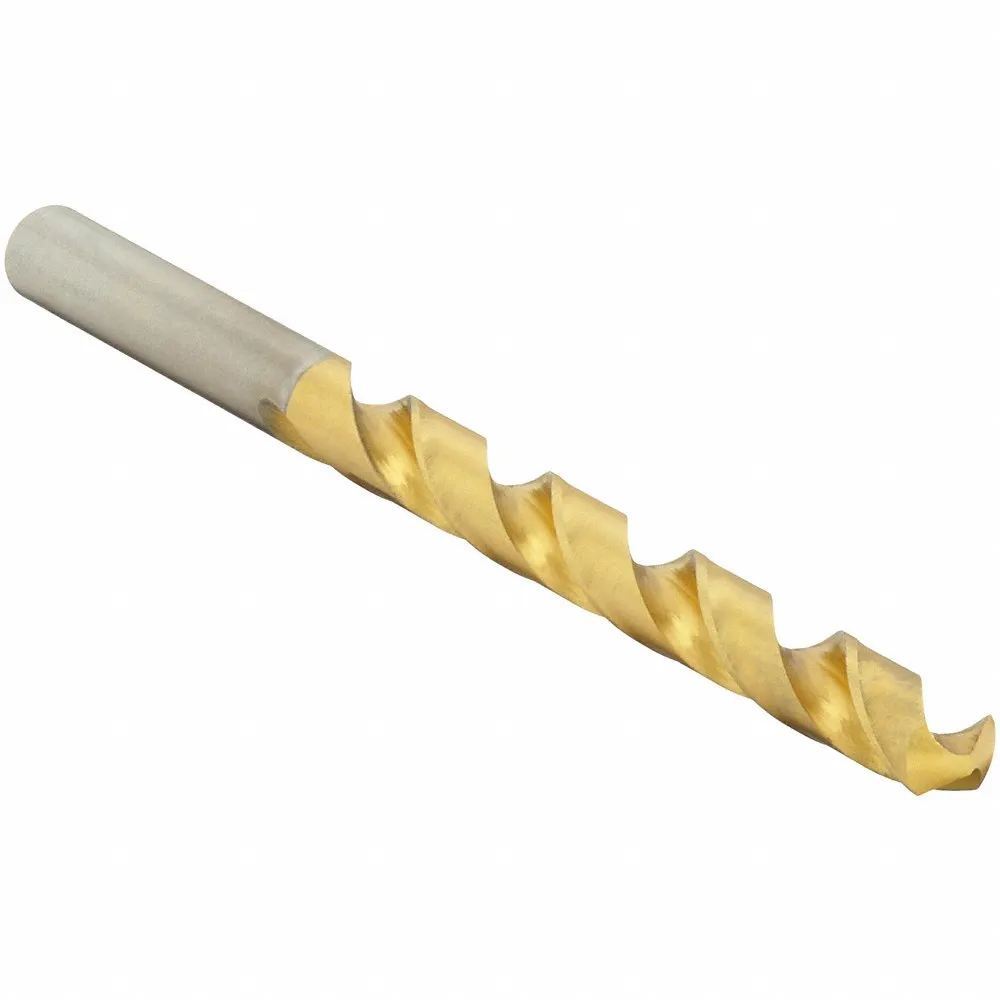

CHICAGO-LATROBE 70385 Jobber Length Drill Bit, 6.70 mm Size, 63 mm Flute Length, High Speed Steel
Item: CX7HYGModel: 70385Cross Ref: 434P17
7 In Stock
Ships within 2 days via
10.00% off
€14.09 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Carbon Steel, Cast Iron, Non-Ferrous Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2638 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 6.7 mm |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0793 mm |
| Finish - Machining | Tin |
| Flute Length | 63 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 55/64" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 101 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 15TN Series |
| Shank Length | 38 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.1 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
