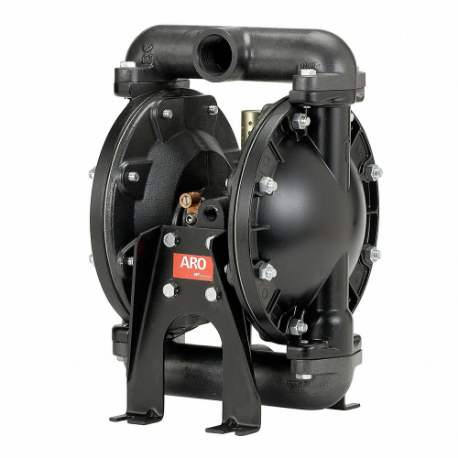

ARO 666100-3C9-C Air Operated Diaphragm Pump, Air, Bolt, 1 Inch Fluid Connection Size
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,191.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Diaphragm Pump |
| Air Consumption | 45 SCFM |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Alcohol, Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water |
| Connection Size | 1" |
| Connection Type | NPTF |
| Diaphragm Material | Hytrel |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 40 GPM |
| Flow Rate @ 120 Psi | 41 GPM |
| Flow Rate @ 40 Psi | 30 GPM |
| Flow Rate @ 50 Psi | 33.75 GPM |
| Flow Rate @ 60 Psi | 36 GPM |
| Flow Rate @ 70 Psi | 37.5 GPM |
| Flow Rate @ 80 Psi | 38.75 GPM |
| Flow Rate @ 90 Psi | 39.5 GPM |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/4" |
| Inlet Type | NPTF |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Flow Rate | 41 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | -20°F |
| Mounting Hardware Material | Steel |
| Overall Height | 12 1/2" |
| Overall Length | 8 3/5" |
| Overall Width | 8" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Series | 66610X Series |
| Valve Material | Hytrel |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 9.14 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 21.84 |
| Ship width (cm) | 20.32 |
| Country of Origin | CN |
Product Variants
| Product | Model | Diaphragm Material | Valve Material | Min. Media Temp. | Housing Material | Pump Assembly Type | Max. Flow Rate | Check Seat Material | Max. Solid Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
666100-362-C | Buna N | Acetal | 0°F | Aluminum | Bolt | 41 GPM | Polypropylene | 0.13" | €2,196.55 |
