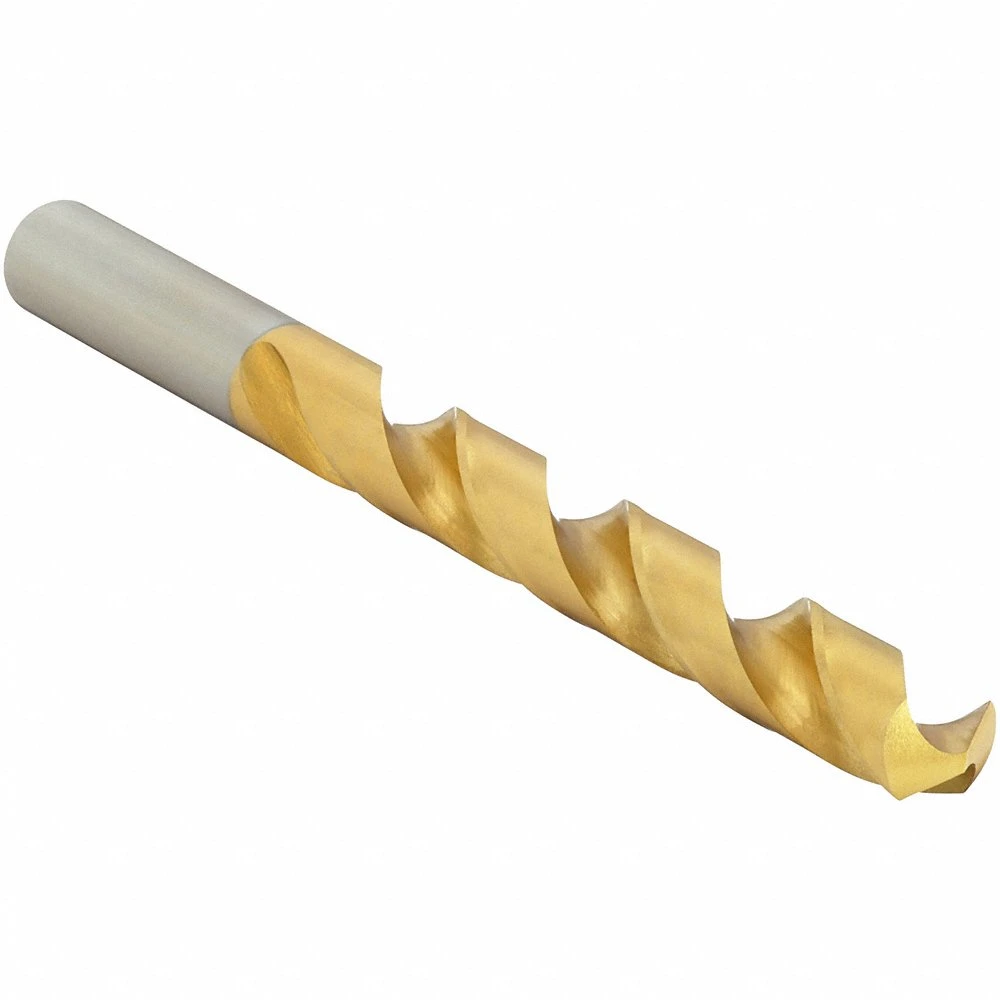

CHICAGO-LATROBE 70232 Jobber Bit 1/2 Inch High Speed Steel
Item: AB3RUFModel: 70232Cross Ref: 1V895
7 In Stock
Ships within 2 days via
5.00% off
€45.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1/2" |
| Drill Dia. Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1502" |
| Finish | TiN Coating |
| Finish-machining | Tin |
| Flute Length | 4 1/2" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150T |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 3 3/8" |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 6" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 15TN Series |
| Shank Dia. | 1/2" |
| Shank Length | 1 1/2" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 16.8 |
| Ship width (cm) | 1.27 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Max. Drilling Depth | Drill Bit Size | Shank Length | Drill Dia. Tolerance | Flute Length | Size | Decimal Equivalent | Drill Bit Dimension Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 70101 | 1 31/32" | #1 | 1 1/4" | -0" to +0.0007" | - | #1 | 0.228 | Wire | €11.18 | |
| 70102 | 1 31/32" | #2 | 1 1/4" | -0" to +0.0007" | - | #2 | 0.221 | Wire | €11.18 | |
| 70103 | 1 7/8" | #3 | 1 1/4" | -0" to +0.0007" | 2 1/2" | #3 | 0.213 | Wire | €11.18 | |
| 70104 | 1 7/8" | #4 | 1 1/4" | -0" to +0.0007" | 2 1/2" | #4 | 0.209 | Wire | €11.18 | |
| 70105 | 1 7/8" | - | - | - | 2 1/2" | #5 | 0.205" | Wire | €11.18 | |
| 70106 | 1 7/8" | #6 | 1 1/4" | -0" to +0.0007" | 2 1/2" | #6 | 0.204 | Wire | €11.18 | |
| 70107 | 1 13/16" | #7 | 1 3/16" | -0" to +0.0007" | 2 7/16" | #7 | 0.201 | Wire | €10.09 |
