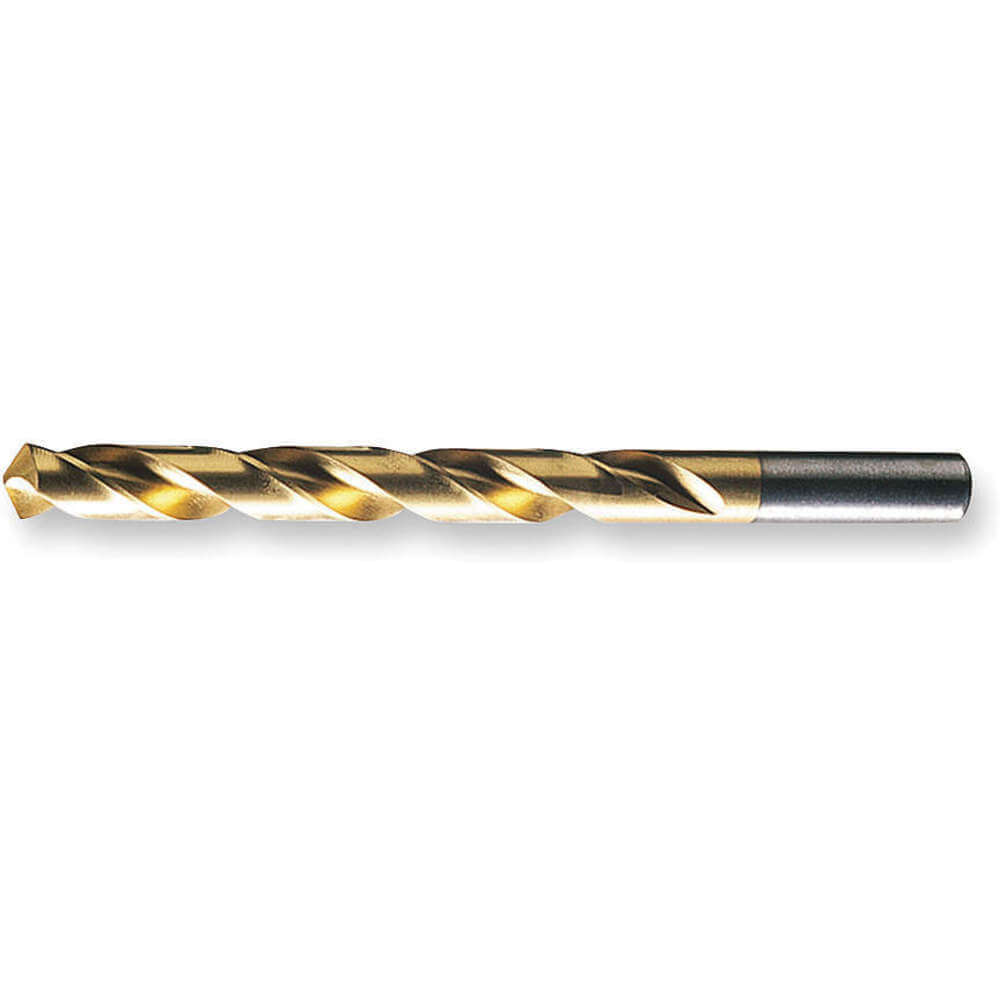

CHICAGO-LATROBE 70102 Jobber Bit #2 High Speed Steel
Item: AB3RPRModel: 70102Cross Ref: 1V721
7 In Stock
Ships within 2 days via
10.00% off
€10.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.221 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Wire Size |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #2 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0664" |
| Finish | Tin Coat |
| Finish - Machining | Tin |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150T |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 1 31/32" |
| Measurement System | Wire |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 7/8" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 15TN Series |
| Shank Dia. | 0.221" |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #2 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 12.75 |
| Ship width (cm) | 0.76 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Overall Length | Drill Bit Size | Flute Length | Shank Dia. | Max. Drilling Depth | Shank Length | Drill Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 70101 | 0.228 | 3 7/8" | #1 | - | 0.228" | - | 1 1/4" | -0" to +0.0007" | €11.18 | |
| 70103 | 0.213 | 3 3/4" | #3 | 2 1/2" | 0.213" | 1 7/8" | 1 1/4" | -0" to +0.0007" | €11.18 | |
| 70104 | 0.209 | 3 3/4" | #4 | 2 1/2" | - | 1 7/8" | 1 1/4" | -0" to +0.0007" | €11.18 | |
| 70105 | 0.205" | 3 3/4" | - | 2 1/2" | - | 1 7/8" | - | - | €11.18 | |
| 70106 | 0.204 | 3 3/4" | #6 | 2 1/2" | 0.204" | - | 1 1/4" | -0" to +0.0007" | €11.18 | |
| 70107 | 0.201 | 3 5/8" | #7 | 2 7/16" | 0.201" | - | 1 3/16" | -0" to +0.0007" | €10.09 | |
| 70108 | 0.199 | 3 5/8" | #8 | 2 7/16" | 0.199" | - | 1 3/16" | -0" to +0.0007" | €10.09 |
