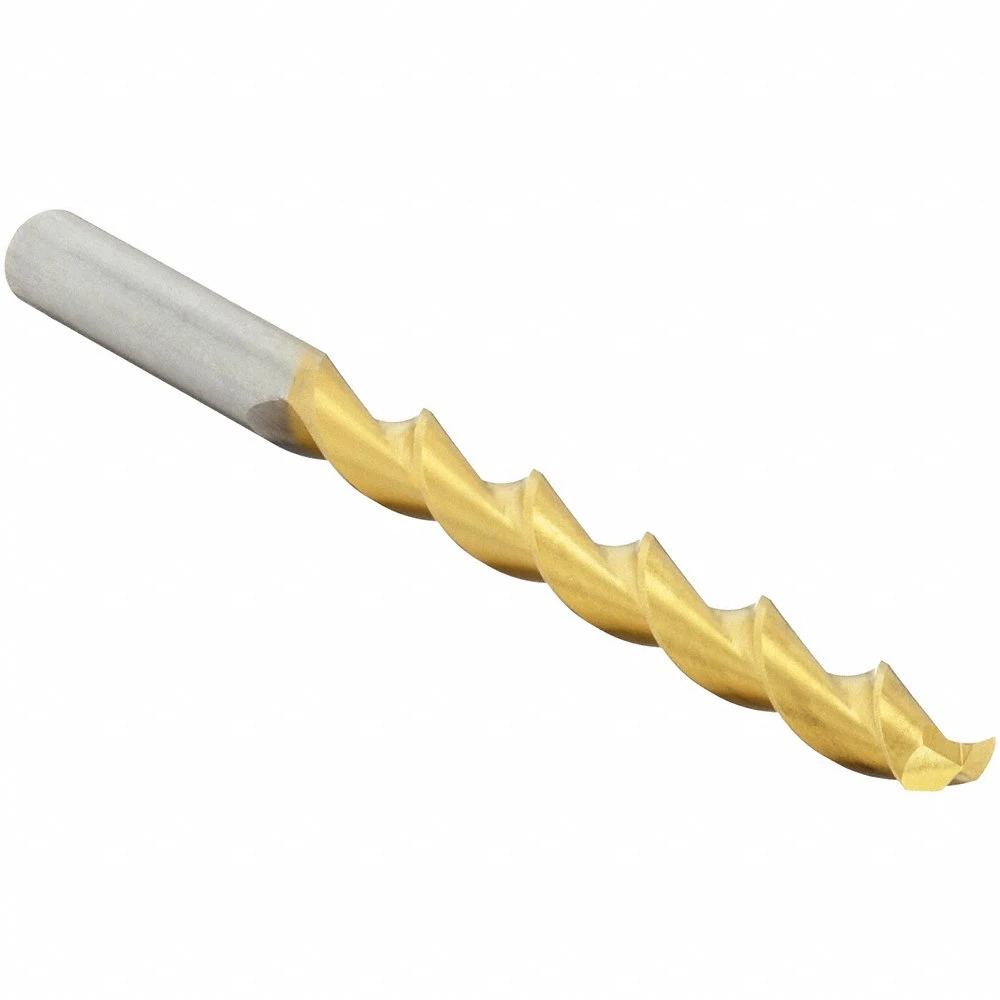

CHICAGO-LATROBE 54083 Jobber Length Drill Bit, 1/16 Inch Size Drill Bit Size, 7/8 Inch Flute Length | CQ8UWR 434M08

CHICAGO-LATROBE 54083 Jobber Length Drill Bit, 1/16 Inch Size Size, 7/8 Inch Flute Length

Item: CQ8UWRModel: 54083Cross Ref: 434M08
7 In Stock

Ships within 2 days via

€9.54
10.00% off
€8.59 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-Hole Drilling
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.0625
Depth X Dia. Ratio 8xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 1/16"
Drill Diameter Tolerance -0" to +0.0005"
Drill Length Class Jobber Length
Drill Point Length 0.0129"
Finish Tin
Finish - Machining Tin
Flute Length 7/8"
Flute Type Spiral
Helix Angle +35° to +45°
Left/right Hand Right
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining General Purpose
Max. Drilling Depth 21/32"
Mfr. Series 150DH-TN Series
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 1 7/8"
Point Angle 135°
Point Type Split Point
Primary Material Application Steel
Primary Material Application Iso Code P
Shank Length 1"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.062"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship height (cm)2.54
Ship length (cm)8.5
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelCoolant FedCutting DirectionFlute LengthFlute TypeOverall LengthDrill Bit SizeDrill Bit Point AngleDrill Bit Point TypePrice
CHICAGO-LATROBE 41020TANG Drill Bit, 5/16 Inch Drill Bit Size, 3-3/16 Inch Flute Length, 4-1/2 Inch Overall Length | CQ8TTN 347KX5 41020TANGNon Coolant ThroughRight Hand3 3/16"Parabolic4 1/2"5/16"135°Split Point€48.45
CHICAGO-LATROBE 47358 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8TWJ 4HAZ8 47358Non-Coolant ThroughRight Hand94 mmSpiral142 mm11.8 mm118°Conventional Point€28.27
CHICAGO-LATROBE 45364 Jobber Drill Bit, 13.80 mm Drill Bit Size, 108 mm Flute Length, 160 mm Overall Length | CQ8TWK 434G09 45364Non-Coolant ThroughRight Hand108 mmSpiral160 mm13.8 mm118°Conventional Point€56.22
CHICAGO-LATROBE 47365 Jobber Drill Bit, 14.25 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWL 434J56 47365Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.25 mm118°Conventional Point€60.16
CHICAGO-LATROBE 47367 Jobber Drill Bit, 14.75 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWM 4HCA4 47367Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.75 mm118°Conventional Point€60.46
CHICAGO-LATROBE 47371 Jobber Drill Bit, 15.75 mm Drill Bit Size, 120 mm Flute Length, 178 mm Overall Length | CQ8TWN 434J58 47371Non-Coolant ThroughRight Hand120 mmSpiral178 mm15.75 mm118°Conventional Point€66.42
CHICAGO-LATROBE 47373 Jobber Drill Bit, 16.25 mm Drill Bit Size, 125 mm Flute Length, 184 mm Overall Length | CQ8TWP 434J59 47373Non-Coolant ThroughRight Hand125 mmSpiral184 mm16.25 mm118°Conventional Point€83.40
