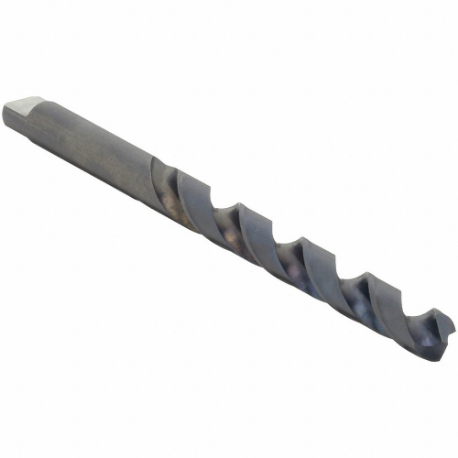

CHICAGO-LATROBE 47464 Jobber Length Drill Bit, 9/64 Inch Size Size, 1-3/4 Inch Flute Length
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.1406 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 9/64" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0422" |
| Finish - Machining | Black Oxide |
| Flute Length | 1 3/4" |
| Flute Type | Spiral |
| Helix Angle | 21° to 34° |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 1 5/16" |
| Measurement System | Fractional Inch |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 2 7/8" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 250AN Series |
| Shank Length | 1 1/8" |
| Shank Type - Machining | Tang Shank |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Cutting Direction | Flute Length | Flute Type | Overall Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41020TANG | Non Coolant Through | Right Hand | 3 3/16" | Parabolic | 4 1/2" | 5/16" | 135° | Split Point | €48.45 | |
 |
47358 | Non-Coolant Through | Right Hand | 94 mm | Spiral | 142 mm | 11.8 mm | 118° | Conventional Point | €28.27 | |
 |
45364 | Non-Coolant Through | Right Hand | 108 mm | Spiral | 160 mm | 13.8 mm | 118° | Conventional Point | €56.22 | |
 |
47365 | Non-Coolant Through | Right Hand | 114 mm | Spiral | 169 mm | 14.25 mm | 118° | Conventional Point | €60.16 | |
|
47367 | Non-Coolant Through | Right Hand | 114 mm | Spiral | 169 mm | 14.75 mm | 118° | Conventional Point | €60.46 | |
|
47371 | Non-Coolant Through | Right Hand | 120 mm | Spiral | 178 mm | 15.75 mm | 118° | Conventional Point | €66.42 | |
|
47373 | Non-Coolant Through | Right Hand | 125 mm | Spiral | 184 mm | 16.25 mm | 118° | Conventional Point | €83.40 |
