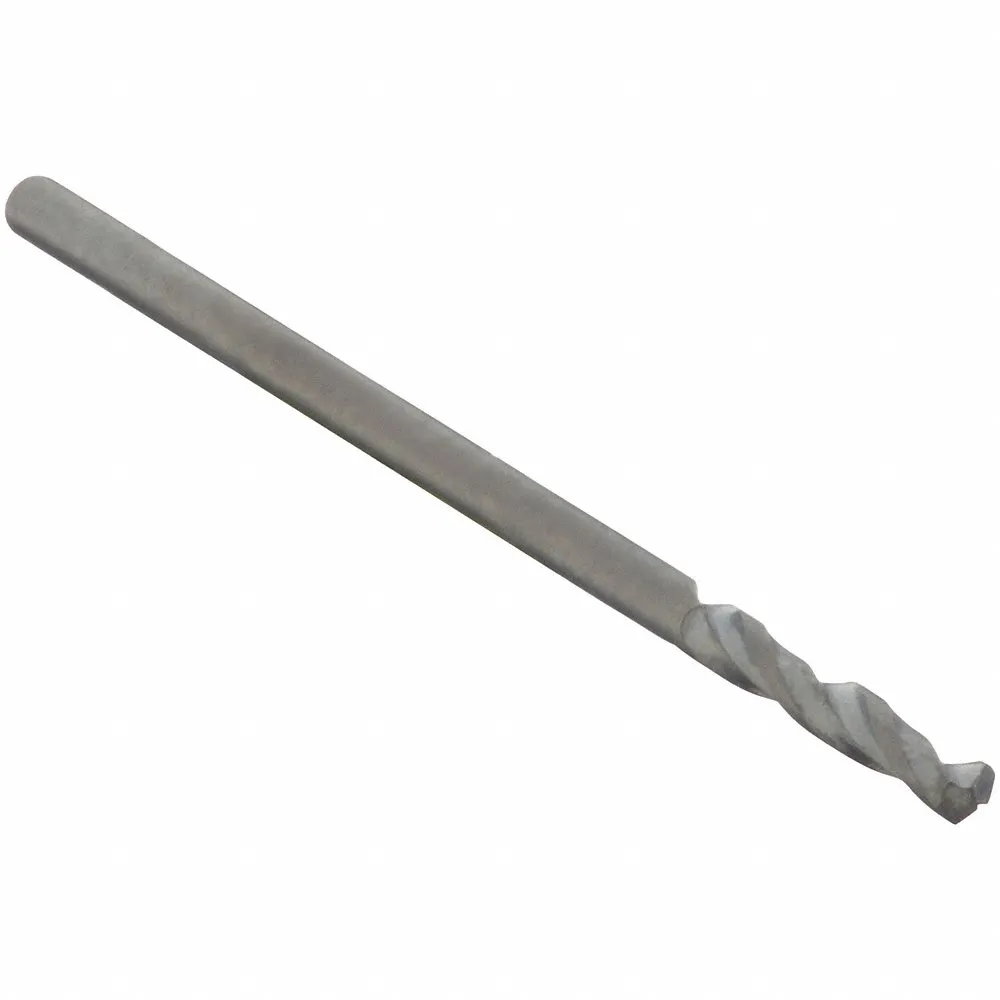

CHICAGO-LATROBE 47242 Jobber Length Drill Bit, 1.95 mm Size, 24 mm Flute Length, High Speed Steel
Item: CX7FNLModel: 47242Cross Ref: 434J54
7 In Stock
Ships within 2 days via
10.00% off
€3.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Carbon Steel, Cast Iron, Non-Ferrous Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0768 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1.95 mm |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0231 mm |
| Finish - Machining | Black Oxide |
| Flute Length | 24 mm |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 45/64" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 49 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 150 Series |
| Shank Length | 25 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
