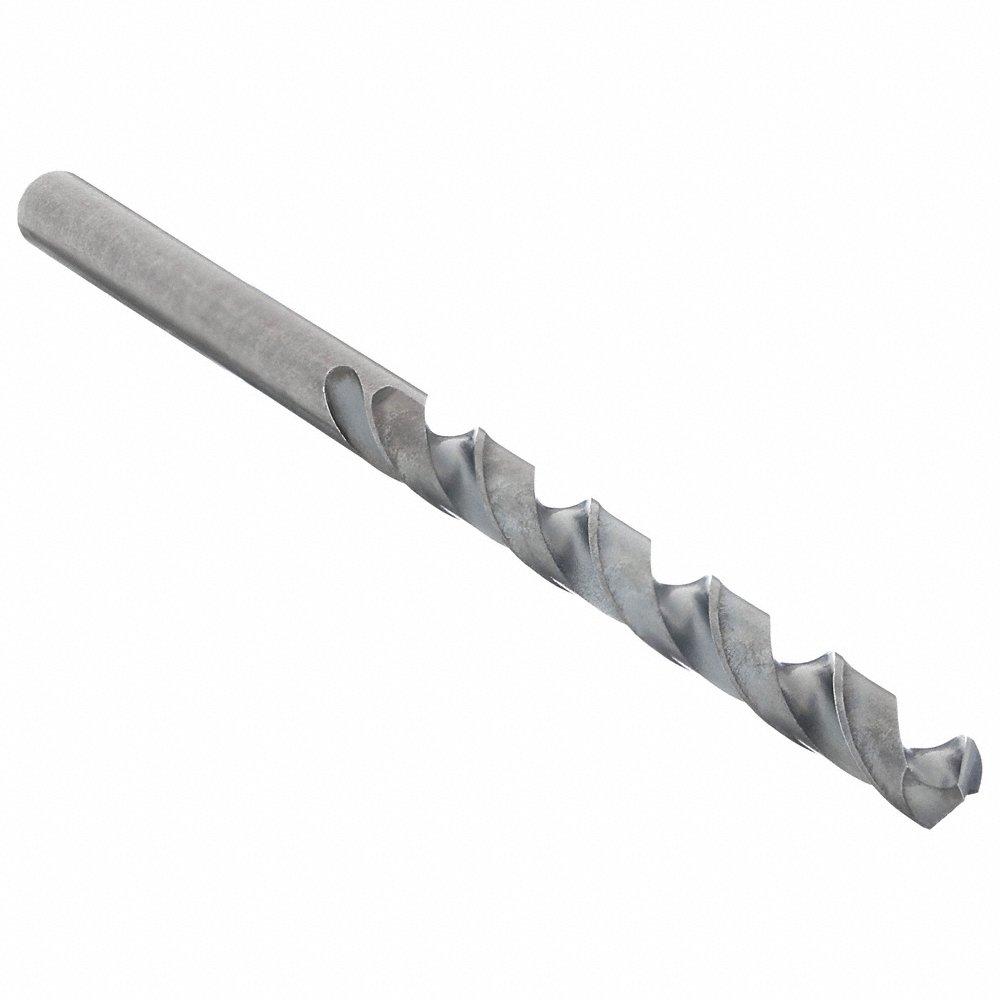

CHICAGO-LATROBE 47225 Jobber Length Drill Bit, 1.10 mm Drill Bit Size, 14 mm Flute Length, High Speed Steel | CQ8UWB 4HAV9

CHICAGO-LATROBE 47225 Jobber Length Drill Bit, 1.10 mm Size, 14 mm Flute Length, High Speed Steel

Item: CQ8UWBModel: 47225Cross Ref: 4HAV9
7 In Stock

Ships within 2 days via

€3.92
10.00% off
€3.52 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application For Non-Ferrous Materials
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.0433
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Metric
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 118°
Drill Bit Point Type Conventional Point
Drill Bit Size 1.1 mm
Drill Diameter Tolerance -0" to +0.0005"
Drill Length Class Jobber Length
Drill Point Length 0.013 mm
Finish Black Oxide
Finish - Machining Black Oxide
Flute Length 14 mm
Flute Type Spiral
Grade General Purpose
Helix Angle +21° to +34°
List Number 150
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining General Purpose
Max. Drilling Depth 13/32"
No. Of Pieces 1
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 36 mm
Point Angle 118°
Point Type Conventional Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Series 150 Series
Shank Length 22 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 1.1 mm
Spiral Direction Right Hand
System Of Measurement Metric
Web Thinning Thinned

Shipping Info:

Ship height (cm)2.54
Ship length (cm)8.5
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelCoolant FedCutting DirectionFlute LengthFlute TypeOverall LengthDrill Bit SizeDrill Bit Point AngleDrill Bit Point TypePrice
CHICAGO-LATROBE 41020TANG Drill Bit, 5/16 Inch Drill Bit Size, 3-3/16 Inch Flute Length, 4-1/2 Inch Overall Length | CQ8TTN 347KX5 41020TANGNon Coolant ThroughRight Hand3 3/16"Parabolic4 1/2"5/16"135°Split Point€48.45
CHICAGO-LATROBE 47358 Jobber Drill Bit, 11.80 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ8TWJ 4HAZ8 47358Non-Coolant ThroughRight Hand94 mmSpiral142 mm11.8 mm118°Conventional Point€28.27
CHICAGO-LATROBE 45364 Jobber Drill Bit, 13.80 mm Drill Bit Size, 108 mm Flute Length, 160 mm Overall Length | CQ8TWK 434G09 45364Non-Coolant ThroughRight Hand108 mmSpiral160 mm13.8 mm118°Conventional Point€56.22
CHICAGO-LATROBE 47365 Jobber Drill Bit, 14.25 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWL 434J56 47365Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.25 mm118°Conventional Point€60.16
CHICAGO-LATROBE 47367 Jobber Drill Bit, 14.75 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CQ8TWM 4HCA4 47367Non-Coolant ThroughRight Hand114 mmSpiral169 mm14.75 mm118°Conventional Point€60.46
CHICAGO-LATROBE 47371 Jobber Drill Bit, 15.75 mm Drill Bit Size, 120 mm Flute Length, 178 mm Overall Length | CQ8TWN 434J58 47371Non-Coolant ThroughRight Hand120 mmSpiral178 mm15.75 mm118°Conventional Point€66.42
CHICAGO-LATROBE 47373 Jobber Drill Bit, 16.25 mm Drill Bit Size, 125 mm Flute Length, 184 mm Overall Length | CQ8TWP 434J59 47373Non-Coolant ThroughRight Hand125 mmSpiral184 mm16.25 mm118°Conventional Point€83.40
