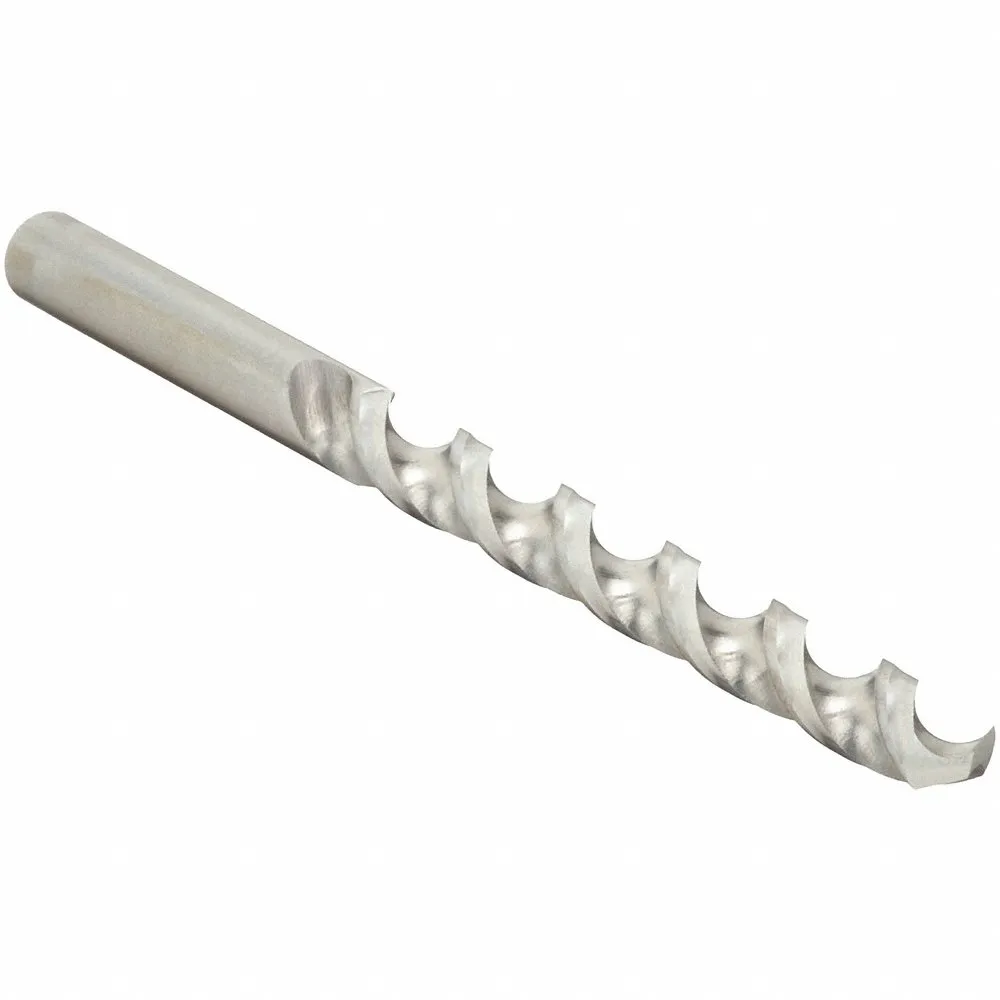

CHICAGO-LATROBE 46176 Jobber Length Drill Bit, F Size, 2-7/8 Inch Flute Length, 4-1/8 Inch Length
Item: CX7FCNModel: 46176Cross Ref: 434H36
7 In Stock
Ships within 2 days via
10.00% off
€10.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Chip Ejection, Carbon Steel, Mild Steel, Drilling Low-Tensile Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.257 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | F |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 7/8" |
| Flute Type | Fast Spiral |
| Grade | General Purpose |
| Helix Angle | +35° to +45° |
| Left/right Hand | Right |
| List Number | 150B |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 2 5/32" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 4 1/8" |
| Primary Material Application | Aluminum And Non Ferrous Material, Steel |
| Primary Material Application Iso Code | N, P |
| Series | 150B Series |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.48 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
