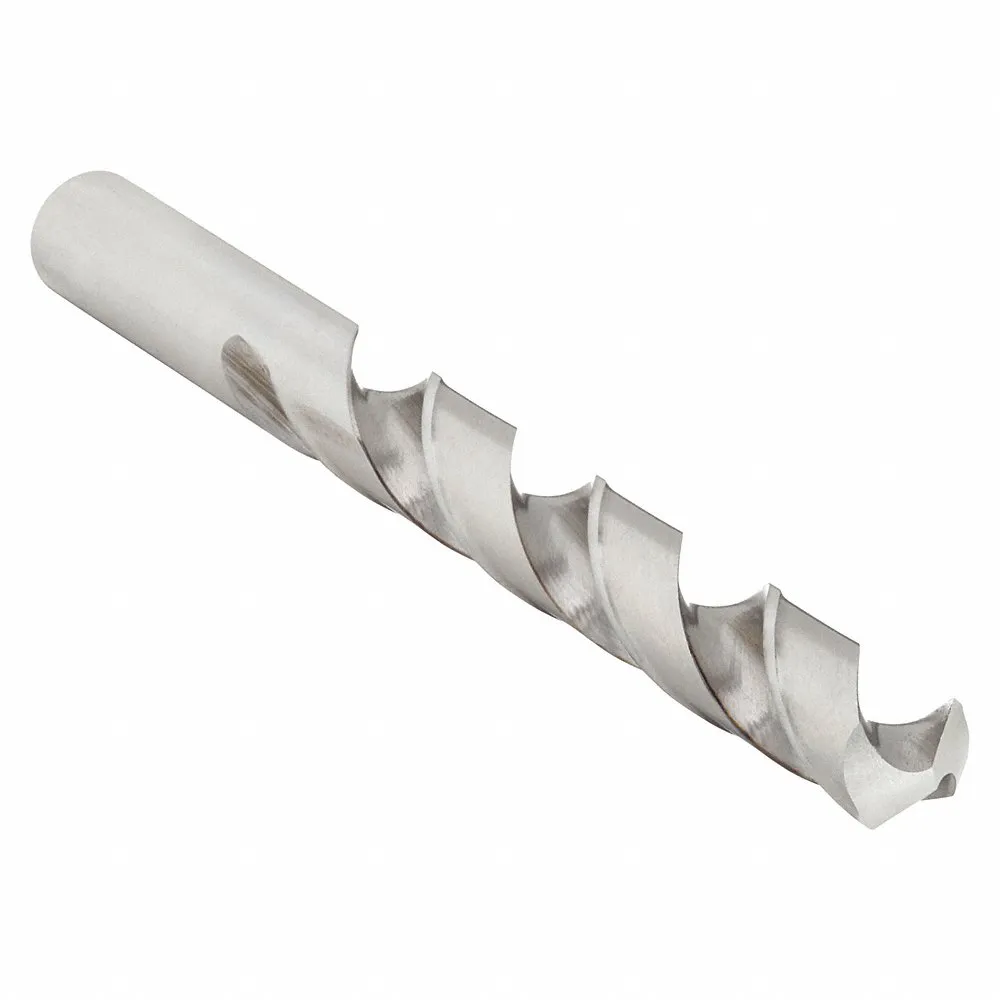

CHICAGO-LATROBE 45366 Jobber Length Drill Bit, 14.50 mm Size, 114 mm Flute Length
Item: CX7EWXModel: 45366Cross Ref: 434G11
7 In Stock
Ships within 2 days via
10.00% off
€53.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | For Drilling Non-Ferrous Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5709 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 14.5 mm |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1715 mm |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 114 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 150D |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 3 23/64" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 169 mm |
| Primary Material Application | Aluminum And Non Ferrous Material |
| Primary Material Application Iso Code | N |
| Series | 150D Series |
| Shank Length | 55 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
