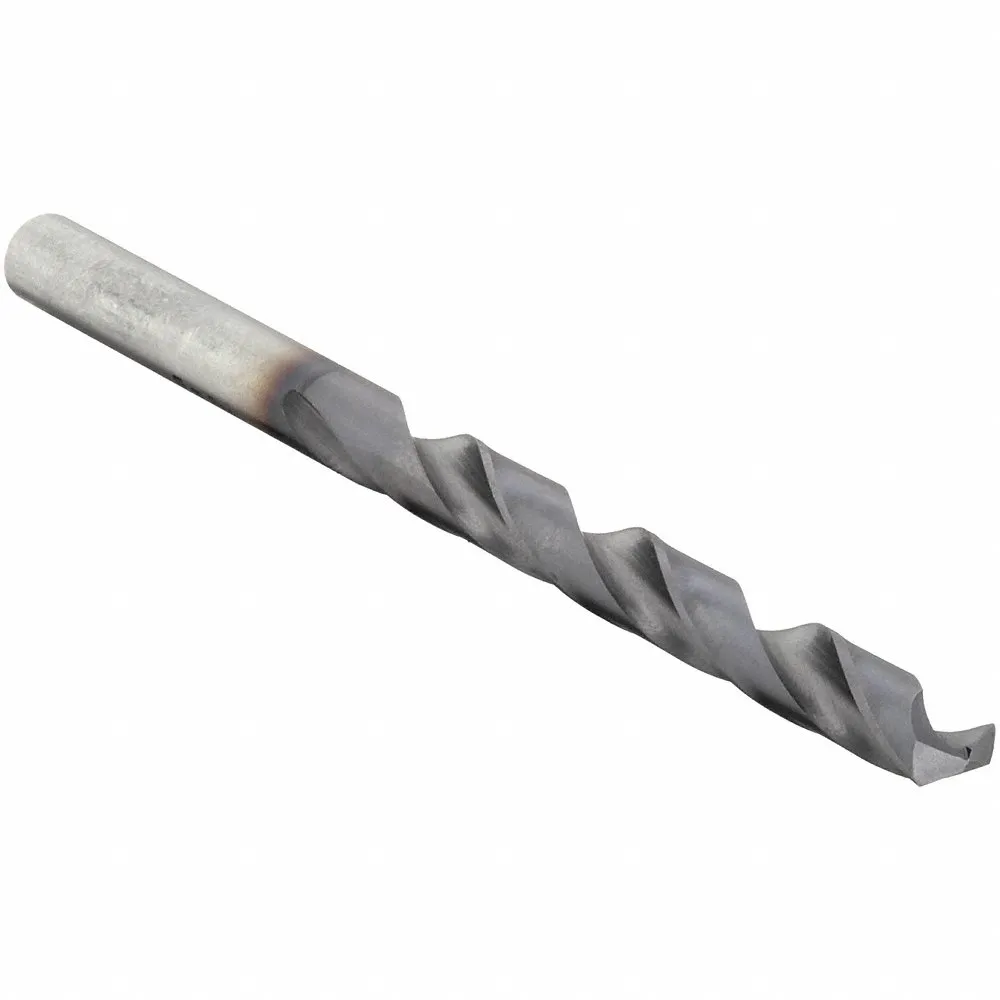

CHICAGO-LATROBE 43771 Jobber Length Drill Bit, A Size, 2 5/8 Inch Flute Length, 7/32 Inch Shank Dia.
Item: CX7DZNModel: 43771Cross Ref: 10P060
7 In Stock
Ships within 2 days via
10.00% off
€17.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.234 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | A |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Finish - Machining | TiCN |
| Flute Length | 2 5/8" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 7/8" |
| Number Of Flutes | 2 |
| Overall Length | 3 7/8" |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P |
| Series | 150ASP-TC |
| Shank Dia. | 7/32" |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.84 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
