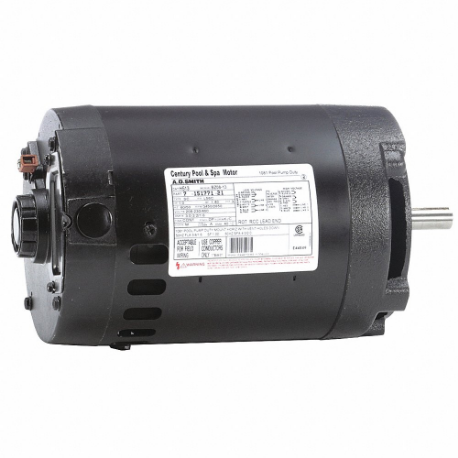

CENTURY H513 Pool Pump Motor, Face Mounting, 1 Hp, 1.6 Motor Service Factor, 3, 450 Nameplate Rpm
Get it by Wednesday, Dec 24
10.00% off
€636.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Application | Pumps |
| Bearing Type | Ball |
| Body Dia. | 26.3" |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.2-3/1.6A |
| Height | 24 3/16" |
| Hp | 1 hp |
| Insulation Class | Class A |
| Length Less Shaft | 10 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Pool and Spa Pump |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 5/8" |
| Phase | 3 |
| Service Factor | 1.6 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Shaft Material | Stainless Steel |
| Standards | Csa, Ul |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 27 lbs. |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Design | Motor Mounting Type | Frame | Motor Service Factor | Motor Shaft Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B586 | 208-230V AC | 1 hp | 3450 RPM | Permanent Split Capacitor | Rigid Base | L56HCZ | 1 | Threaded | €719.28 | |
 |
H155 | 208-230/460V AC | 1/2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.6 | Threaded | €557.32 | |
 |
H446 | 208-230/460V AC | 3/4 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.5 | Threaded | €570.65 | |
 |
H506 | 208-230/460V AC | 1 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.4 | Threaded | €702.09 | |
 |
H607 | 208-230/460V AC | 1 1/2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.3 | Threaded | €892.96 | |
 |
H609ES | 230/460V AC | 1 1/2 hp | 3450 RPM | 3-Phase | Face | 56C | 1.3 | Keyed | €923.05 | |
 |
H733 | 200-230/460V AC | 2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.2 | Threaded | €1,060.30 |
