CENTURY B586 Pump Motor, 1 hp, Permanent Split Capacitor, 3450 Rpm, 208 230VAC
Get it by Wednesday, Dec 17
10.00% off
€647.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Frame | L56HCZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.5-4.8A |
| Hp | 1 hp |
| Ins. Class | Class B |
| Length Less Shaft | 10 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 7/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 5/16" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 39 lbs. |
Shipping Info:
| Ship weight (kg) | 39 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Design | Motor Mounting Type | Frame | Motor Service Factor | Motor Shaft Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H155 | 208-230/460V AC | 1/2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.6 | Threaded | €557.32 | |
 |

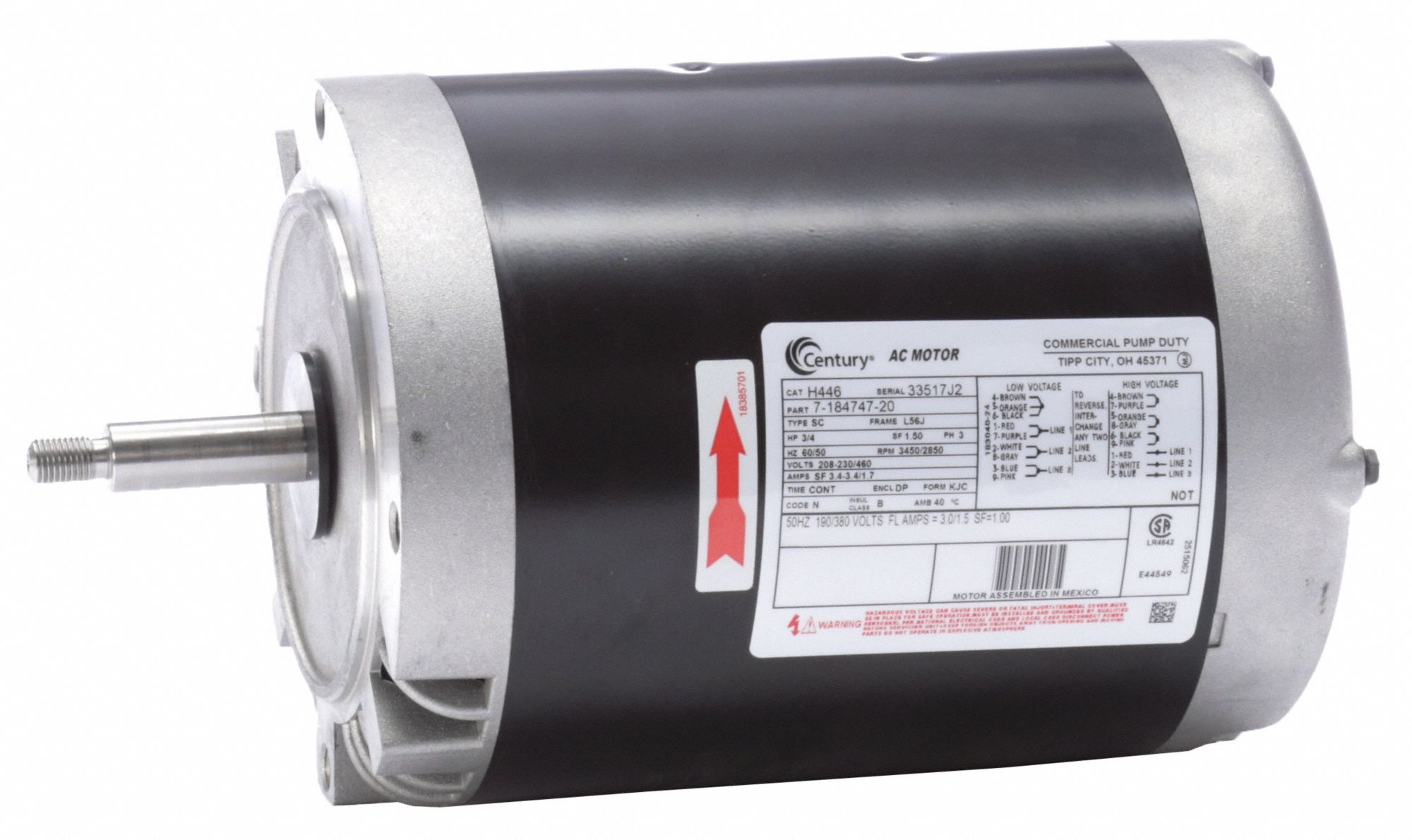

H446 | 208-230/460V AC | 3/4 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.5 | Threaded | €570.65 | |
 |

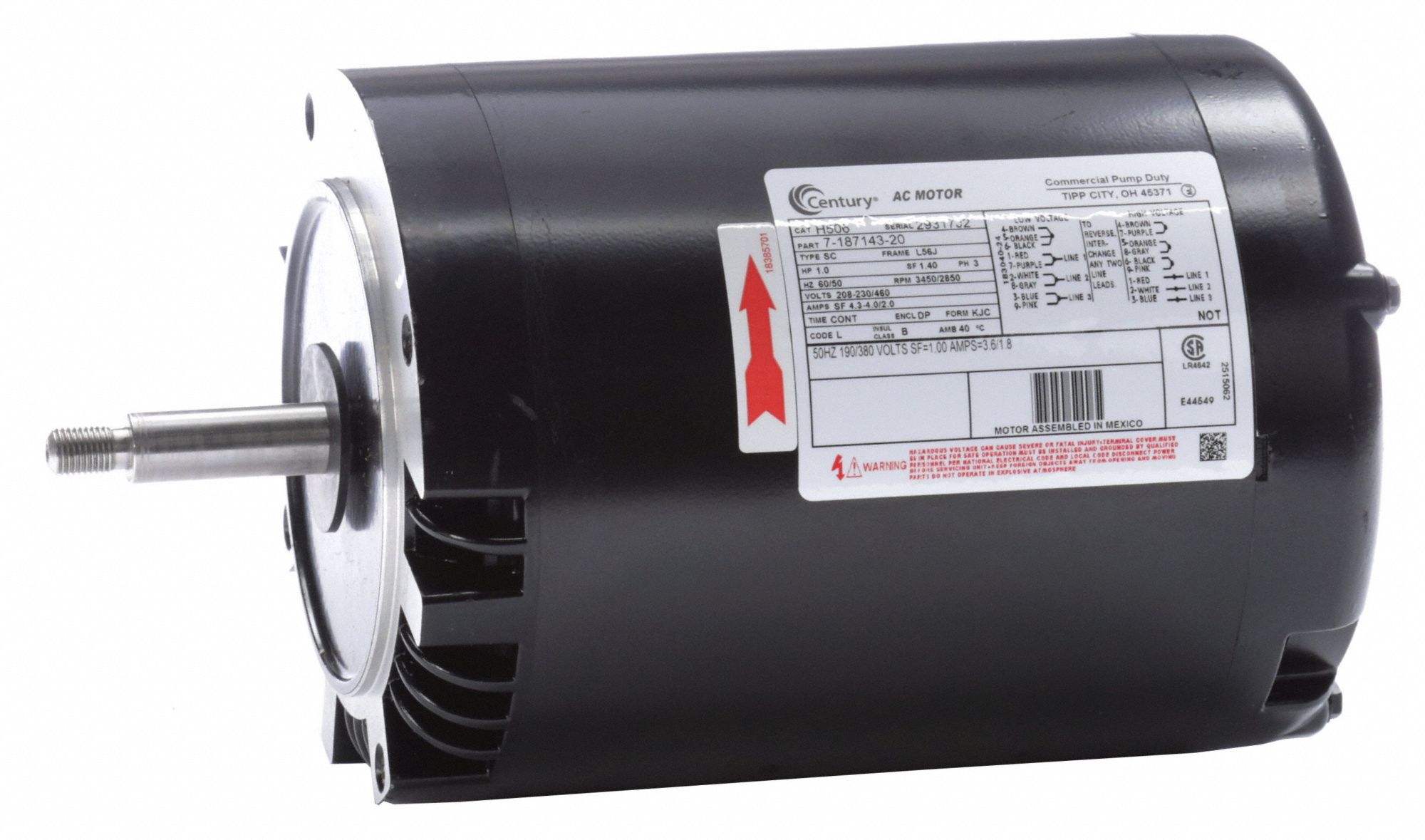

H506 | 208-230/460V AC | 1 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.4 | Threaded | €702.09 | |
 |

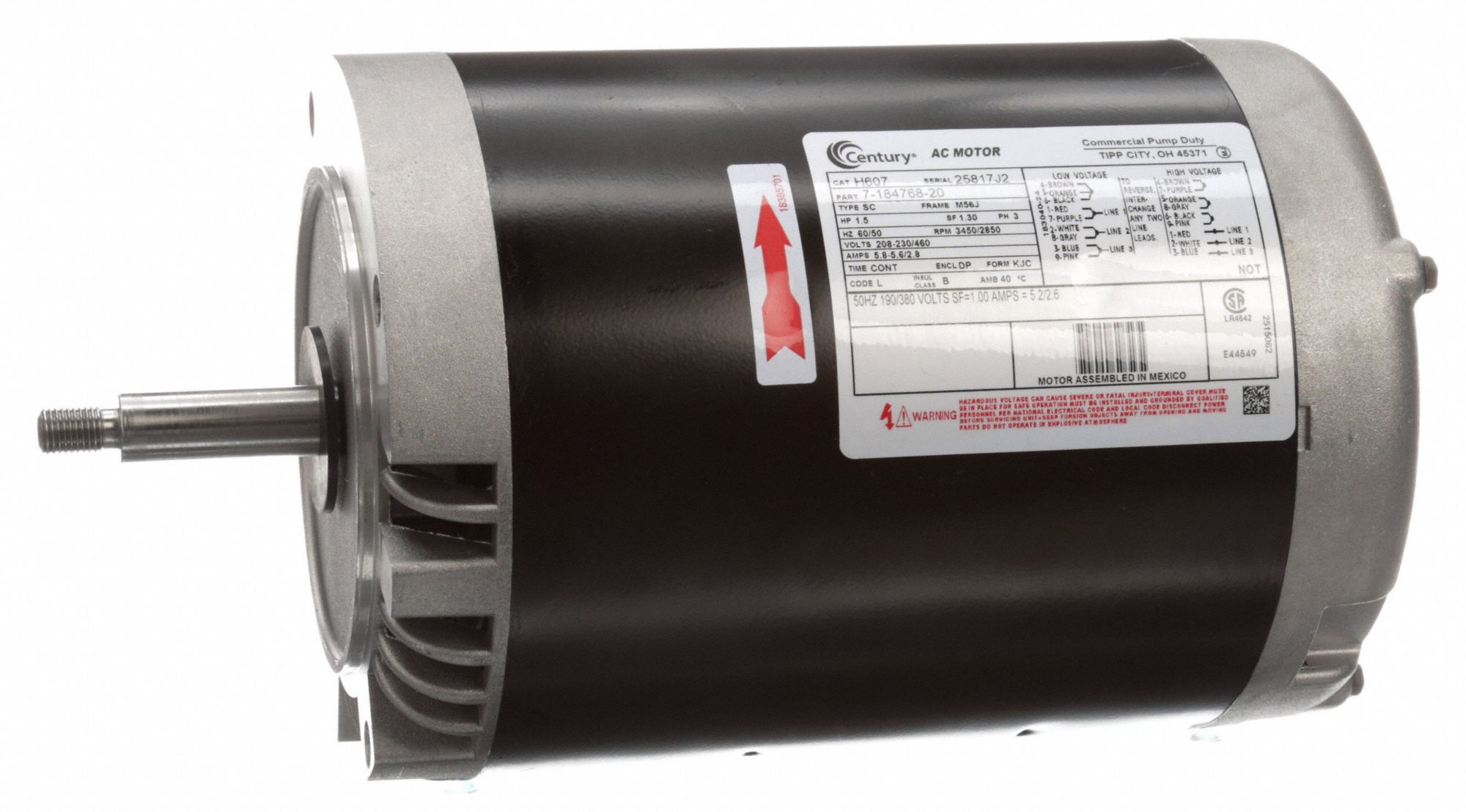

H607 | 208-230/460V AC | 1 1/2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.3 | Threaded | €892.96 | |
 |

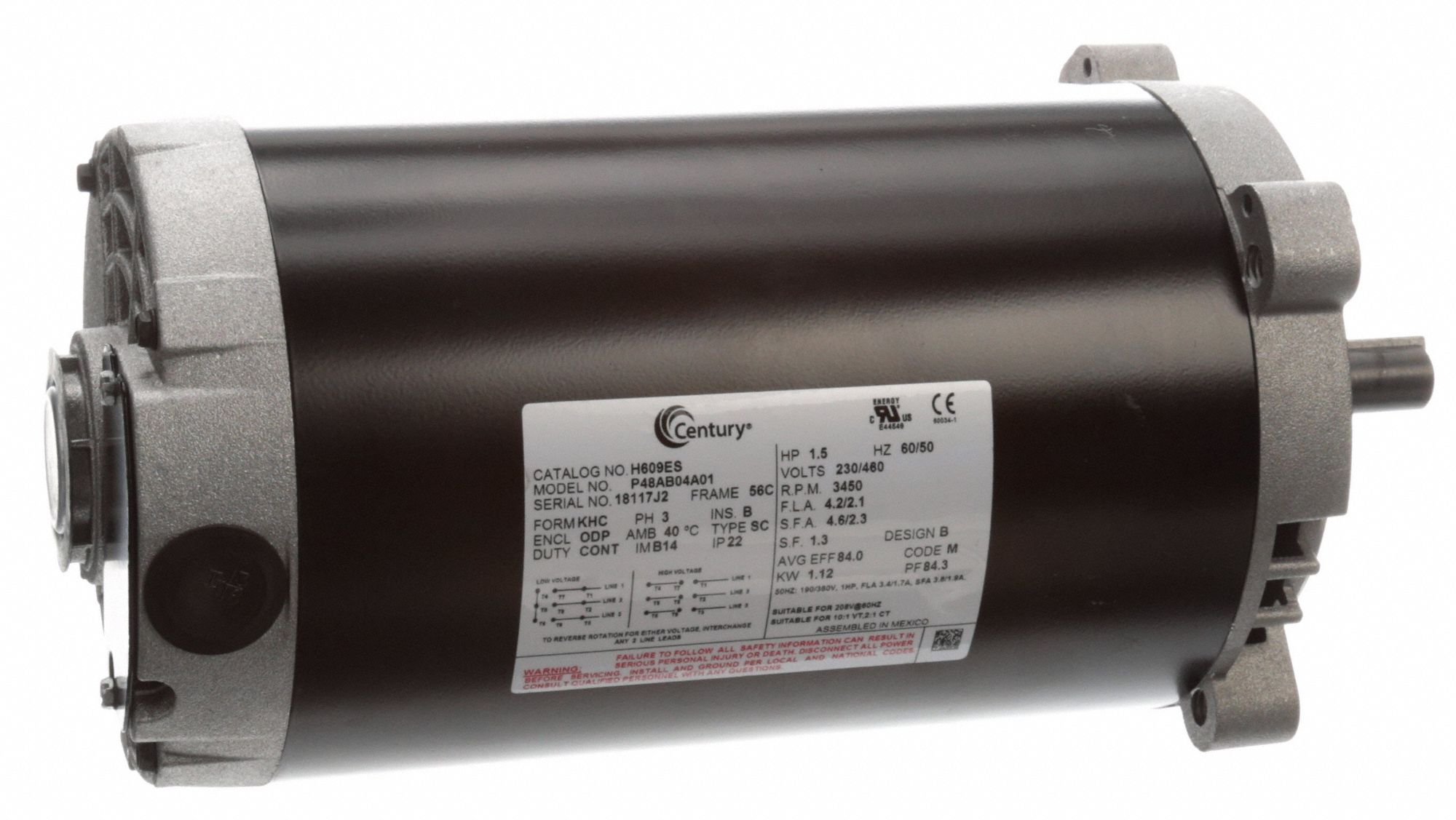

H609ES | 230/460V AC | 1 1/2 hp | 3450 RPM | 3-Phase | Face | 56C | 1.3 | Keyed | €923.05 | |
 |

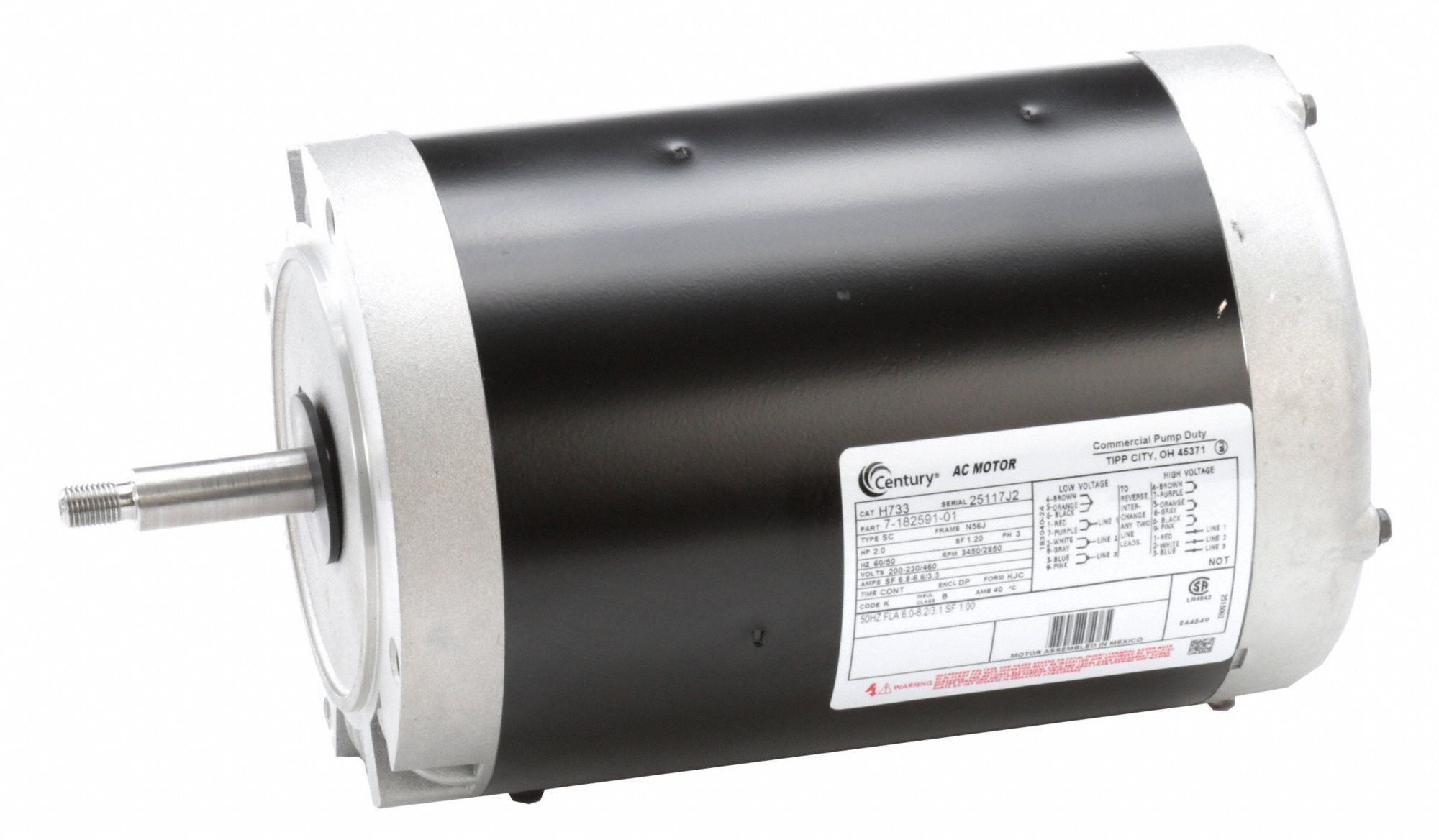

H733 | 200-230/460V AC | 2 hp | 3450/2850 RPM | 3-Phase | Face | 56J | 1.2 | Threaded | €1,060.30 | |
 |

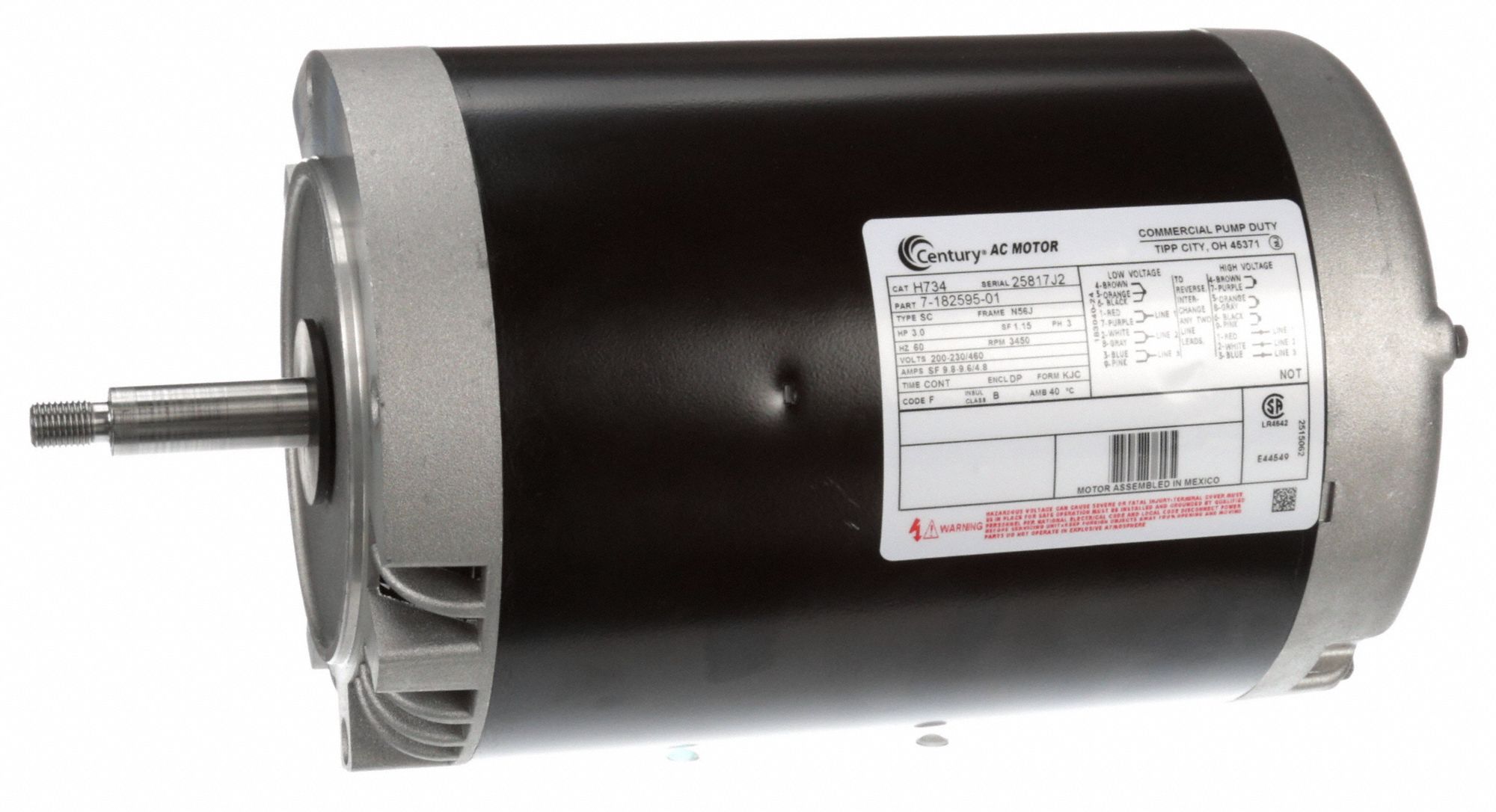

H734 | 200-230/460V AC | 3 hp | 3450 RPM | 3-Phase | Face | 56J | 1.2 | Threaded | €1,260.27 |
