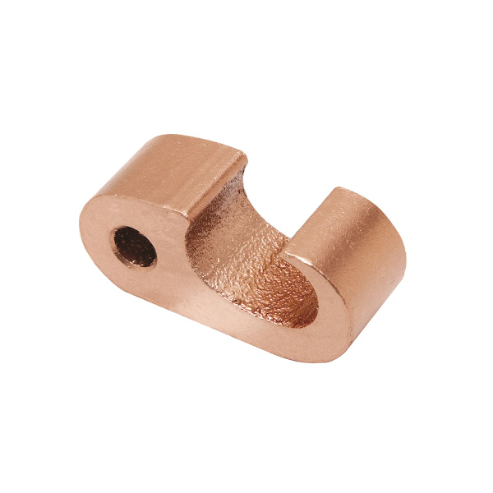

BURNDY YGHP2C2 Compression Connector, C Shape, 6 AWG Run Conductor Size
Get it by Tuesday, Aug 18
€35.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Connector |
| Application | For Direct Burial In Earth And Concrete |
| Certification-csa Approved | Yes |
| Certification-culus | No |
| Certification-etl | No |
| Certification-ul Listed Direct Burial | Yes |
| Certification-ul Recognized | No |
| Conductor Copper Solid Run | 6 |
| Conductor Copper Solid Tap | 6 |
| Conductor Copper Str Run | 6 AWG to 4 AWG , 6, 5, 4, 3, 2 |
| Conductor Copper Str Tap | 6 to 2 , 6, 5, 4, 3, 2 |
| Connector Type | Tap |
| Die Index | O |
| Dimension-b Length | 0.75" |
| Dimension-b Length Fraction | 3/4" |
| Eu Rohs Indicator | Yes |
| Industry Standards | Direct Burial |
| Material | Copper |
| No. Of Crimps Required | 1 |
| Oxide Inhibitor Type | Penetrox E |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Product Datasheet | burndy-yghp2c2.pdf |
| Standards-rohs Compliance Status | CM |
| Trade Name | Hytap |
| Type | Taps |
| Ul Listed | Yes |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 3.58 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Dimension-b Length Fraction | Dimension-b Length | No. Of Crimps Required | Die Index | Certification-csa Approved | Conductor-rebar Run | Conductor-rod Run | Conductor Copper Solid Tap | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| YGHP29C6W6W | 3/4" | 0.75" | 1 | 997 | No | 3, 4 | - | 8 AWG,7 AWG,6 AWG,5 AWG | €131.49 | |
| YGHP58C2W2 | - | - | - | - | - | - | - | - | €52.23 | |
| YGHP34C34 | 1.1" | 1.1" | 3 | 1011 | Yes | 5, 6 | 5/8", 3/4" | - | €91.71 | |
| YGHP34C29 | 3/4" | 0.75" | 1 | 998 | Yes | 5, 6 | 5/8", 3/4" | - | €86.24 | |
| YGHP34C26 | 3/4" | 0.75" | 1 | 998 | Yes | 5, 6 | 5/8", 3/4" | - | €86.24 | |
| YGHP34C2 | 3/4" | 0.75" | 1 | 998 | Yes | 5, 6 | 5/8", 3/4" | 4 AWG,3 AWG,2 AWG | €86.24 | |
| YGHP29C29 | 3/4" | 0.75" | 1 | 997 | Yes | 3, 4 | 1/2", 5/8" | - | €60.39 |
