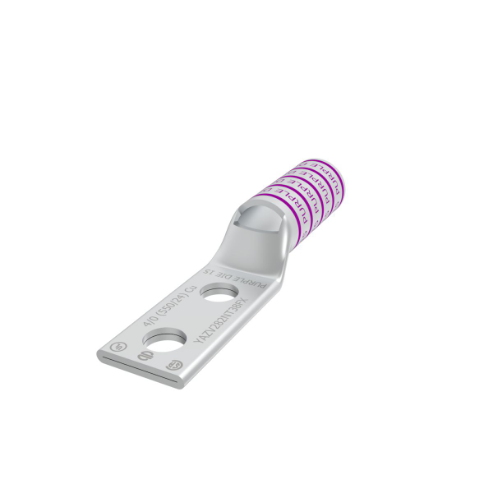

BURNDY YAZV282NT38FX 2 Hole Narrow Tongue Standard Barrel Cu Flex Lug
Item: AB6XGPModel: YAZV282NT38FXCross Ref: 22P087
7 In Stock
Ships within 2 days via
10.00% off
€73.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole Narrow Tongue Long Barrel CU Flex Lug |
| Barrel Od | 0.77" |
| Barrel Outside Diameter | 0.77" |
| Barrel Size | Long |
| Barrel Style | Skived |
| Barrel Type | Long |
| Body Material | Copper |
| Color Code | Purple |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 15 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Stud Size | 3/8" |
| For Wire Size | 4/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 1" |
| Hole Center To End | 0.41" |
| Hole Size | 0.39" |
| Hole To Hole Center | 1" |
| Hole To Hole Center (in.) | 1 |
| Inspection Hole | Yes |
| Length | 4.02" |
| Length (straight Wireway) | 4.02" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 4/0 AWG |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Overall Length | 3.96" |
| Overall Width | 0.94" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Barrel Is Designed With An Internal Chamfer At The Wire Entry To Ensure Smooth Insertion Of The Wire, Preventing Possible Damaging Of The Wire Strands During Insertion, Tin-Zinc Plated For Battery Connectors Or Other Heavy Duty Equipment, To Reduce The Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up To 35 Kv |
| Strip Length | 1 11/16" |
| Stud Size | 3/8" |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.84" |
| Tongue Style | Standard |
| Tongue Thickness | 0.17" |
| Tongue Width | 0.94" |
| Type | Standard |
| Width | 0.94" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.96 |
| Ship length (cm) | 10.06 |
| Ship width (cm) | 2.39 |
| HS code | 8535908020 |
| Country of Origin | US |
