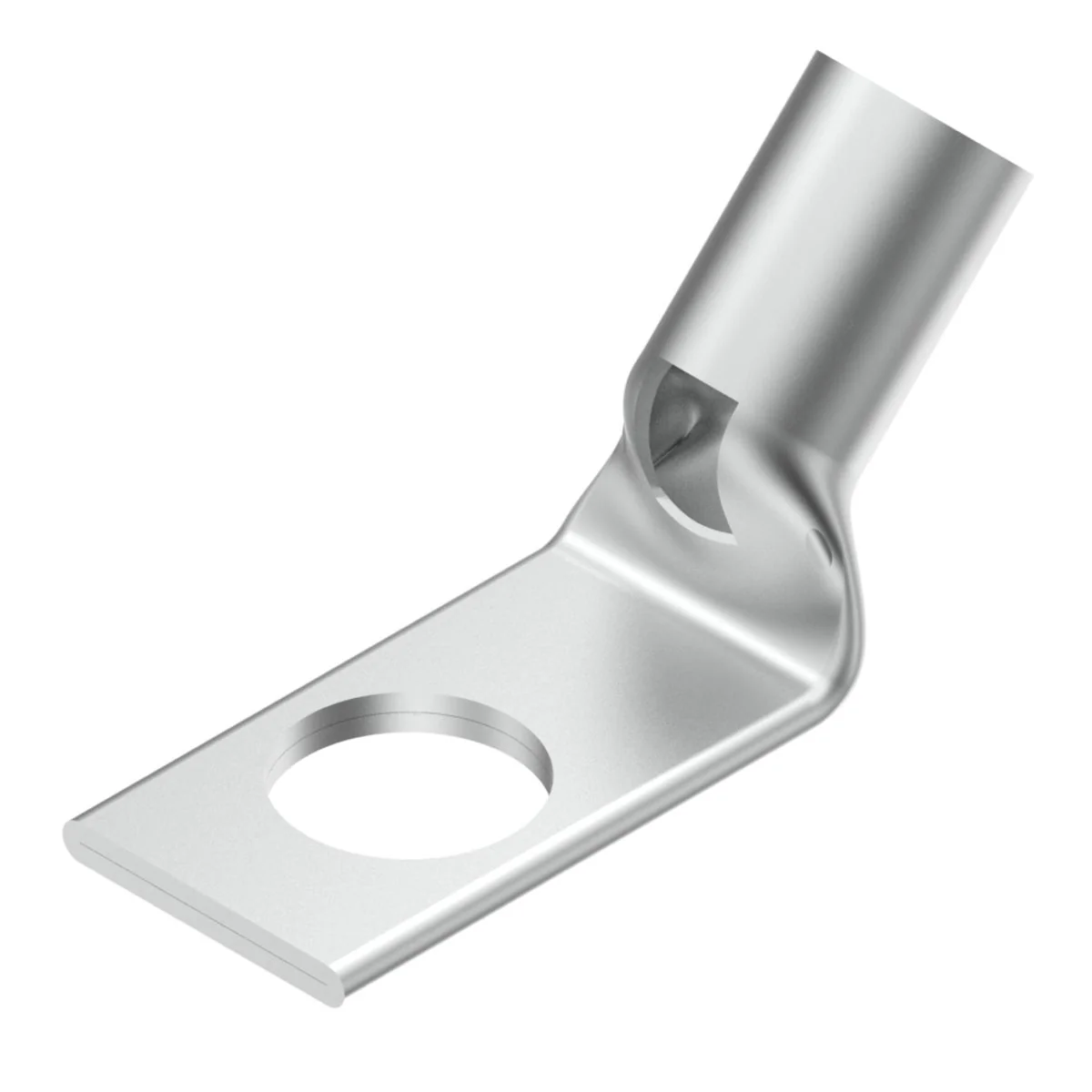

BURNDY YAV26LTC10FX45 Compression Terminal, 2/0 AWG, 10 Stud, Copper, Tin Plated, UL/CSA
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Terminal |
| Application | Wire Termination |
| B Length | 0.81" |
| Barrel Type | Standard |
| Bolt Hole Size | 0.21" |
| Bolt Size | #8 to #10 |
| Color | Black |
| Conductor Type | Code, Flex |
| Connector Type | Standard Barrel |
| Copper Dlo Size | 2/0 AWG |
| Copper Flex G Size | 2/0 AWG |
| Copper Flex G Size Range | 2/0 AWG |
| Copper Flex H Size | 2/0 AWG |
| Copper Flex H Size Range | 2/0 AWG |
| Copper Flex I Size | 2/0 AWG |
| Copper Flex I Size Range | 2/0 AWG |
| Copper Flex K Size | 2/0 AWG |
| Copper Flex K Size Range | 2/0 AWG |
| Copper Flex M Size | 2/0 AWG |
| Copper Str Compact Size | 2/0 AWG |
| Copper Str Navy Size | 125 |
| Copper Str Navy Size Range | 125 Navy |
| Copper Str Size | 2/0 AWG |
| Copper Str Size Range | 2/0 AWG |
| Copper Weld Str Size | 2/0 F AWG, 2/0 G AWG, 2/0 J AWG, 2/0 K AWG, 2/0 V AWG |
| Die Index | 13 |
| Feature Barrel Style | Chamfered |
| Finish | TiN Plated |
| Hole Size | #10 |
| L Overall Length | 44 mm |
| Material | Copper |
| Max. Voltage | 35000V |
| N | 1/4" |
| No. Of Holes | 1 |
| Outside Dia. | 0.63" |
| Overall Length | 1.73" |
| Pad Width | 0.93" |
| Plated | Yes |
| Product Datasheet | burndy-yav26ltc10fx45.pdf |
| Size | 2/0 AWG |
| Strip Length | 13/16" |
| Stud Size | #10 |
| Tongue Angle | 45° |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Voltage | 35 kV |
| Wire Size | 2/0 AWG |
| Z | 0.27" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 4.39 |
| Ship width (cm) | 5.08 |
