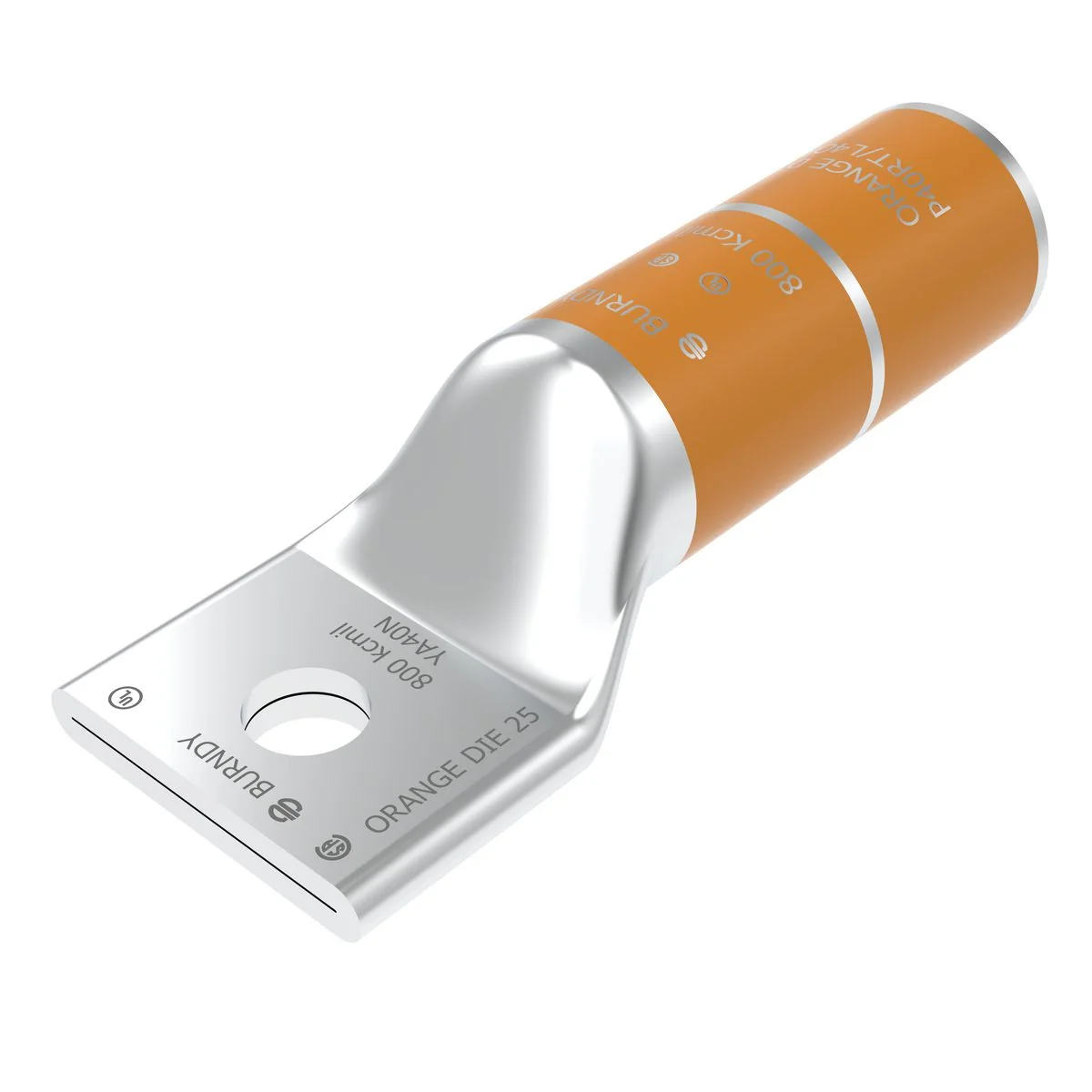

BURNDY YA40N Compression Terminal, 800 kcmil, 1 Hole, 1/2 Inch Stud, Long Barrel, Tin Plated
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Terminal |
| Application | Wire Termination |
| B Length | 2 15/16" |
| Barrel Type | Long |
| Bolt Hole Size | 0.52" |
| Bolt Size | 1/2" |
| Color | Orange |
| Conductor Type | Code |
| Connector Type | Long Barrel |
| Copper Str Size | 800 kcmil |
| Die Index | 25 |
| Feature Barrel Style | Chamfered |
| Finish | TiN Plated |
| Hole Size | 1/2" |
| L Overall Length | 132 mm |
| Material | Copper |
| Max. Voltage | 35000V |
| N | 0.63" |
| No. Of Holes | 1 |
| Outside Dia. | 1.35" |
| Overall Length | 5.19" |
| Pad Width | 1.98" |
| Plated | Yes |
| Product Datasheet | burndy-ya40n.pdf |
| Size | 800 kcmil |
| Strip Length | 3" |
| Stud Size | 1/2" |
| Thread Size | 1/2" |
| Tongue Angle | 180° |
| Trade Name | Hylug |
| Type | Long Barrel, Tin Plated |
| Voltage | 35 kV |
| Z | 0.64" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 7.62 |
