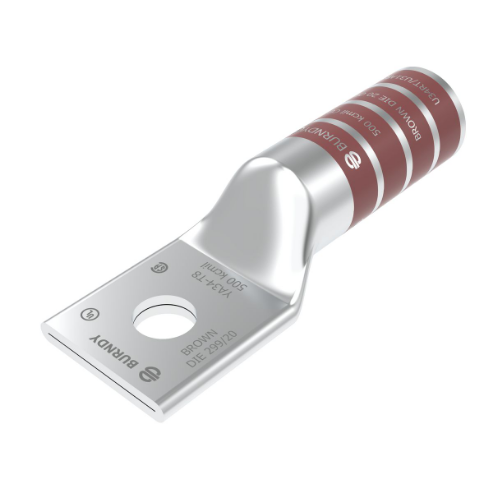

BURNDY YA34T8 Standard Barrel Cu Lug 1 Hole 500 Kcmil
Item: AB6RMAModel: YA34T8Cross Ref: 22C382
7 In Stock
Ships within 2 days via
10.00% off
€79.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Standard Barrel CU Lug |
| Barrel Od | 1.06" |
| Barrel Outside Diameter | 1.06" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 500 kcmil |
| Cable Size Code | 500 kcmil |
| Color Code | Brown |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 20, 299 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 3/4" |
| Hole Size | 14/25" |
| Inspection Hole | No |
| Length | 4.47" |
| Length (straight Wireway) | 4.47" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Number Of Holes | 1 |
| Overall Length | 4.47" |
| Overall Width | 1 14/25" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.52" |
| Tongue Style | Standard |
| Tongue Thickness | 0.22" |
| Tongue Width | 1.55" |
| Width | 1 14/25" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 11.35 |
| Ship width (cm) | 3.96 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Peep Hole | Hole Center To End | Number Of Holes | Hole Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6CLBOX | Blue | 1/4" | 6 AWG | Yes | 0.31" | 1 | 0.27" | - | €7.68 | |
 |
YA8CL1BOX | Red | 1/4" | 8 AWG | Yes | 1/4" | 1 | 0.27" | 1.26" | €7.17 | |
 |
YA2CL4BOX | Brown | 3/8" | 2 AWG | Yes | 0.41" | 1 | 2/5" | 2.06" | €19.22 | |
|
YA6CL4BOX | Blue | 3/8" | 6 AWG | Yes | 0.41" | 1 | 0.41" | 1.62" | €9.00 | |
 |
YA4CLBOX | Gray | 1/4" | 4 AWG | Yes | 0.31" | 1 | 0.27" | 1.74" | €8.95 | |
|
YA4CL4BOX | Gray | 3/8" | 4 AWG | Yes | 0.41" | 1 | 2/5" | 1.92" | €9.46 | |
|
YA2CL2BOX | Brown | 1/4" | 2 AWG | Yes | 0.31" | 1 | 0.27" | 1.88" | €17.89 |
