BURNDY YA26L2NT14 2 Hole Narrow Tongue Standard Barrel Cu Lug
Item: AB6XGNModel: YA26L2NT14Cross Ref: 22P086
7 In Stock
Ships within 2 days via
10.00% off
€44.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole Narrow Tongue Standard Barrel CU Lug |
| Barrel Length | Short |
| Barrel Od | 14/25" |
| Barrel Outside Diameter | 14/25" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Black |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 13 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| For Stud Size | 1/4" |
| For Wire Size | 2/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 5/8" |
| Hole Center To End | 1/4" |
| Hole Size | 0.27" |
| Hole To Hole Center (in.) | 5/8 |
| Hole To Hole Center (in.) | 0.625" |
| Inspection Hole | Yes |
| Length | 2.66" |
| Length (straight Wireway) | 2.66" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 2/0 AWG |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Overall Length | 2.66" |
| Overall Width | 12/25" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Barrel Is Designed With An Internal Chamfer At The Wire Entry To Ensure Smooth Insertion Of The Wire, Preventing Possible Damaging Of The Strands, Electro-Tin Plated Unless Otherwise Specified To Reduce Galvanic Corrosion (Bimetallic) And Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up To 35 Kv |
| Strip Length | 1" |
| Stud Size | 1/4" |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.49" |
| Tongue Style | Narrow |
| Tongue Thickness | 0.12" |
| Tongue Width | 0.48" |
| Width | 12/25" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.42 |
| Ship length (cm) | 6.76 |
| Ship width (cm) | 1.22 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Hole Center To End | Overall Length | Strip Length | Hole Size | Connector Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

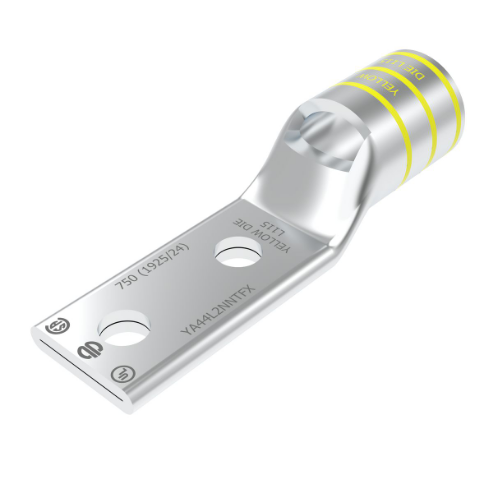

YA44L2NNTFX | Yellow | 1/2" | 0.63" | 5.74" | 1 5/8" | 13/25" | Straight Barrel | Copper | €495.39 |
