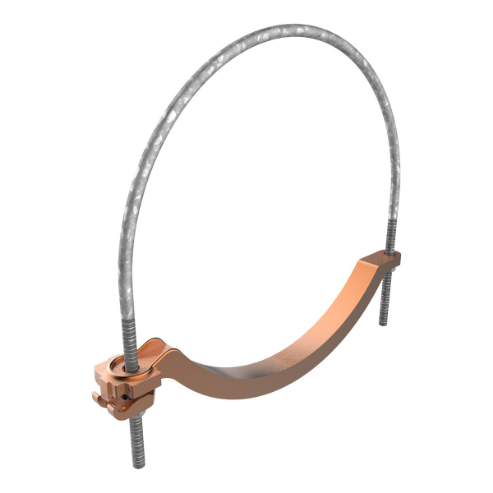

BURNDY GAR3907 Pipe Ground Clamp 4AWG W 10In
Item: AB6QYUModel: GAR3907Cross Ref: 22C044
7 In Stock
Ships within 2 days via
10.00% off
€405.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Ground Clamp |
| Accessory Type | Ground Clamp |
| Body Material | Copper Alloy |
| Conductor Size | 4 AWG to 4/0 AWG |
| For Maximum Ground Conductor Wire Size | 4/0 AWG |
| For Maximum Pipe Size | 8" |
| For Minimum Ground Conductor Wire Size | 4 AWG |
| For Minimum Pipe Size | 8" |
| For Use With | Copper Conductors, Pipe |
| Grounding Wire Size | 4 AWG to 4/0 AWG |
| Grounding Wires Connected To | 8" Pipe |
| Material | Copper |
| Min. Conductor Size | 4 AWG |
| Number Of Grounding Wires | 1 |
| Number Of Wires | 1 |
| Overall Height | 10" |
| Overall Length | 1 3/4" |
| Overall Width | 10 5/8" |
| Terminal Material | Copper Alloy |
| Torque | 240 lbs.-in. |
| Type | Commercial |
| Type - Grounding Connector | Mechanical |
| Width | 10" |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 26.97 |
| HS code | 8535908060 |
| Country of Origin | US |
Product Variants
| Model | Body Material | Overall Length | Min. Conductor Size | Height | Rod Dia. | Type | Number Of Wires | Max. Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GAR6426 | Copper Alloy | 1 9/16" | 4 AWG | - | - | Commercial | - | - | €140.79 | |
| GAR6429 | Copper Alloy | 1 13/16" | 2/0 AWG | - | - | Commercial | - | 250 kcmil | €147.01 | |
| GAR1826 | Copper | 1 9/16" | 4 AWG | - | - | Commercial | 1 | - | €224.15 | |
| GAR1726 | Copper | - | 4 AWG | - | 1 5/8" to 1 7/8" | Commercial | 1 | - | €209.32 | |
| GAR1426 | Copper | 1 9/16" | - | - | - | Commercial | 1 | - | €180.70 | |
| GAR1526 | Copper | 1 9/16" | 4 AWG | - | - | Commercial | 1 | - | €191.03 | |
| GAR1429 | Copper | 1 13/16" | 2/0 AWG | - | - | Commercial | 1 | 250 kcmil | €173.42 |
