BURNDY GAR3902TC Pipe Ground Clamp 3.75In
Item: AB6QYYModel: GAR3902TCCross Ref: 22C051
7 In Stock
Ships within 2 days via
5.00% off
€229.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Ground Clamp |
| Accessory Type | Ground Clamp |
| Body Material | Copper Alloy |
| Bolt Size | 3/8" |
| Conductor Size | 4 AWG to 4/0 AWG |
| For Max. Ground Conductor Wire Size | 750 kcmil |
| For Max. Pipe Size | 1" |
| For Min. Ground Conductor Wire Size | 8 AWG |
| For Min. Pipe Size | 1/2" |
| For Rod Dia. | 5/6" to 1 1/3" |
| For Use With | Copper Conductors, Ground Rods, Pipes |
| Grounding Wire Size | 8 AWG to 750 kcmil |
| Grounding Wires Connected To | 1/2" To 1" Pipe |
| Length | 3 3/4" |
| Material | Copper |
| Min. Conductor Size | 4 AWG |
| No. Of Grounding Wires | 1 |
| No. Of Holes | 3 |
| No. Of Wires | 1 |
| Overall Height | 3 1/2" |
| Overall Length | 2 1/2" |
| Overall Width | 3 3/4" |
| Product Datasheet | burndy-gar3902tc.pdf |
| Terminal Material | Copper Alloy |
| Torque | 240 lbs.-in. |
| Type | Commercial |
| Type-grounding Connector | Mechanical |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.72 |
| HS code | 8535908060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Overall Width | Overall Height | For Max. Pipe Size | For Rod Dia. | Grounding Wires Connected To | Height | Terminal Material | No. Of Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

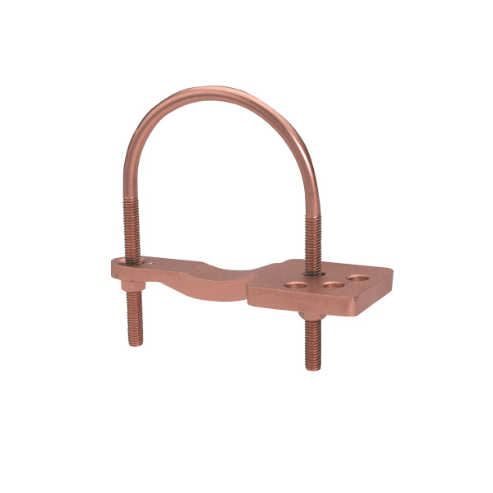

| GAR3905TC | 8" | 7 1/2" | 5" | 4 1/2" to 5 5/9" | 4" To 5" Rod | - | Copper Alloy | 3 | €684.20 | |

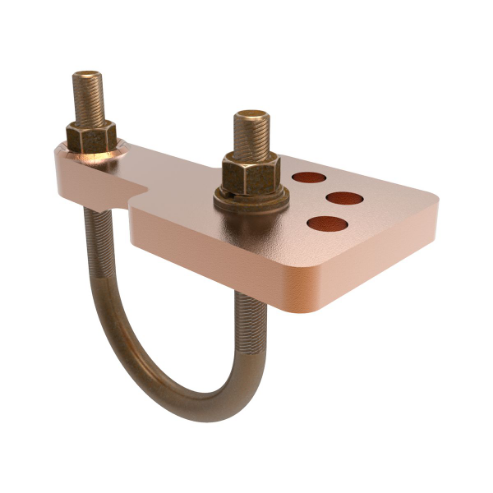

| GAR3904TC | 6 1/2" | 6 1/2" | 3 1/2" | 2 7/8" to 4" | 2 1/2" To 3 1/2" Rod | - | Copper Alloy | 3 | €469.26 | |
| GAR3903TC | 4 3/4" | 4" | 2" | 1 2/3" to 2 3/8" | 1 1/4" To 2" Rod | - | Copper Alloy | 3 | €315.14 | |
| GAR3907TC | - | - | - | - | - | 21 1/2" | Copper Alloy | 3 | €1,511.44 | |
| GAR3906TC | - | - | - | - | - | 1.43" | Copper Alloy | 3 | €1,327.97 |
