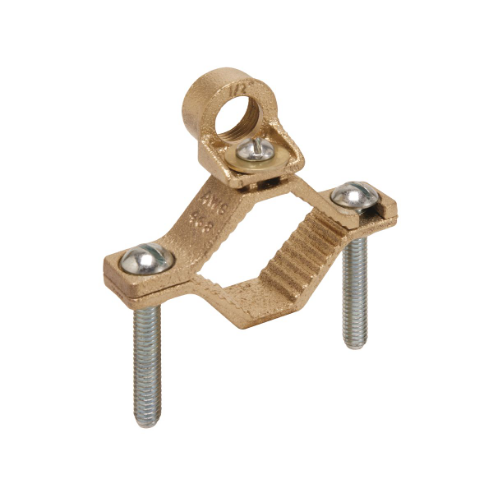

BURNDY C61 Pipe Ground Clamp 8AWG 2.34In
Item: AB6QYFModel: C61Cross Ref: 22C032
7 In Stock
Ships within 2 days via
10.00% off
€16.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Ground Clamp |
| Accessory Type | Ground Clamp |
| Body Material | Bronze Alloy |
| Conductor Size | 6 AWG to 8 AWG |
| For Maximum Ground Conductor Wire Size | 6 AWG |
| For Maximum Pipe Size | 1" |
| For Minimum Ground Conductor Wire Size | 10 AWG |
| For Minimum Pipe Size | 1/2" |
| For Use With | Copper Conductor, Hub, Water Pipe |
| Grounding Wire Size | 10 AWG to 6 AWG, 8 AWG to 6 AWG |
| Grounding Wires Connected To | 1/2" To 1" Pipe |
| Includes | Hub Size 1/2 In, Screws |
| Length | 2.34" |
| Material | Bronze |
| Max. Conductor Size | 6 AWG |
| Min. Conductor Size | 8 AWG |
| Number Of Grounding Wires | 1 |
| Number Of Wires | 1 |
| Overall Height | 2 1/16" |
| Overall Length | 2 11/32" |
| Overall Width | 1 11/32" |
| Terminal Material | Bronze Alloy |
| Torque | 50 lbs.-in. |
| Type | Commercial |
| Type - Grounding Connector | Mechanical |
| Width | 2.07" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.26 |
| Ship length (cm) | 5.94 |
| Ship width (cm) | 3.4 |
| HS code | 8535908060 |
| Country of Origin | IN |
Product Variants
| Model | Body Material | Max. Conductor Size | Min. Conductor Size | Overall Length | Rod Dia. | Type | Number Of Wires | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GG171 | Copper Alloy | 1 22/25" | 1 1/2" | - | 1 5/8" to 1 7/8" | Commercial | 1 | 1 | €414.62 | |
| GG181 | Copper Alloy | 2.38" | 2" | 1 3/8" | - | Commercial | 1 | 1 | €462.13 | |
| GG161 | Copper Alloy | 1 1/2" | 1 1/4" | 1 3/8" | 1 3/8" to 1 1/2" | Commercial | 1 | 1 | €396.43 | |
| C11N | Bronze Alloy | 2 AWG | 10 AWG | - | - | Commercial | 1 | 5 | €48.74 | |
| C11D | Bronze Alloy | 2 AWG | 10 AWG | 2 1/4" | - | Commercial | 1 | 5 | €89.17 | |
| C22 | Bronze Alloy | 2 AWG | 10 AWG | 3 5/8" | 1 1/4" to 2" | Commercial | 1 | 1 | €37.99 | |
| C5 | Bronze Alloy | 2 AWG | 10 AWG | 2 1/4" | - | Commercial | 1 | 5 | €50.59 |
