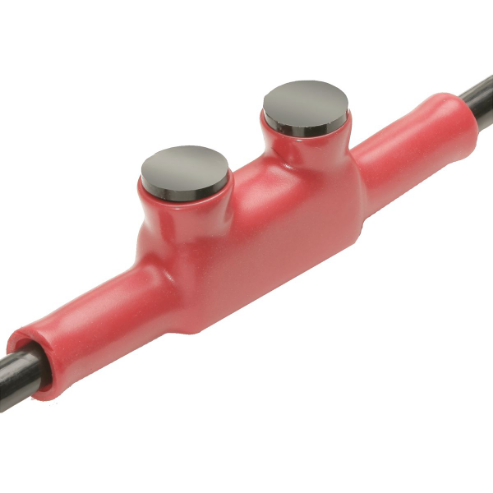

BURNDY BISR4DB Splice/Reducer, 6 AWG Conductor Size, Aluminium/Copper
Item: CF4ENAModel: BISR4DBCross Ref: 22C284
7 In Stock
Ships within 2 days via
10.00% off
€72.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Splice/Reducer |
| Approval | Ul, Csa |
| Approvals | csa.png, ul.png |
| Body Material | 6061 T6 Aluminium |
| Color | Red |
| Conductor Type | Conductor Type |
| Direct Burial | Yes |
| Direct Burial Rated | Yes |
| Eu Rohs Indicator | Eu ROHS Indicator |
| Family Series | Burndy Terminals Series, BISR Series |
| Finish | Unplated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 4 AWG |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Wire Size | 4 AWG, 6 AWG |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 1/8" |
| Housing Material | Plastic |
| Insulation Material | Plastisol |
| Insulation Type | Plastisol |
| Length | 4.3" |
| Length (straight Wireway) | 4.3" |
| Max. Conductor Size | 4 AWG |
| Max. Voltage | 600V AC/DC |
| Maximum Conductor Size | 4 AWG |
| Maximum Voltage | 600V |
| Min. Conductor Size | 6 AWG |
| Minimum Conductor Size | 6 AWG (Aluminum), 6 AWG Stranded (Copper) |
| Minimum Pack Quantity | Minimum Pack Quantity |
| Mounting Hole Size | Not Applicable |
| No. Of Ports | 2 |
| Number Of Ports | 2 |
| Number Of Screws | 2 |
| Physical Attribute - Screw Type | Physical Attribute Screw Type |
| Rating - Minimum Voltage | 600V |
| Rohs Compliant | Yes |
| Screw Dia. | 1/4" |
| Screw Material | Aluminum |
| Sealant Type | De-Ox |
| Series | Bisr Series |
| Size | 4.3" x 0.68" W x 1.39" H |
| Standards - Rohs Compliance Status | Standards-Rohs Compliance Status |
| Strip Length | 7/8" |
| Stud Size | 1/8" |
| Tap Shape | T |
| Type | In-Line |
| Voltage - Maximum | Voltage-Maximum |
| Voltage Rating | 600V |
| Wire Range | 6 AWG to 4 AWG |
| Wire Size | 4 AWG, 5 AWG, 6 AWG |
| Wire Size Range | 6 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.53 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 1.52 |
| Country of Origin | US |
Product Variants
| Model | Stud Size | Body Material | Min. Conductor Size | Max. Conductor Size | Type | Size | Screw Size | Hex Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BISR250DB | 5/16" | 6061 T6 Aluminium | 4/0 AWG | 250 kcmil | BISR | 6.7" x 1.18" W x 2.17" H | 5/8" | 5/16" | €141.41 | |
| BISR3/0DB | 3/16" | 6061 T6 Aluminium | 1/0 AWG | 3/0 AWG | BISR | 6.25" x 0.99" W x 1.96" H | 7/16" | 3/16" | €138.51 | |
| BISR1DB | 5/16" | 6061 T6 Aluminium | 2 AWG | 1 AWG | BISR | 6.3" x 0.88" W x 1.75" H | 5/16" | 5/32" | €101.80 |
