BUNTING BEARINGS DPEF101420 Flange Sleeve Bearing, 5/8 Inch I.D., 7/8 Inch O.D., 1 1/4 Inch Length, Bronze
Item: CD4WCNModel: DPEF101420Cross Ref: 12D899
7 In Stock
5/8"
7/8"
1 1/4"
Ships within 2 days via
13.00% off
€16.30 /pkg. of 3
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sleeve Bearing |
| Application | Aerospace, Electrical Equipment, Food Processing, Furnaces And Ovens, Glass Manufacturing, Pharmaceuticals, Vacuum Processes |
| Bore Dia. | 5/8" |
| Bronze Material Type | Sintered Bronze |
| Color | Bronze |
| Flange Dia. | 1.125" |
| Flange Thickness | 1/8" |
| For Environment | Vacuum |
| Length Tolerance | -0.005" to +0.005" |
| Material Grade | Grade Sae 841 |
| Max. Pv | 40000 lbs.-ft./sq. in-min. |
| Max. Temp. | 700°F |
| Min. Temp. | -50°F |
| Outside Dia. | 7/8" |
| Overall Length | 1 1/4" |
| Plain Bearing Material | Bronze |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.23 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.23 |
| Country of Origin | US |
Product Details:
- The high-performance Dri-Plane sintered bearings are ideal for application in electrical equipment, furnaces and ovens, and glass manufacturing processes. They are made using a proprietary metal compound that does not require lubrication and can work efficiently at high temperatures (up to 700 degrees Fahrenheit).
Product Variants
| Model | Bore Dia. | Flange Thickness | Flange Dia. | Length Tolerance | Max. Pv | Material | Bronze Material Type | For Environment | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

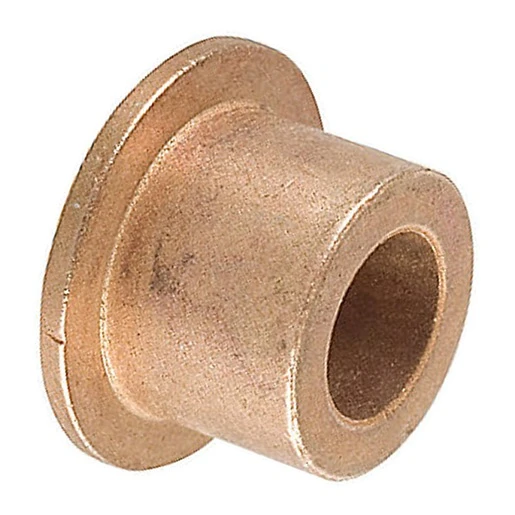

| DPEF030504 | 0.19" | 0.063" | - | - | - | Dri-Plane | - | - | 1 | €1.19 | |
| DPEF030508 | 3/16" | 0.062" | 0.437" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €3.23 | |
| DPEF040604 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-sq. in. | - | Sintered Bronze | Vacuum | 3 | €2.83 | |
| DPEF040606 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €4.45 | |
| DPEF040608 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €3.95 | |
| DPEF040612 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €5.62 | |
| DPEF050706 | 5/16" | 0.062" | 0.562" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €4.05 |
