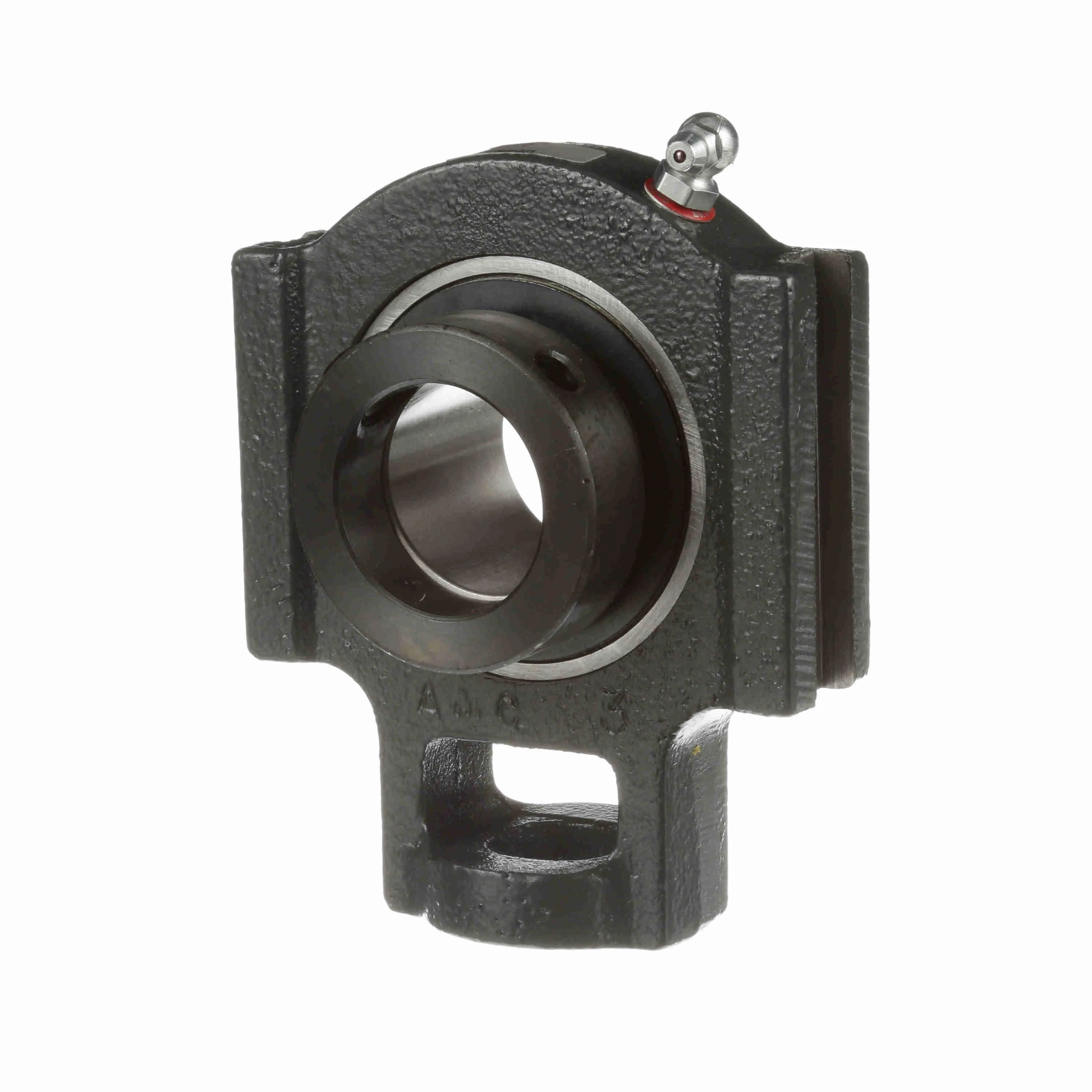

BROWNING VTWE-223 767386 Mounted Cast Iron Wide Slot Take Up Ball Bearing
Get it by Tuesday, Aug 18
€159.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Take Up |
| Bore Dia. | 25 mm |
| Bore Shape | Straight |
| Bore Size - Inch | 1.438" |
| Centerline To Front Face | 1.281" |
| Collar Outside Dia. | 2.188" |
| Compatible Frame Number | 3SF31, 6SF31, 9SF3112SF31, 18SF31 |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Housing Bolt Through Hole | 7/8" |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1 3/4" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert No. | VE-223 |
| Inside Dia. | 1 7/16" |
| Load Capacity | 5782 Lbs. Dynamic, 3493 Lbs. Static |
| Locking Device | Eccentric |
| Max. Operating Temp. | 200°F |
| Max. Speed | 4000 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Replacement Bearing | VS-223 |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VTWE Series |
| Shaft Dia. | 1 7/16" |
| Slot Spacing | 3.5 |
| Slot Width | 0.5313" |
| Suitable For Use With | 3SF23, 6SF23, 9SF23, 12SF23 Frames |
| Type Of Bearing | Ball Bearing |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 4.45 |
| Country of Origin | MX |
