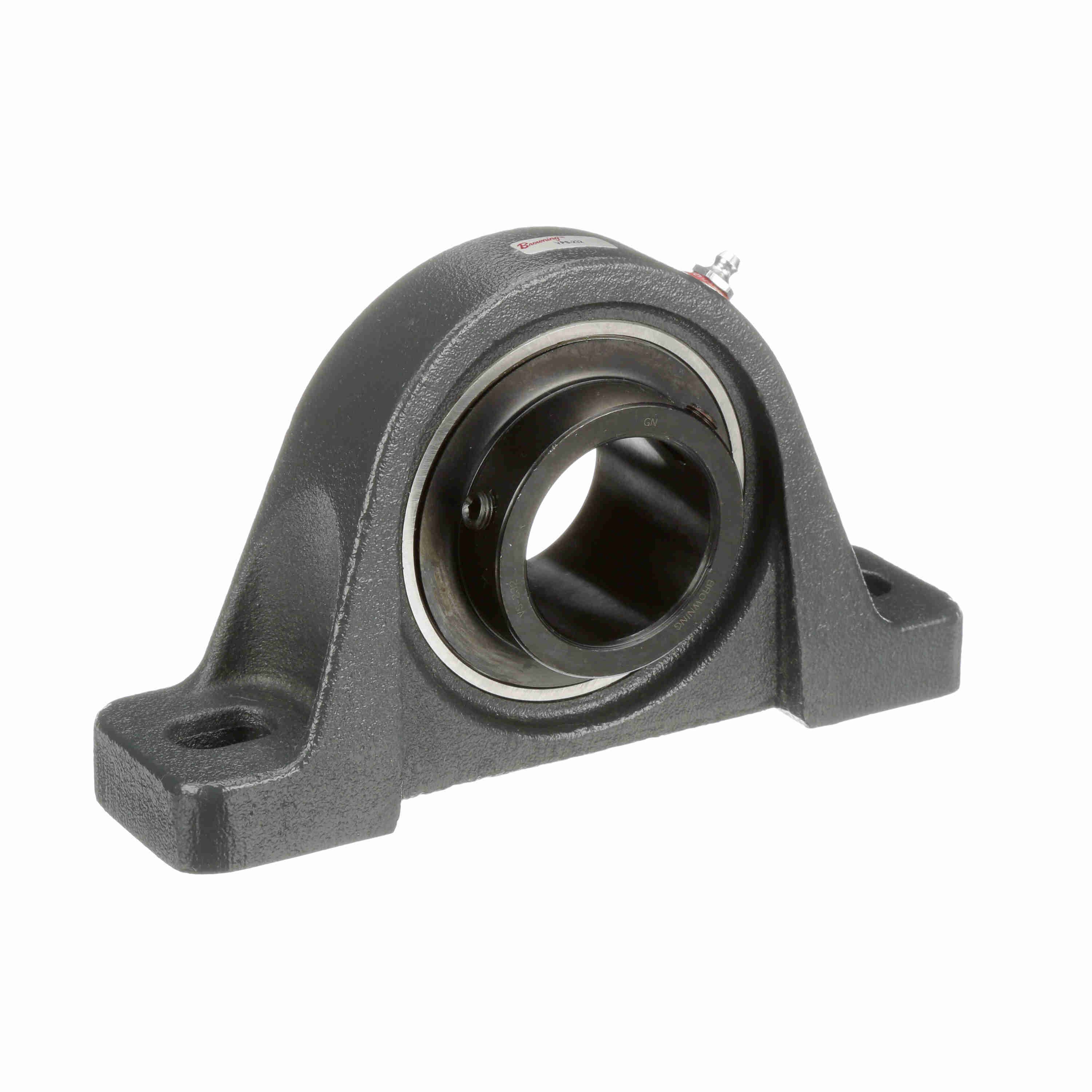

BROWNING VPS-232 767425 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Tuesday, Aug 18
€233.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Application | Browning Standard |
| Base Width | 2.313" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 5/8" |
| Bore Shape | Straight |
| Bore Type | Round, Straight |
| Centerline To Front Face | 1.313" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Foot Height | 22/25" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 2.188" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 2.719" |
| Length | 8.813" |
| Locking Device | Set Screw |
| Max. Bolt | 7 11/25" |
| Max. Bolt Center | 7.438" |
| Max. Speed | 2500 RPM |
| Min. Bolt Center | 6 11/25" |
| Misalignment Angle | -1.5° to +1.5° |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 6601 lbs. |
| Type Of Bearing | Ball Bearing |
| Width | 5.4 |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 12.62 |
| Ship length (cm) | 22.38 |
| Ship width (cm) | 13.72 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bolt Size | Base Width | Bore Dia. | Overall Height | Duty Type | Application | Bore Type | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPS-223 | 1/2" | 1 3/4" | 1 7/16" | 3.688" | Standard Duty | Browning Standard | Round | 3493 lbf. | €153.83 | |
 |
VPS-220 | 1/2" | 1 3/4" | 1 1/4" | 3.688" | Standard Duty | Browning Standard | Round | 3493 lbf. | €124.01 | |
 |
VPS-231 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €182.34 | |
 |
VPS-228 | 1/2" | 2" | 1 3/4" | - | Standard Duty | Browning Standard | Round | 5139 lbf. | €167.96 | |
 |
VPS-239 | 5/8" | 2 3/8" | 2 7/16" | 5 9/16" | Standard Duty | Browning Standard | Round | 8150 lbf. | €273.20 | |
 |
VPS-323 | - | - | - | - | Medium Duty | Browning - Standard | Round | - | €164.26 | |
 |
VPS-222 | 1/2" | 1 3/4" | 1 3/8" | 3.688" | Standard Duty | Browning Standard | Round | 3493 lbf. | €124.01 |
