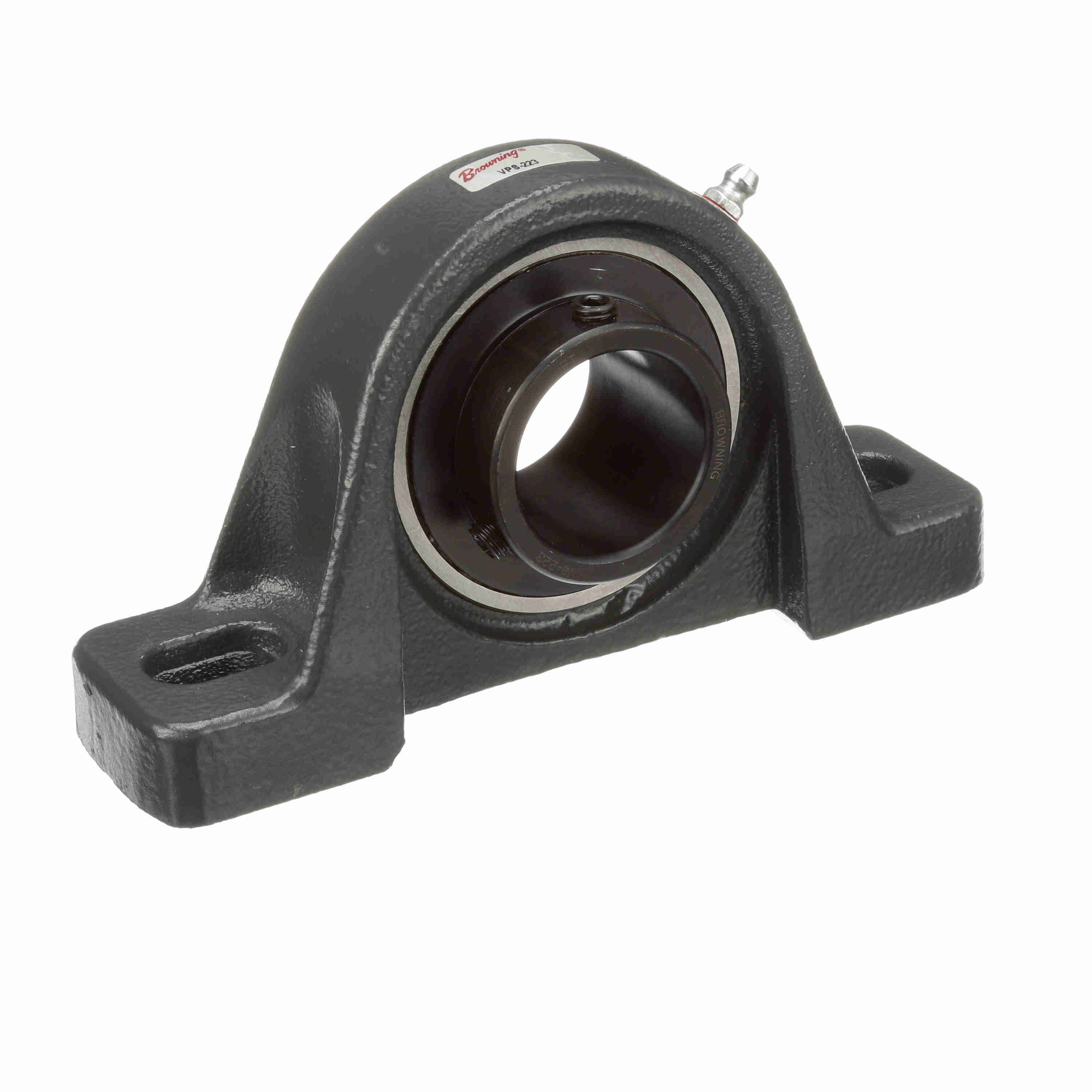

BROWNING VPS-223 767477 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Monday, Aug 17
€153.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 1 7/8" |
| Base Width | 1 3/4" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 1/2" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Bore Size - Inch | 1.438" |
| Bore Type | Round |
| Centerline To Front Face | 1" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 5782 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 18/25" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 1.688" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 1.859" |
| Length | 6 3/4" |
| Locking Device | Set Screw |
| Max. Bolt | 5 11/25" |
| Max. Bolt Center | 5.438" |
| Max. Speed | 4000 RPM |
| Min. Bolt Center | 4.563" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 11/16" , 3.688" |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPS Series |
| Shaft Dia. | 1 7/16" |
| Static Radial Load Capacity | 3493 lbf. |
| Width | 4.5 |
Shipping Info:
| Ship weight (kg) | 1.52 |
| Ship height (cm) | 9.37 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bolt Size | Base Width | Bore Dia. | Overall Height | Duty Type | Application | Bore Type | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPS-220 | 1/2" | 1 3/4" | 1 1/4" | 3.688" | Standard Duty | Browning Standard | Round | 3493 lbf. | €124.01 | |
 |
VPS-231 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €182.34 | |
 |
VPS-228 | 1/2" | 2" | 1 3/4" | - | Standard Duty | Browning Standard | Round | 5139 lbf. | €167.96 | |
 |
VPS-232 | 5/8" | 2.313" | - | - | Standard Duty | Browning Standard | Round, Straight | 6601 lbs. | €233.86 | |
 |
VPS-239 | 5/8" | 2 3/8" | 2 7/16" | 5 9/16" | Standard Duty | Browning Standard | Round | 8150 lbf. | €273.20 | |
 |
VPS-323 | - | - | - | - | Medium Duty | Browning - Standard | Round | - | €164.26 | |
 |
VPS-222 | 1/2" | 1 3/4" | 1 3/8" | 3.688" | Standard Duty | Browning Standard | Round | 3493 lbf. | €124.01 |
