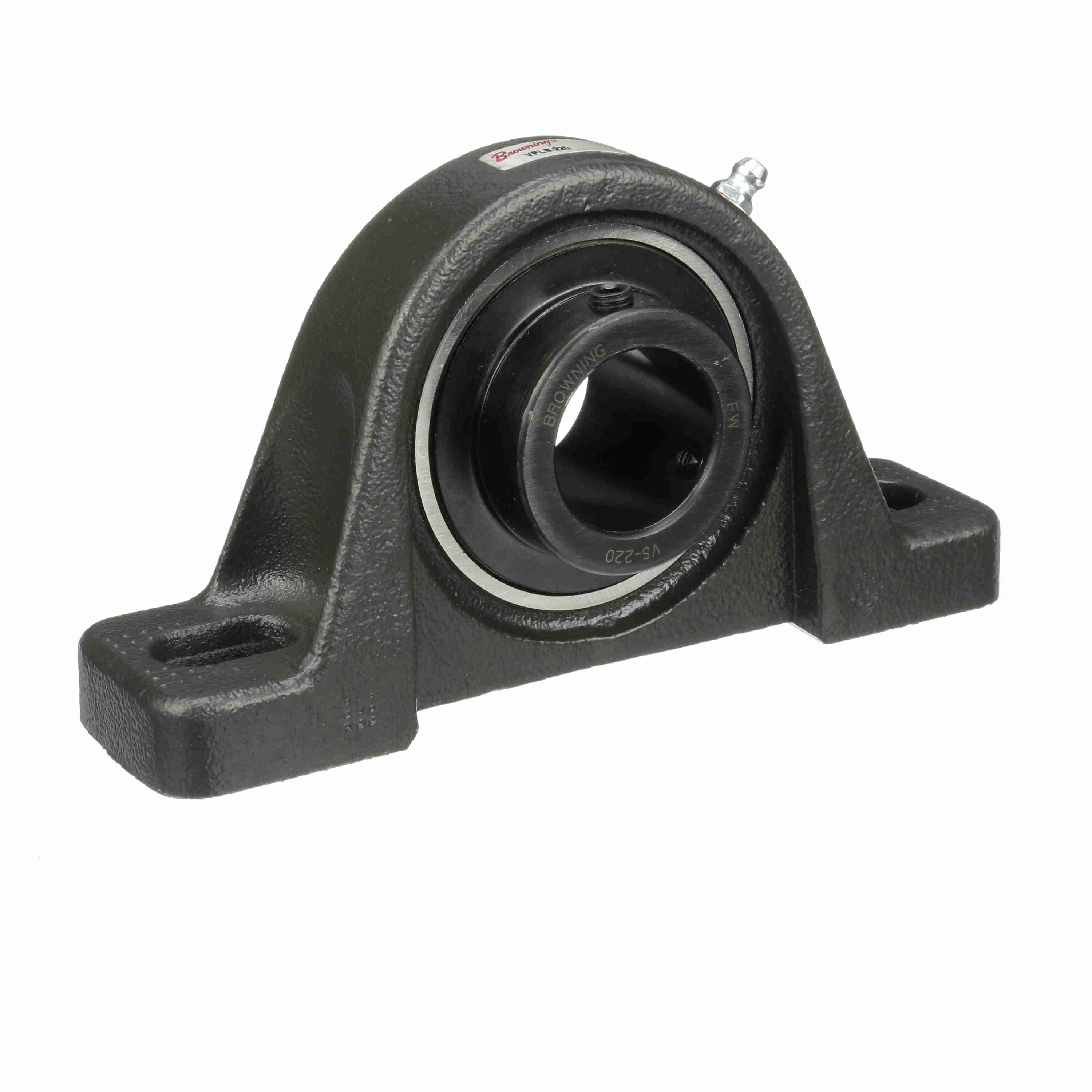

BROWNING VPLS-220 767458 Pillow Block Bearing, 2 Bolt, 1-1/4 Inch Bore, 1.811 Inch Base to Center Height, Set Screw Mount, Cast Iron
Get it by Wednesday, Aug 19
€124.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Application | Browning Standard |
| Base Width | 1 3/4" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 1/2" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Bore Type | Round, Straight |
| Centerline To Front Face | 1" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Foot Height | 0.66" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 1.688" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 1.844" |
| Length | 6 3/4" |
| Locking Device | Set Screw |
| Max. Bolt | 5 11/25" |
| Max. Bolt Center | 5.438" |
| Max. Speed | 4000 RPM |
| Min. Bolt Center | 4 14/25" |
| Misalignment Angle | -1.5° to +1.5° |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 3493 lbs. |
| Type Of Bearing | Ball Bearing |
| Width | 4.6 |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
