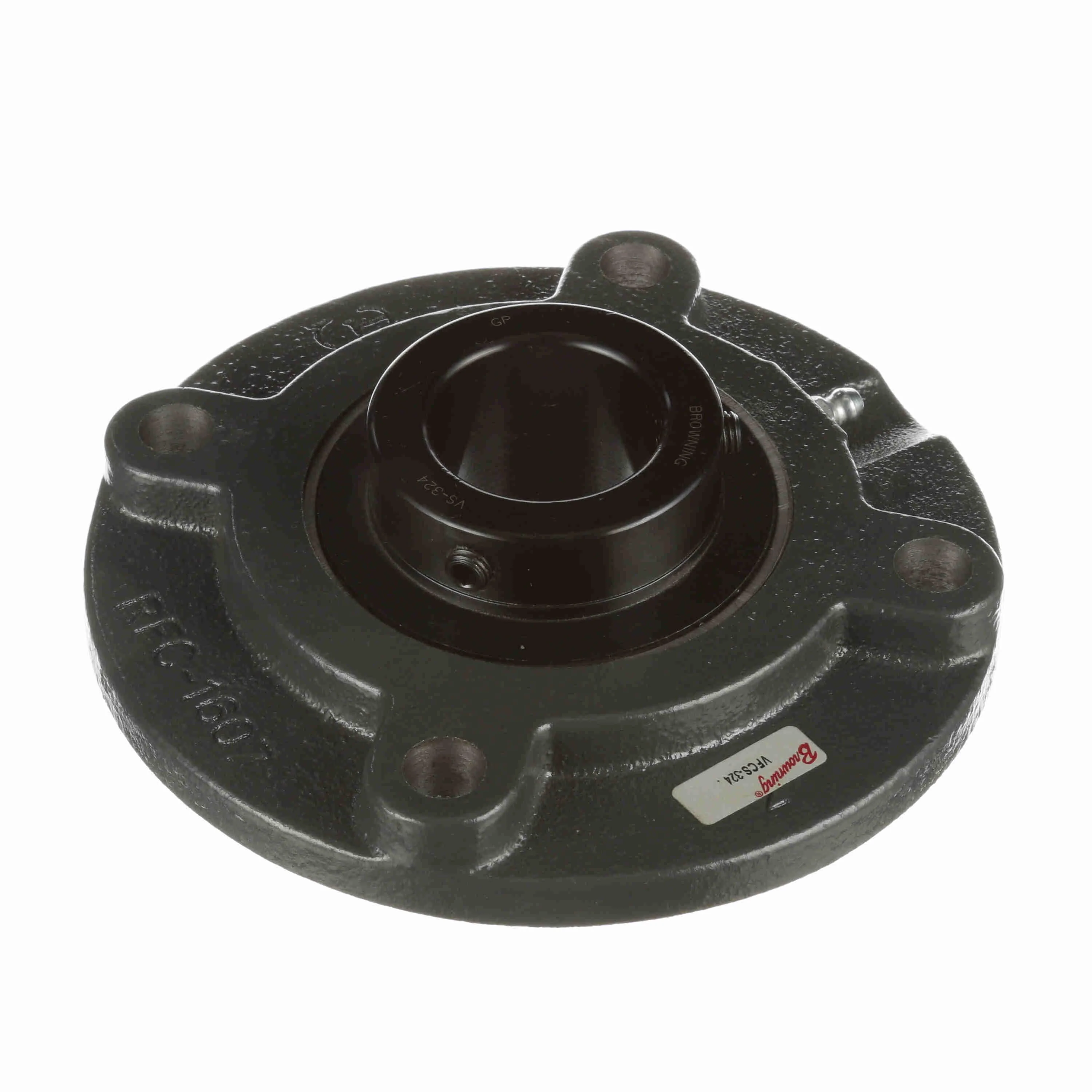

BROWNING VFCS-324 767500 Ball Bearing Unit, 6-1/8 in OAL/Dia, 1-1/2 in Bore Dia, 4-Bolt
Get it by Friday, Aug 14
€184.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Ball Bearing |
| Bolt Circle Dia. | 5 1/8" |
| Bolt Size | 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.188" |
| Duty Series | Medium |
| Duty Type | Medium Duty |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Mounting Type | 4 Bolt |
| Foot Height | 0.406" |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Type | Flange, Piloted |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 2.297" |
| Length Through Bore | 1 1/2" |
| Load Capacity | 7901 Lbs. Dynamic, 5139 Lbs. Static |
| Locking Device | Setscrew Locking |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Depth | 1 15/16" |
| Pilot Configuration | No Pilot |
| Pilot Dia. | 4 1/4" |
| Product Type | Flange-Mount Ball Bearing Units |
| Retainer Type | Ball Riding Retainer |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact With Flinger |
| Shaft Dia. | 1 1/2" |
| Static Radial Load Capacity | 5139 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 4.92 |
| Ship length (cm) | 15.56 |
Product Variants
| Product | Model | Bore Dia. | Pilot Dia. | Static Radial Load Capacity | Bearing Type | Locking Device | Duty Type | Overall Width | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VFCS-223 | 1 7/16" | 3 3/8" | 3493 lbf. | Flange Cartridge | Set Screw | Standard Duty | 5 1/4" | 1 7/16" | €124.86 | |
 |
VFCS-231 | 1 15/16" | 4 1/4" | 5216 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 1/8" | 1 15/16" | €216.24 | |
 |
VFCS-332 | - | 4 1/2" | 6601 lbs. | Ball Bearing | Setscrew Locking | Medium Duty | 6 3/8" | - | €260.57 | |
 |
VFCS-220 | - | 3 3/8" | 3493 lbs. | Ball Bearing | Setscrew Locking | - | - | - | €124.86 | |
 |
VFCS-236 | 2 1/4" | 5" | 8150 lbf. | Flange Cartridge | Set Screw | Standard Duty | 7 1/8" | 2 1/4" | €306.92 | |
 |
VFCS-235 | 2 3/16" | 4 1/2" | 6601 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 3/8" | 2 3/16" | €231.96 | |
 |
VFCS-226 | 1 5/8" | 4 1/4" | 5139 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 1/8" | 1 5/8" | €174.38 |
