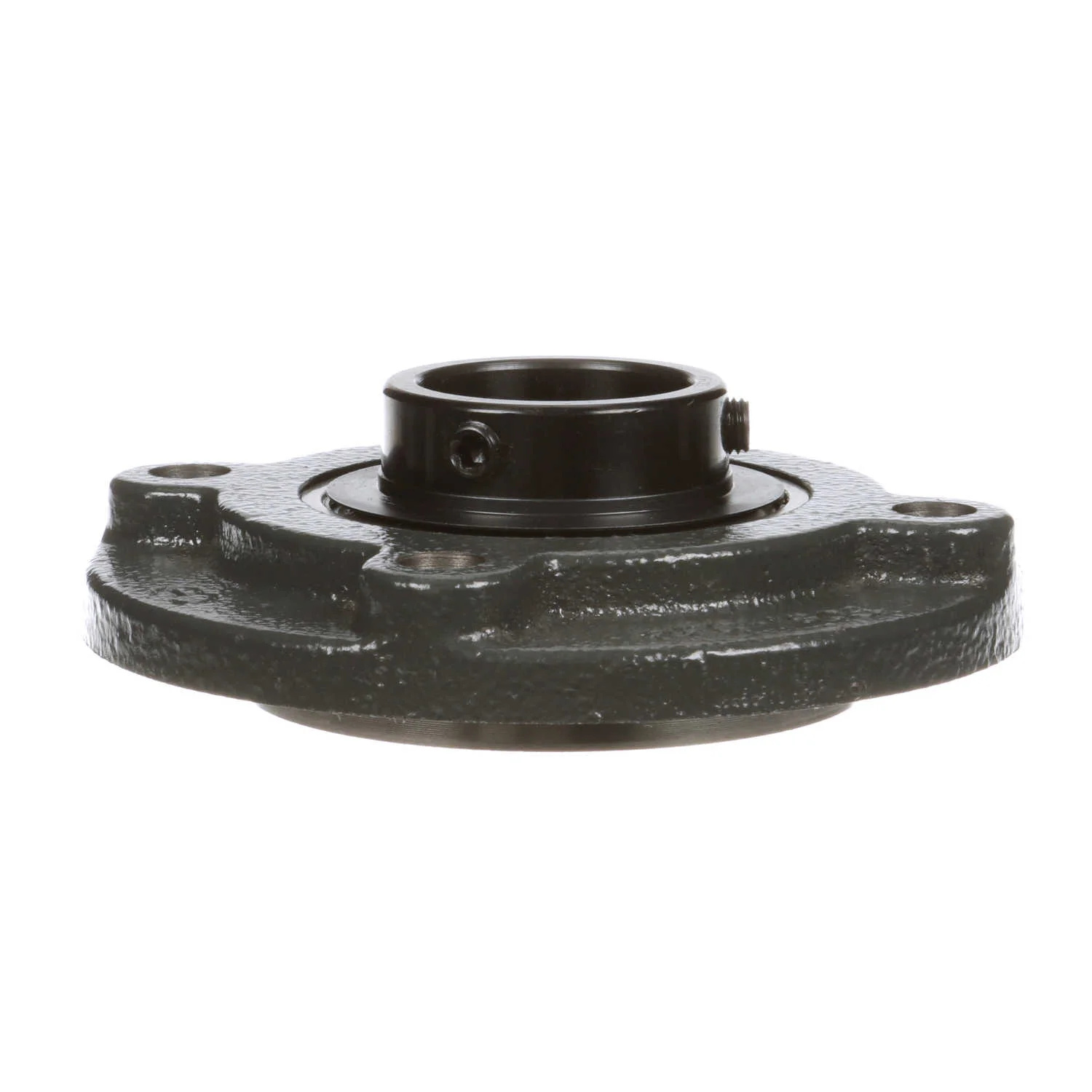

BROWNING VFCS-223 767154 Ball Bearing Unit, 5 in OAL/Dia, 1-7/16 in Bore Dia, 4-Bolt, 4000 rpm Max Speed, Non-Expansion Normal Duty Round/Straight Bore, Setscrew
Get it by Monday, Aug 24
€124.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Type | Flange Cartridge |
| Bore Dia. | 1 7/16" |
| Duty Type | Standard Duty |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 4000 RPM |
| Operating Temp. Range | -20°F to +200°F |
| Overall Height | 1 11/16" |
| Overall Width | 5 1/4" |
| Pilot Dia. | 3 3/8" |
| Replacement Bearing | VS-223 |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 7/16" |
| Static Radial Load Capacity | 3493 lbf. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 12.7 |
Product Variants
| Product | Model | Bore Dia. | Pilot Dia. | Static Radial Load Capacity | Bearing Type | Locking Device | Duty Type | Overall Width | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VFCS-231 | 1 15/16" | 4 1/4" | 5216 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 1/8" | 1 15/16" | €216.24 | |
 |
VFCS-332 | - | 4 1/2" | 6601 lbs. | Ball Bearing | Setscrew Locking | Medium Duty | 6 3/8" | - | €260.57 | |
 |
VFCS-220 | - | 3 3/8" | 3493 lbs. | Ball Bearing | Setscrew Locking | - | - | - | €124.86 | |
 |
VFCS-236 | 2 1/4" | 5" | 8150 lbf. | Flange Cartridge | Set Screw | Standard Duty | 7 1/8" | 2 1/4" | €306.92 | |
 |
VFCS-235 | 2 3/16" | 4 1/2" | 6601 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 3/8" | 2 3/16" | €231.96 | |
 |
VFCS-226 | 1 5/8" | 4 1/4" | 5139 lbf. | Flange Cartridge | Set Screw | Standard Duty | 6 1/8" | 1 5/8" | €174.38 | |
 |
VFCS-239 | - | 5" | 8150 lbs. | Ball Bearing | Setscrew Locking | Standard Duty | - | - | €292.31 |
