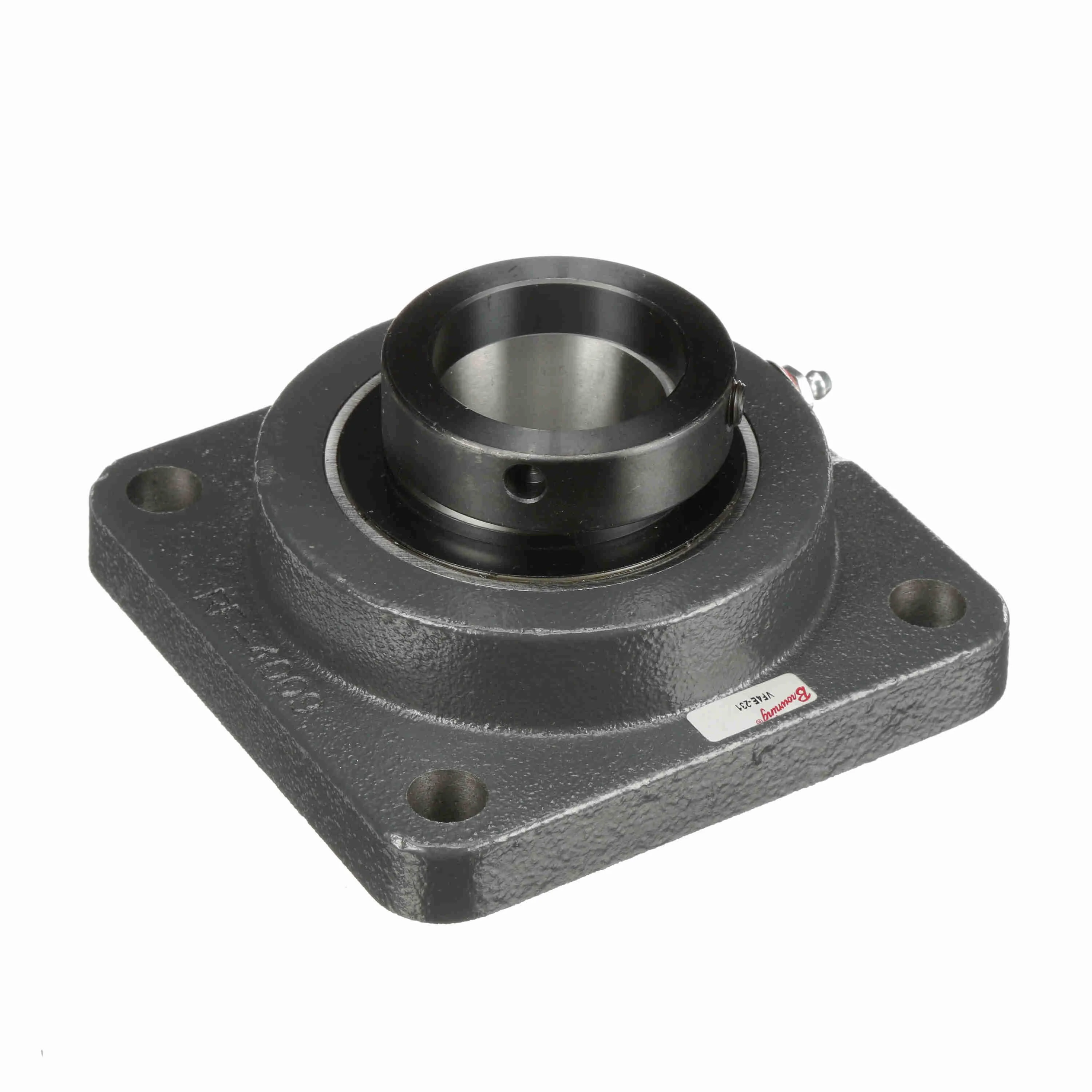

BROWNING VF4E-231 767687 Ball Bearing, 5-5/8 in OAL/Dia, 1-15/16 in Bore Dia, Gray Painted, Steel, Eccentric Collar, Normal Duty Non-Expansion Round/Straight Bore
Get it by Monday, Aug 17
€189.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 4 3/8" |
| Bolt Size | 9/16" |
| Bore Dia. | 1 15/16" |
| Bore Size - Inch | 1.938" |
| Centerline To Front Face | 1 1/2" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 7889 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.719" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 5 5/8" |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Inside Dia. | 1.94" |
| Length Through Bore | 2.47" |
| Locking Device | Eccentric |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | No Pilot |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 5216 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 3.29 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 14.29 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Dynamic Radial Load Capacity | Static Radial Load Capacity | Length Through Bore | Bolt Size | Foot Height | Duty Series | Centerline To Front Face | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF4E-223 | 1 7/16" | 5782 lbs. | 3493 lbs. | 2.016" | 1/2" | 0.66" | Normal | 1.266" | €124.01 | |
 |
VF4E-239 | 2 7/16" | 11789 lbs. | 8150 lbs. | 3.06" | 5/8" | 0.813" | Normal | 1.844" | €273.20 | |
 |
VF4E-232 | - | 9752 lbs. | 6601 lbs. | 2.813" | 5/8" | 0.781" | Normal | 1.719" | €224.85 | |
 |
VF4E-227 | - | 7901 lbs. | 5139 lbs. | 2.31" | 9/16" | 0.688" | Normal | 1 3/8" | €163.37 | |
 |
VF4E-220 | 1 1/4" | 5782 lbs. | 3493 lbs. | 2.0156" | 1/2" | 0.656" | Normal | 1.266" | €124.01 | |
 |
VF4E-135 | 2 3/16" | 9752 lbs. | 6601 lbs. | 1.98" | 5/8" | 0.813" | Intermediate | 1.438" | €190.95 | |
 |
VF4E-235 | 2 3/16" | 9752 lbf. | 6601 lbf. | - | - | - | - | - | €224.85 |
